A WILSON ELECTRONICS BRAND
Use our
Use our
weBoost App to guide you through the installation.
weBoost App to guide you through the installation.
NEED HELP?

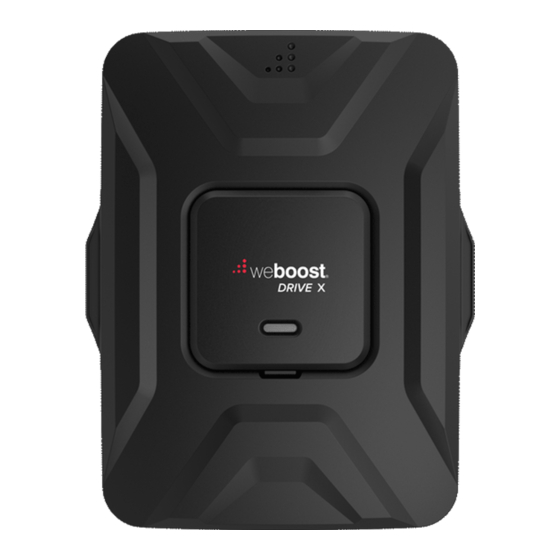

DRIVE X
Vehicle Signal Booster Kit
Installation Guide
Installation Guide
See inside page for more details.
See inside page for more details.
support.weboost.com
1-866-294-1660
Advertisement
Table of Contents
Related Manuals for Wilson Electronics weboost Drive X
Summary of Contents for Wilson Electronics weboost Drive X
- Page 1 A WILSON ELECTRONICS BRAND DRIVE X Vehicle Signal Booster Kit Installation Guide Installation Guide Use our Use our weBoost App to guide you through the installation. weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you Antenna positioning guide Before and after cell through installation...
-
Page 3: Table Of Contents
______ Index Package Contents Mount Outside Magnetic Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Outside Antenna Cable To Booster STEP 3: Connect Inside Antenna Cable To Booster STEP 4: Connect Power Supply To Booster STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifications... - Page 4 ________ Package Contents Outside Inside Power Booster Antenna Antenna Supply & Bracket Optional: Adhesive disk for aluminum vehicles VEHICLE SIGNAL BOOSTER DRIVE X...
-
Page 5: Mount Outside Magnetic Antenna
______ Step 1: Mount Outside Magnetic Antenna Identify a location on the top of your vehicle that is: • Near the center of the roof • At least 12 inches away from any other antennas and from any windows (including sunroofs) Cle an the surface where you will place the outside antenna. - Page 6 ______ (STEP 1 cont.) See options below on how cable can be routed with different vehicles. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door. NOTE: When going through car wash, remember to remove your antenna.
-
Page 7: Step 2: Mount Inside Antenna
______ Step 2: Mount Inside Antenna Identify a place to mount the in-vehicle antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cell phone device will be used. -
Page 8: Connect Outside Antenna Cable To Booster
______ Step 3: Connect Outside Antenna Cable to Booster Connect the cable from the outside antenna to the outside antenna port on the booster. NOTE: Bracket can be used to fasten booster in a specific location if desired. from Outside Antenna VEHICLE SIGNAL BOOSTER DRIVE X... -
Page 9: Step 4: Connect Inside Antenna Cable To Booster
______ Step 4: Connect Inside Antenna Cable to Booster Connect the cable from the inside antenna to the inside antenna port on the booster. from Inside Antenna DRIVE X VEHICLE SIGNAL BOOSTER... -
Page 10: Step 5: Connect Power Supply To Booster
______ Step 5: Connect Power Supply To Booster Connect the power supply cord to the end of the booster, labeled “Power”. NOTE: Do NOT connect the power to the signal booster until you have connected both the inside and outside antennas. Power Supply Plug the power adapter into vehicle’s 12V DC power supply. -
Page 11: Light Patterns
______ Light Patterns Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. -
Page 12: Troubleshooting
______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. Unplug the booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before. - Page 13 ______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Drive X. This radio transmitter 4726A-460021 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated.
-
Page 14: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside antennas must have at least 1.5’ separation distance from all active users. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. -
Page 15: Specifications
______ Specifications Drive X Product Number U471010 Model Number 460021 FCC ID: PWO460021 IC ID: 4726A-460021 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz Maximum Power 700 MHz 700 MHz 800 MHz 1700 MHz... -
Page 16: Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. - Page 17 Notes support.weboost.com 1-866-294-1660 NEED HELP? DRIVE X VEHICLE SIGNAL BOOSTER...
- Page 18 Notes support.weboost.com 1-866-294-1660 NEED HELP? VEHICLE SIGNAL BOOSTER DRIVE X...
- Page 19 Notes support.weboost.com 1-866-294-1660 NEED HELP? DRIVE X VEHICLE SIGNAL BOOSTER...
- Page 20 3301 East Deseret Drive, St. George, UT 1.866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000463_Rev01_03.07.22...
