- Page 1 A WILSON ELECTRONICS BRAND Home Complete Cell Signal Booster Home Complete Installation Guide Use our weBoost App to guide you through the installation. See inside page for more details. support.weboost.com 1-866-294-1660 NEED HELP?
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you Antenna positioning guide Before and after cell through installation...
- Page 3 ______ Index Package Contents Preparation Inside Antenna & Booster Placement STEP 1: Mount & Point Outside Antenna Toward Nearest STEP 2: Cell Tower Route & Connect Outside Antenna To Booster STEP 3: Route & Connect Inside Antenna To Booster STEP 4: Power Up The Booster &...

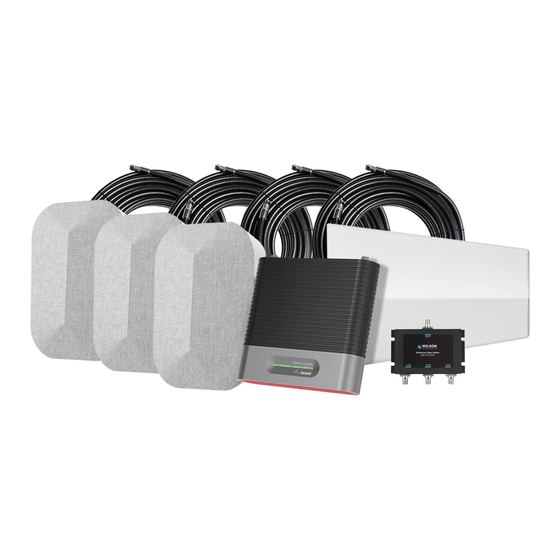

- Page 4 ______ Package Contents Inside Outside 75’ & 60’ Power Home Antenna Antenna Cables Supply Complete (314440) (314445) (951160), (951175) (850030) Outside Antenna Wall Mount Brackets Cable Mounting Mounting Bracket w/Command Strips Clips Qty. 15 CELL PHONE SIGNAL BOOSTER HOME COMPLETE...
- Page 5 ______ Preparation You Will Need (tools not included) Make sure the following materials are prepared and ready for your installation. 1 to 2 hours 1 Person (2 people to make antenna calibration easier) Ladder Drill (if routing cable through wall) 1”...
- Page 6 ______ Step 1: Inside Antenna & Booster Placement Place the inside antenna where you need the greatest signal boost and place booster in your desired location at least 24” away from inside antenna. NOTE: Do not connect booster to power until the system is fully installed. TIP: The cable from the inside antenna can be routed into the ceiling and connected to the coax cable out-of-sight for a better look.
- Page 7 ______ (STEP 1 cont.) The inside antenna can be mounted horizontally, vertically or on a flat surface. Command strips can be used to secure mounting bracket. Inside Antenna Mounting Options Mounted Mounted Horizontally Vertically Mounting Bracket Command Strips Command Mounting Strips Bracket Or use the kickstand...
- Page 8 ______ Step 2: Mount & Point Outside Antenna Toward Nearest Cell Tower Pole mounting and wall mounting options are included. The pole mounting option is preferred because it will be easier to adjust to the direction of the cell tower. Attach the mount to the outside antenna and use the bracket clamp to attach the antenna to a pole or exhaust pipe.
- Page 9 ______ (STEP 2 cont.) Point the outside antenna toward the nearest cell phone tower. To find the nearest tower, use the weBoost app. This is the most critical step of the installation process because it will determine the overall performance of the booster’s system.
- Page 10 ______ (STEP 2 cont.) If there’s not a pole to easily mount the outside antenna, this may be mounted on the fascia by fastening the bracket as shown below. TIP: Make sure to do the optimization test on Step 5 to find the best side of your house before you mount this on the fascia.
- Page 11 ______ Step 3: Route & Connect Outside Antenna To Booster Connect the black 75 ft. coax cable to outside antenna and route cable into the home. All connections should be hand tightened only. Cable Mounting Clips provided connection Outside Antenna 75’...
- Page 12 ______ Step 4: Route & Connect Inside Antenna To Booster Connect the black 60 ft. coax cable to inside antenna and route to the Home Complete Booster and connect to the port labeled ‘INSIDE ANTENNA’. Inside Antenna Cable Mounting Clips provided connection 60’...
- Page 13 ______ Step 5: Power Up The Booster & Optimize The System Plug the power supply into wall outlet then connect to end of booster labeled “ ” . NOTE: We strongly recommend using a power strip with surge protection. to power be wall mounted Command...
- Page 14 ______ (STEP 5 cont.) After powering up your system, you are now ready to optimize your system. Rotate the outside antenna in 1/3 turn increments, after each turn, unplug and reconnect the booster to power while observing the signal level on your cell phone from the inside antenna’s projected area.
-
Page 15: Measuring Booster Performance
______ Measuring Booster Performance How To Get Signal Strength As A Number iPhone® iOS 11 and later no longer displays the decibel (dBm) reading in ‘Field Test Mode’. Tip: Using the signal bars and performing data speed tests on your cell phone can assist you in finding the strongest signal direction as well as placing calls in different locations. - Page 16 ______ (MEASURING BOOSTER PERFORMANCE cont.) Signal Strength without Booster Note here: Signal Strength with Booster Note here: Compare Results Having an accurate measurement of signal strength in decibels (dBm) is crucial when installing your system. Decibels accurately measure the signal strength you are receiving. EXCELLENT GOOD FAIR...
-
Page 17: Light Patterns
______ Light Patterns Booster lights Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Green & Red Band 4 Band 5 Band 12/13/17 Band 2/25 Band has reduced gain. This indicates that one or more of the booster bands has reduced gain due to a feedback loop condition called oscillation. -
Page 18: Troubleshooting
______ Troubleshooting IF YOU ARE HAPPY WITH THE COVERAGE, THESE LIGHT ISSUES DON’T HAVE TO BE RESOLVED. YOUR CARRIER’S BAND HAS NOT BEEN AFFECTED. FIXING ANY RED LIGHT ISSUES This involves Solid Red & Blinking Green/Red lights. Verify outside and inside antenna face away from each other. Unplug and replug in power supply. -
Page 19: Safety Guidelines
______ Safety Guidelines To uphold compliance with network protection standards, all active cellular devices must maintain at least six feet of separation distance from Inside Panel and Dome antennas and at least four feet of separation distance from desktop Antenna. Use only the power supply provided in this package. -
Page 20: Antenna Kit Options
______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Home Complete Booster. This radio transmitter 4726A-460060 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. -
Page 21: Specifications
______ Specifications Home Complete ™ Model Number 460060 FCC ID PWO460060 IC ID 4726A-460060 Connectors F-Female Antenna Impedance 75 Ohms Frequency 698-716 MHz, 729-746 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz Power output for single cell 700 MHz 700 MHz 800 MHz 1700 MHz... - Page 22 2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost.
- Page 23 Notes support.weboost.com 1-866-294-1660 NEED HELP? HOME COMPLETE CELL PHONE SIGNAL BOOSTER...
- Page 24 3301 East Deseret Drive, St. George, UT 1.866.294.1660 www.weboost.com support.weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000480_Rev01_01.21.22...
