- Page 1 A WILSON ELECTRONICS BRAND DRIVE X OTR Cellular Booster For Trucks Installation Guide Use our weBoost App to guide you through the installation. See inside page for more details. support.weboost.com 1-866-294-1660 NEED HELP?
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you Antenna positioning guide Before and after cell through installation...
- Page 3 ______ Index Package Contents Select Mounting Location & Assemble the Antenna STEP 1: Mount Outside Antenna STEP 2: Mount Inside Antenna STEP 3: Connect Coax Cables To Booster STEP 4: Connect Power Supply To Booster STEP 5: Light Patterns Troubleshooting Safety Guidelines Specifications Warranty...

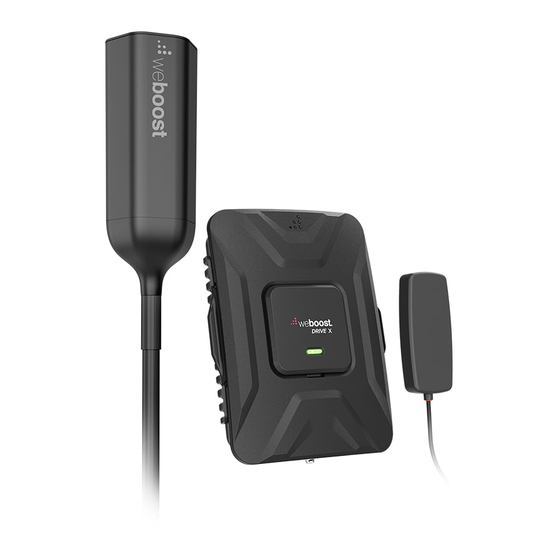

- Page 4 ________ Package Contents Inside Mast Extensions Power Booster Outside & Bracket Antenna Antenna & Side Exit Adapter Supply (311229) (314401) (991113, 991129, (859913) 990061) 3- Way Antenna Antenna Thread Lock Cable Mount Spring Packets Adapter (901104) (901206) VEHICLE SIGNAL BOOSTER DRIVE X OTR...
- Page 5 ______ Step 1: Select Mounting Location & Assemble The Antenna Select mounting location on vehicle. The antenna can be mounted in any CB mount or antenna mounting point on the vehicle. For best performance mount the antenna above the metal cab (it does not need to be above cab wind deflector). Depending on the type of truck, there may be built-in antenna mounting points.
- Page 6 ______ (STEP 1 cont.) Once you have determined the best location for the antenna cable from antenna and have determined if mast extensions are needed, insert cable through mast. Mast Extension NOTE: Mast Extensions may not be needed depending on your mounting point.
- Page 7 ______ (STEP 1 cont.) 13 in. 13 in. 13 in. Mast Mast Mast 18 in. Mast Antenna Spring (can be used optionally) Side Exit Adapter DO NOT USE Antenna Spring with 2 Mast Extensions DRIVE X OTR VEHICLE SIGNAL BOOSTER...
-
Page 8: Step 2: Mount Outside Antenna
______ Step 2: Mount Outside Antenna These are some typical antenna mounting points. If the vehicle does not have built-in mounting points, a 3-way mount is included that will work on vehicles with mirror rails. Upper Side Top of Mirror Mirror Arm 3-Way Mount on bird perch... -
Page 9: Step 3: Mount Inside Antenna
______ Step 3: Mount Inside Antenna Identify a place to mount the in-vehicle antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used. - Page 10 ______ Step 4: Connect Coax Cables To Booster Connect the cable from the outside antenna to the port labeled “Outside Antenna” on the Drive X OTR booster. NOTE: Bracket can be used to fasten booster in a specific location if desired. from Outside Antenna Connect the cable from the in-vehicle antenna to the port labeled “Inside Antenna”...
- Page 11 ______ Step 5: Connect Power Supply To Booster Connect the power supply cord to the end of the Drive X OTR labeled “Power.” NOTE: Do NOT connect the power to the signal booster until you have connected both cables from the Inside and outside antennas. Power Supply DRIVE X OTR VEHICLE SIGNAL BOOSTER...
- Page 12 ______ (STEP 5 cont.) Plug the power adapter into vehicle’s 12V DC power supply. Power up your Drive X OTR by flipping the switch on the back of the DC power adapter on and and watch your signal increase! NOTE: If your Drive X OTR is working correctly, the light on the power adapter will be red, and the light on the booster will be green.
-
Page 13: Light Patterns
______ Light Patterns Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. -
Page 14: Troubleshooting
______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. Unplug the booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before. -
Page 15: Antenna Kit Options
______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Drive X OTR. This radio transmitter 4726A-460021 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. -
Page 16: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range. -
Page 17: Specifications
______ Specifications Drive X OTR Model Number 460021 FCC ID: PWO460021 4726A-460021 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz Maximum Power 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz Power output for single cell... -
Page 18: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. - Page 19 Notes support.weboost.com 1-866-294-1660 NEED HELP? DRIVE X OTR VEHICLE SIGNAL BOOSTER...
- Page 20 3301 East Deseret Drive, St. George, UT 1.866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents or weboost.ca/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000468_Rev01_03.14.22...
