Wilson Electronics weBoost Drive Sleek Installation Manual
Vehicle signal booster kit
Hide thumbs
Also See for weBoost Drive Sleek:
- User manual (32 pages) ,
- User manual (18 pages) ,
- Installation manual
Subscribe to Our Youtube Channel
Related Manuals for Wilson Electronics weBoost Drive Sleek
Summary of Contents for Wilson Electronics weBoost Drive Sleek
- Page 1 A WILSON ELECTRONICS BRAND DRIVE SLEEK Vehicle Signal Booster Kit Installation Guide Use our weBoost App to guide you through the installation. See inside page for more details. support.weboost.com 1-866-294-1660 NEED HELP?
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you Antenna positioning guide Before and after cell through installation...
- Page 3 ______ Index Package Contents Mount Outside Antenna STEP 1: Route & Connect Booster STEP 2: Route Cable To Front Of Vehicle STEP 3: Connect System To Power STEP 4: Insert Phone Into Cradle STEP 5: Troubleshooting Safety Guidelines Specifications Warranty...

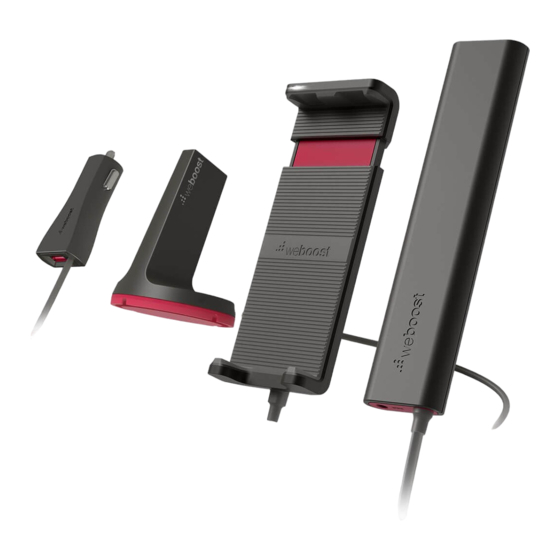

- Page 4 ________ Package Contents Outside Signal Power Sleek Antenna Booster Supply Cradle Magnetic Adhesive Magnetic Vent Mount Dash Mount (for cradle) (for cradle) CELL PHONE SIGNAL BOOSTER DRIVE SLEEK...
- Page 5 ______ Step 1: Mount Outside Magnetic Antenna Identify a location on the top of your vehicle that is: • Near the center of the roof • At least 12 inches away from any other antennas • At least 12 inches away from any windows (including sunroofs) Cle an the surface where you will place the outside antenna.
- Page 6 ______ Step 2: Route Antenna Cable & Connect Booster Route the cable into the vehicle. See examples below. NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable. Car/Sedan: Cable routed into rear side door.
- Page 7 ______ (STEP 2 cont.) Connect the cable from the outside antenna to the booster port labeled by simply pressing the connector in until ANTENNA you hear a “click”. NOTE: Connecting cable from outside antenna to booster does not take much force. Booster cable from Outside Antenna...
- Page 8 ______ Step 3: Route Cable To Front Of Vehicle & Connect To Cradle We recommend routing the 15ft. fixed cable from the booster, under mats and between seats up to the front of the vehicle where the cradle will be located. to front of vehicle Connect booster cable to cradle cable.
- Page 9 ______ Step 4: Connect System To Power Connect the power to the 12V CLA port on your vehicle and route power cable back to the booster. NOTE: We recommend routing with the same path as the cradle/booster cable (under mats and between seats). Cable clips are provided to help route &...
- Page 10 ______ Step 5: Insert Your Phone Into Cradle Make sure you have plenty of slack in the cable going up to the cradle (Velcro straps included to manage excess ® cable). Insert your phone into cradle and watch your signal increase! insert phone into Cradle to boost signal...
-
Page 11: Troubleshooting
______ Troubleshooting Solid White (LED on cradle) This indicates that your booster is functioning properly and at maximum gain. Light Off (LED on cradle) Check/secure power connections to the CLA, booster, and cradle. If light shuts off, remove from vehicle port and plug back in to reset the system. For any questions or assistance contact our weBoost Customer Support Team (1-866-294-1660). -
Page 12: Safety Guidelines
______ Safety Guidelines Warnings Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Any antenna used with this device must be located at least 8 inches from all persons. FCC requires to never use the cell phone in the cradle next to your ear. This is a CONSUMER device. -
Page 13: Antenna Kit Options
______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Drive Sleek. This radio transmitter 4726A-460035 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. -
Page 14: Specifications
______ Specifications Drive Sleek Product Number U470035 Model Number 460035 FCC ID: PWO460035 IC ID: 4726A-460035 Frequency 698-716 MHz, 729-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz Maximum Power 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz Power output for single cell Band 12/17 Band 13... -
Page 15: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. - Page 16 3301 East Deseret Drive, St. George, UT 1.866.294.1660 www.weboost.com support.weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE0000472_Rev01_01.10.22...
