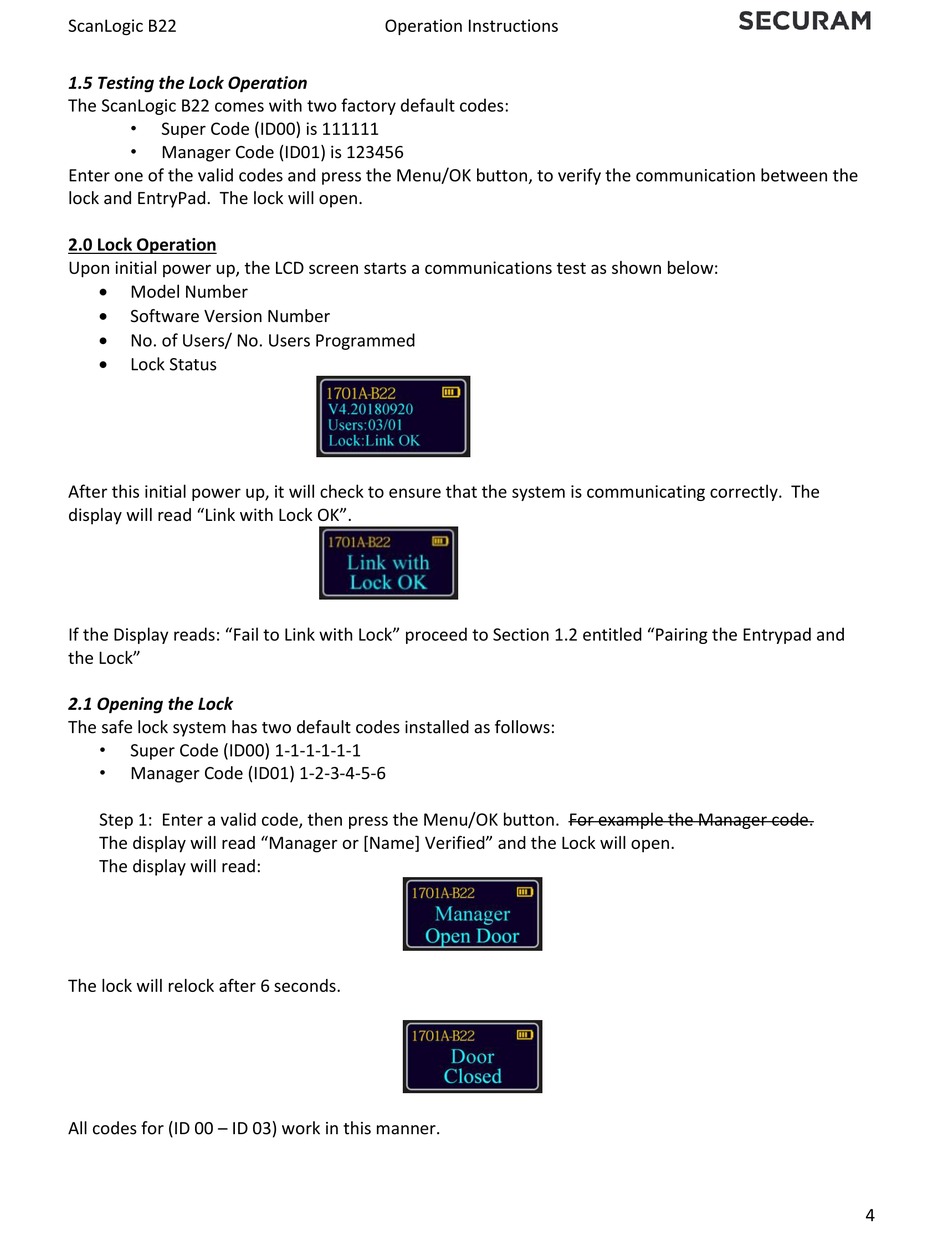

Securam ScanLogic B22 Operation Instructions Manual page 4

ScanLogic B22
1.5 Testing the Lock Operation
The ScanLogic B22 comes with two factory default codes:
•
Super Code (ID00) is 111111
•
Manager Code (ID01) is 123456
Enter one of the valid codes and press the Menu/OK button, to verify the communication between the
lock and EntryPad. The lock will open.
2.0 Lock Operation
Upon initial power up, the LCD screen starts a communications test as shown below:

Model Number

Software Version Number

No. of Users/ No. Users Programmed

Lock Status
After this initial power up, it will check to ensure that the system is communicating correctly. The
display will read "Link with Lock OK".
If the Display reads: "Fail to Link with Lock" proceed to Section 1.2 entitled "Pairing the Entrypad and
the Lock"
2.1 Opening the Lock
The safe lock system has two default codes installed as follows:
•
Super Code (ID00) 1-1-1-1-1-1
•
Manager Code (ID01) 1-2-3-4-5-6
Step 1: Enter a valid code, then press the Menu/OK button. For example the Manager code.
The display will read "Manager or [Name] Verified" and the Lock will open.
The display will read:
The lock will relock after 6 seconds.
All codes for (ID 00 – ID 03) work in this manner.
Operation Instructions
4
