Feststehende Lünette - Fixed steady rest

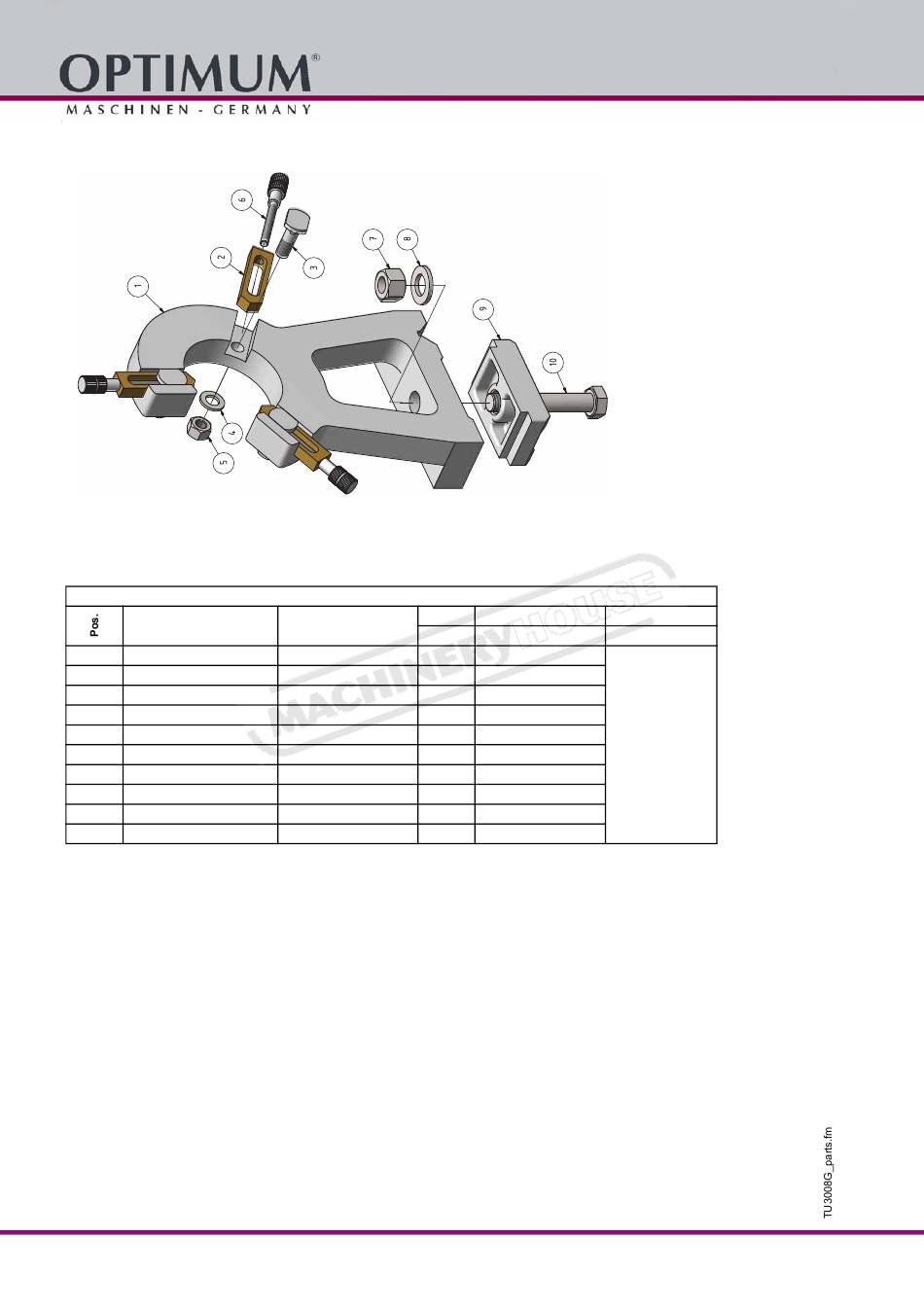

Abb.6-16: Feststehende Lünette - Fixed steady rest
TU3008G - Teileliste feststehende Lünette - Fixed steady rest parts list
Bezeichnung
1
Feststehende Lünette
2
Messingstift
3
Schraube
4
Scheibe
5
Sechskantmutter
6
Einstellschraube
7
Sechskantmutter
8
Scheibe
9
Klemmplatte
10
Sechskantschraube
DE | GB
TU3008G
96
Menge
Description
Qty.
Steady rest
1
Brass pin
3
Screw
3
Washer
3
Hexagon nut
3
Ajust screw
3
Hexagon nut
1
Washer
1
Clamping plate
1
Hexagon screw
1
Originalbetriebsanleitung
Grösse
Artikelnummer
Size
Item no.
8
M8
3441461
M12
M12x70
