Tailstock - Optimum OPTI turn TU 3008G Operating Manual

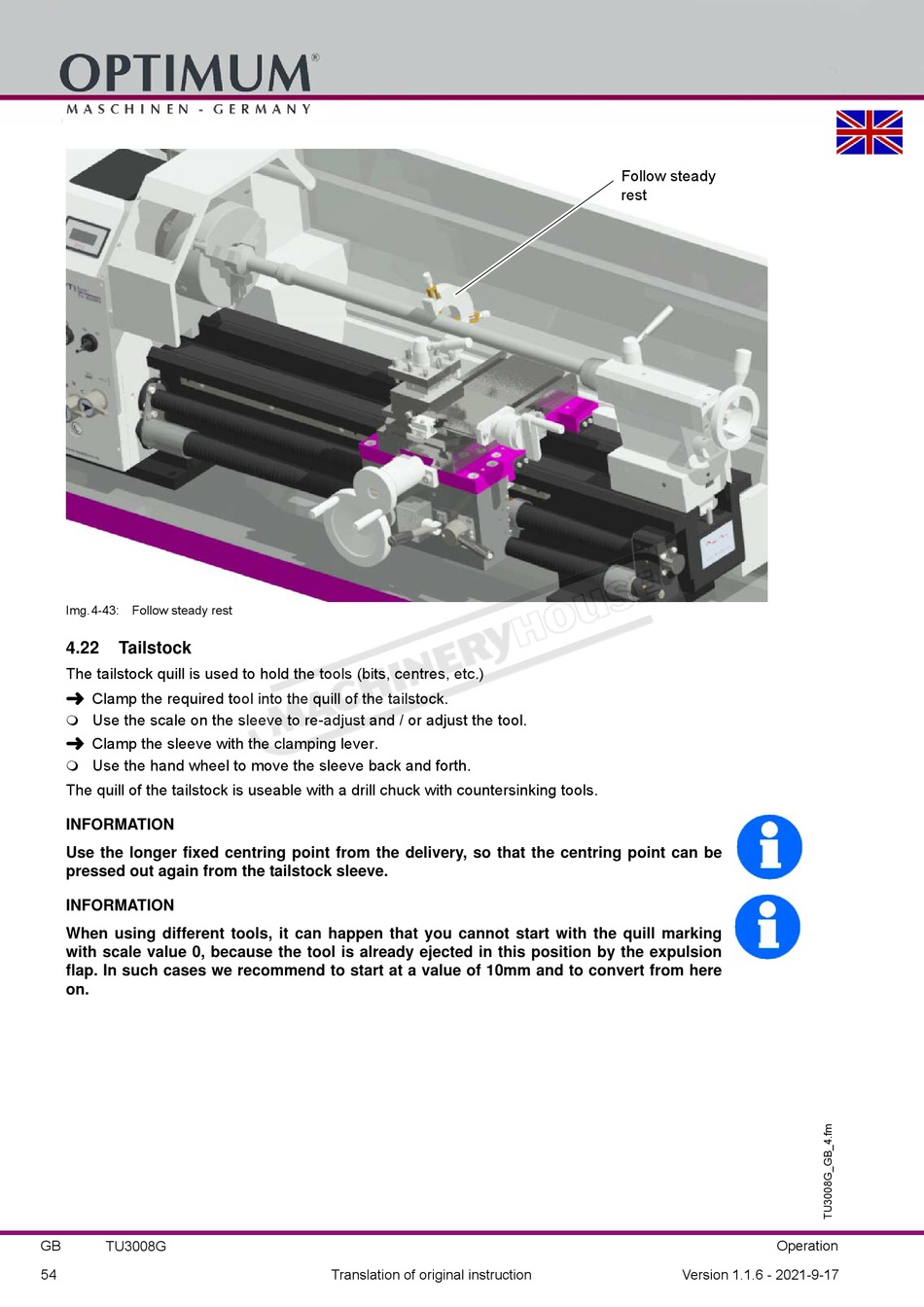

Img.4-43: Follow steady rest
4.22

Tailstock

The tailstock quill is used to hold the tools (bits, centres, etc.)

Clamp the required tool into the quill of the tailstock.
Use the scale on the sleeve to re-adjust and / or adjust the tool.


Clamp the sleeve with the clamping lever.
Use the hand wheel to move the sleeve back and forth.

The quill of the tailstock is useable with a drill chuck with countersinking tools.
INFORMATION
Use the longer fixed centring point from the delivery, so that the centring point can be
pressed out again from the tailstock sleeve.
INFORMATION
When using different tools, it can happen that you cannot start with the quill marking
with scale value 0, because the tool is already ejected in this position by the expulsion
flap. In such cases we recommend to start at a value of 10mm and to convert from here
on.
