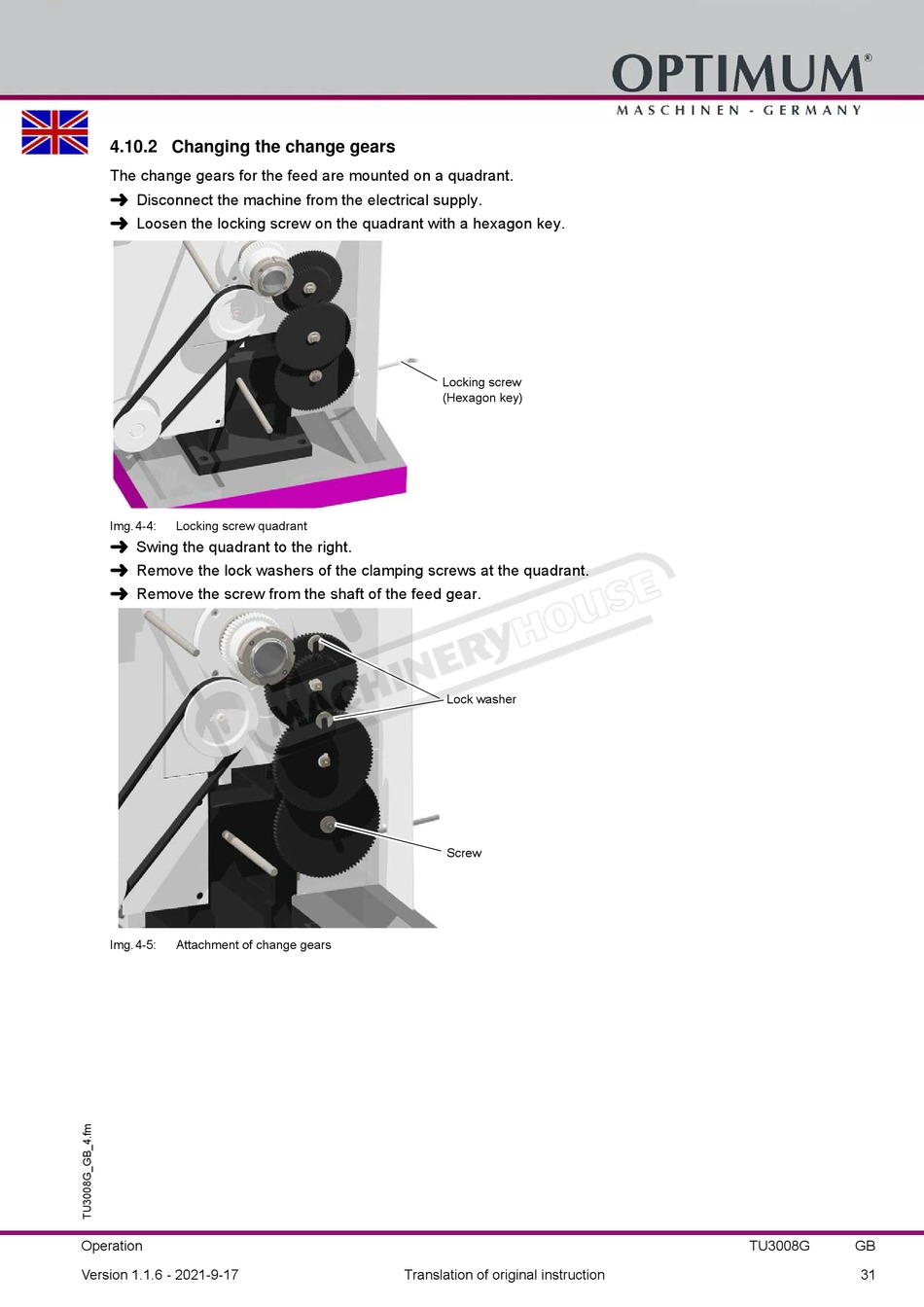

4.10.2 Changing the change gears
The change gears for the feed are mounted on a quadrant.
Disconnect the machine from the electrical supply.
Loosen the locking screw on the quadrant with a hexagon key.
Img.4-4:
Locking screw quadrant
Swing the quadrant to the right.
Remove the lock washers of the clamping screws at the quadrant.
Remove the screw from the shaft of the feed gear.
Img.4-5:
Attachment of change gears
Operation
Version 1.1.6 - 2021-9-17
Locking screw
(Hexagon key)
Lock washer
Screw
Translation of original instruction
TU3008G
GB
31
