Mounting

The MedVue Model MV2 Medical Weight Analyzer is mounted to the scale (or an optional
desktop/wall bracket) using a swivel ball and socket assembly.

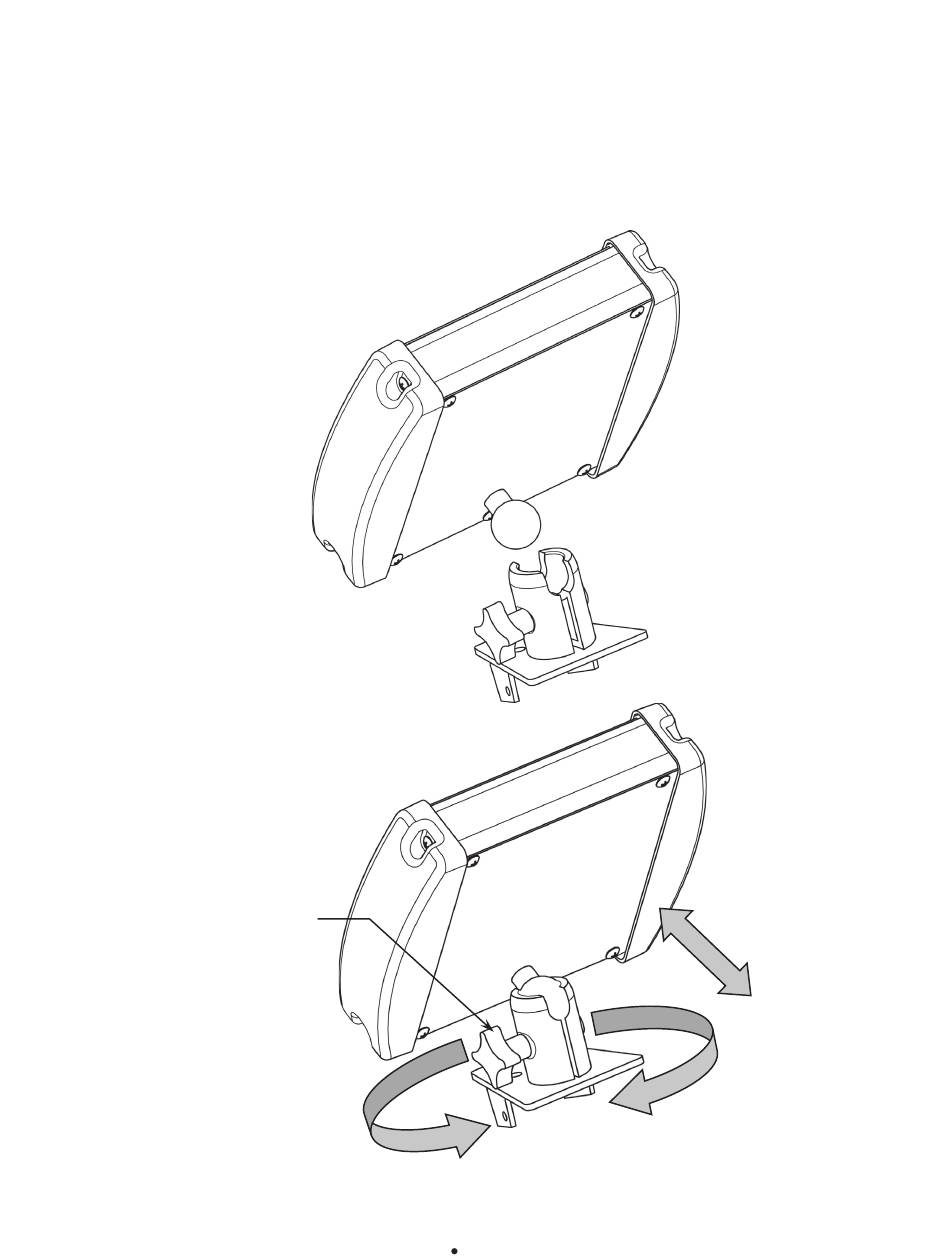

To install the MV2 Rubber Ball in to the Swivel Ball Socket, slightly loosen the Adjustment
Knob to allow the two parts of the socket to open enough to insert the Rubber Ball. Adjust
the MV2 to the desired viewing angle and direction and then tighten the Adjustment Knob.
Adjustment Knob
Loosen slightly to
insert Rubber Ball
in to Swivel Ball
Socket. Adjust to
desire angle and
direction and then
tighten Adjustment
Knob.
Figure No. 2
Adjustment Knob
Loosen slightly to
adjust viewing
angle and direction
Figure No. 3
NOTE: The top plate mounting configuration varies depending on the model of your
scale and may be different than the one shown in Figures No. 2 and 3. Refer to
Appendix A for the various top plate mounting configurations.
4
INSTALLATION, CONT.
8555-0530-0M Rev E MedVue MV2 Owner's
Rubber Ball
Swivel Ball
Socket
Top Plate
of scale
