Inseego Wavemaker PRO User Manual page 46

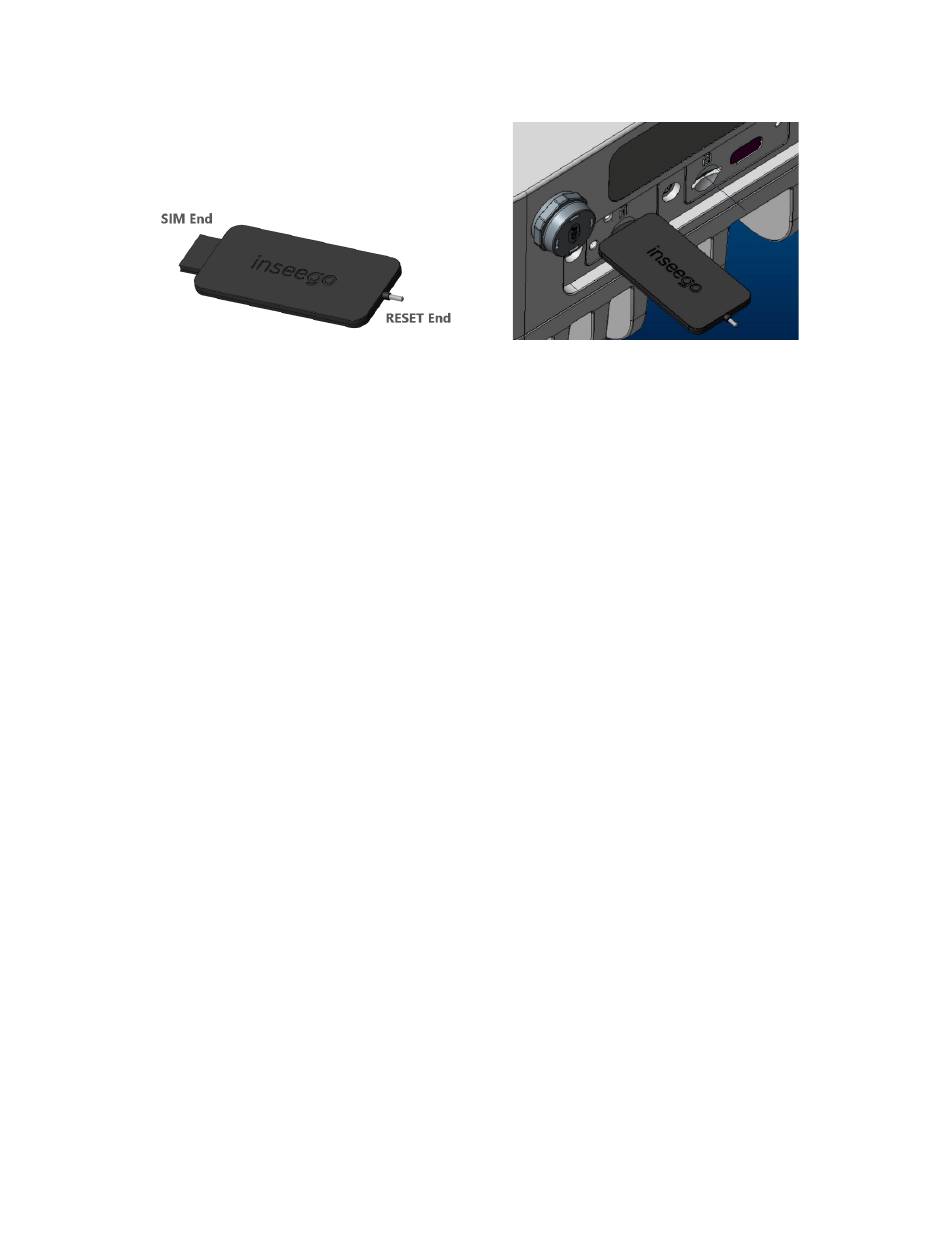

3. Use the SIM end of the provided SIM tool to remove the existing SIM card.
4. If necessary, remove the new SIM card from the outer card, being careful not to touch the gold
colored contacts.
5. Use the SIM end of the provided SIM tool to insert the SIM card into the appropriate SIM slot
with the gold-colored contact points facing the front of the device.
6. Reattach the protective shield cover to a torque of 1.2Nm (0.885 ft/lb).
7. Insert the PoE cable to the FW2010e back into the PoE port on the PoE power injector.
NOTE:
If there is an issue, check the indicator LED (see Indicator LED on the next page) to make sure
the SIM is working correctly. Should your SIM card be lost or damaged, contact your network operator.
5G OUTDOOR CPE FW2010e USER GUIDE 46
