Liquid system

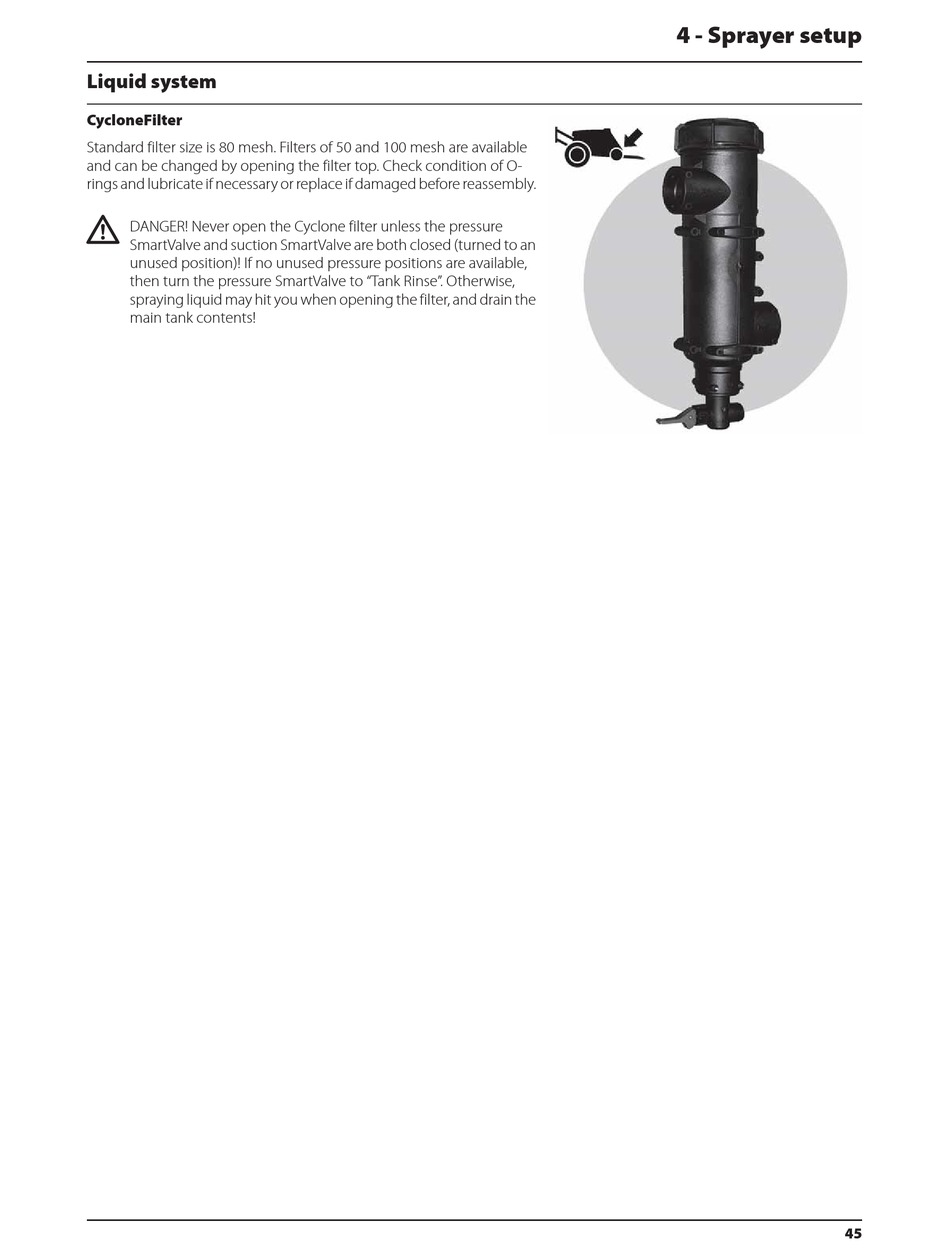

CycloneFilter

Standard filter size is 80 mesh. Filters of 50 and 100 mesh are available
and can be changed by opening the filter top. Check condition of O-
rings and lubricate if necessary or replace if damaged before reassembly.
€
DANGER! Never open the Cyclone filter unless the pressure
SmartValve and suction SmartValve are both closed (turned to an
unused position)! If no unused pressure positions are available,
then turn the pressure SmartValve to "Tank Rinse". Otherwise,
spraying liquid may hit you when opening the filter, and drain the
main tank contents!
