4 - Sprayer setup

General info

Unloading the sprayer from the truck

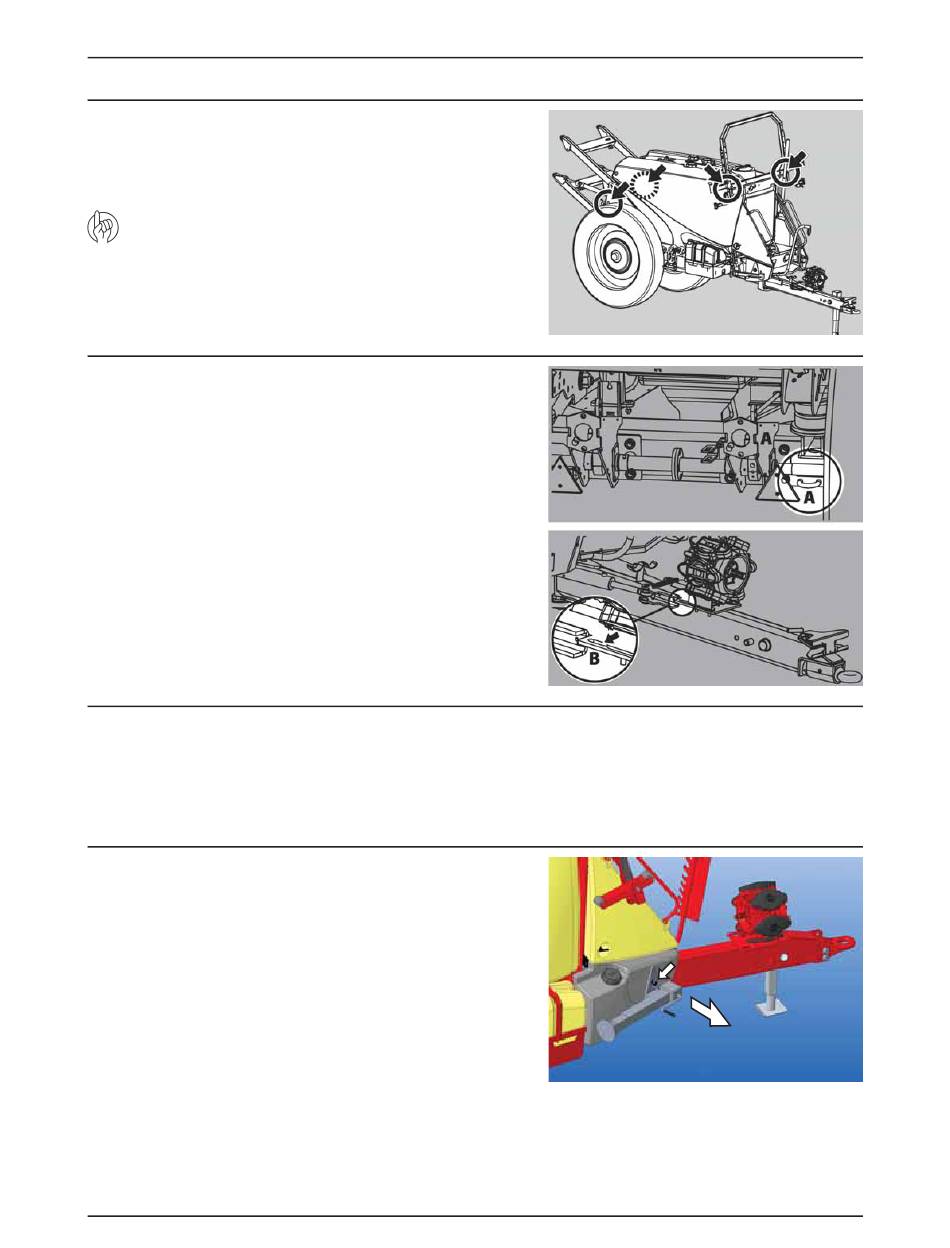

For the unloading of the sprayer, you need a crane. When unloading
with a crane please observe the lifting points as shown on the picture,
and make sure that the straps or belts used for lifting are strong enough.
ATTENTION! Only lift the sprayer when the tanks are empty!

Pulling the sprayer at the tie down hooks

For moving the sprayer or loading it to e.g. a truck, it can be pulled in the
hooks at the rear-end (A) or a hook can be fastened into the hole in the
front end of the sprayer (B).

Before putting the sprayer into operation

Although the sprayer has been applied with a strong and protective surface treatment on steel parts, bolts etc. in the factory,
it is recommended to apply a film of anti-corrosion oil (e.g. CASTROL RUSTILO or SHELL ENSIS FLUID) on all metal parts in
order to avoid chemicals and fertilizers discoloring the enamel. If this is done before the sprayer is put into operation for the
first time, it will always be easy to clean the sprayer and keep the enamel clean for many years. This treatment should be
carried out every time the protection film is washed off.

Support jack

The support jack is stored in the bracket on the sprayer's right side when
the sprayer is attached to the tractor. To use the support jack: Remove
the linch pin and pull the jack out from the storage bracket. The support
jack can then be mounted to the drawbar extension on either side as
preferred and secured by a linch pin. To remove the support jack: Lift the
jack, remove the linch pin and pull out the support jack. Secure the jack
at the storage bracket with the linch pin.
