Diagram - Efc Control Unit (Df4), Diaphragm Liquid System With Options - Hardi NAVIGATOR 3000 Operator's Manual

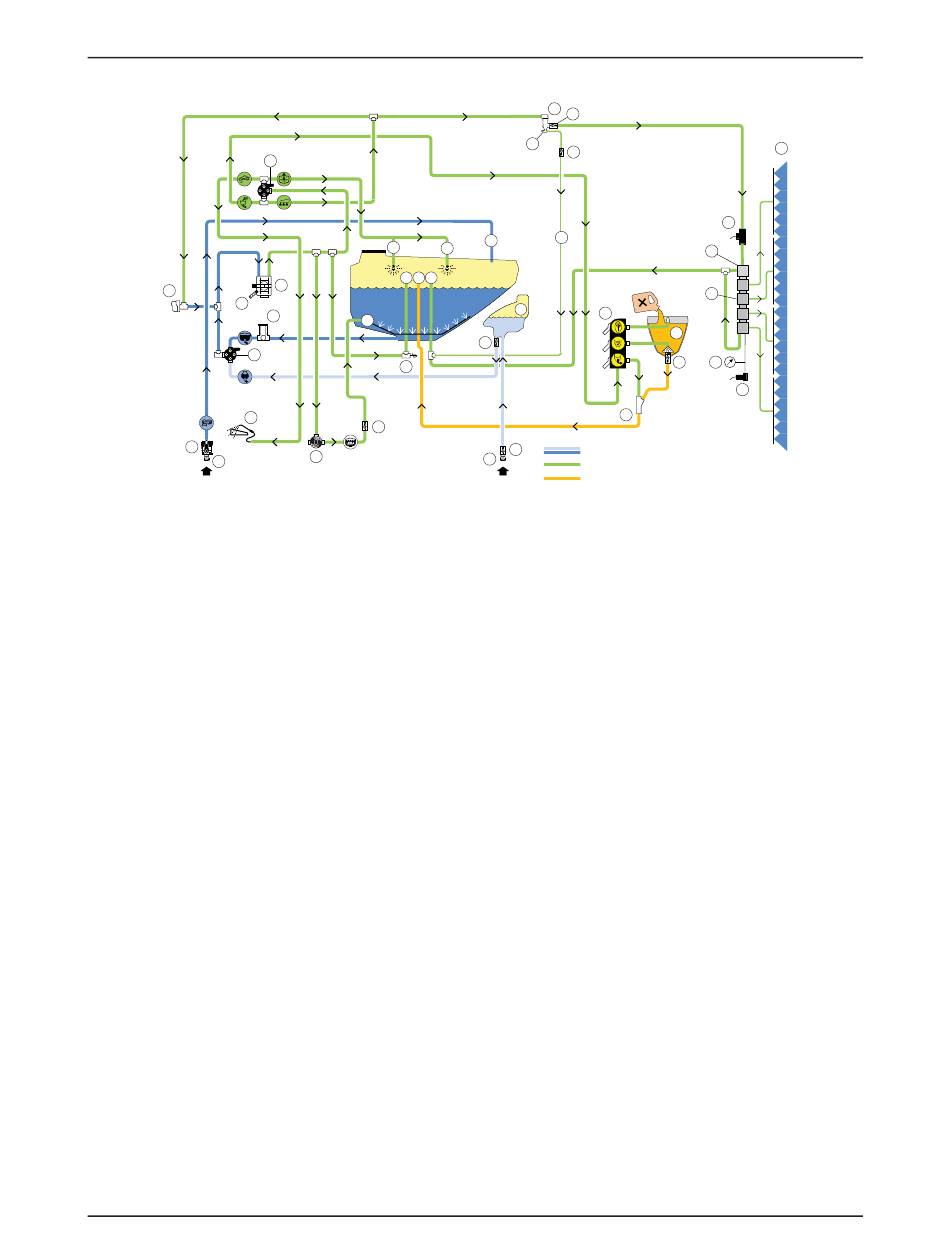

Diagram - EFC Control Unit (DF4), Diaphragm Liquid System with Options

4
24
3
32
21
20
1. Pump
2. EasyClean Filter
3. Suction SmartValve
4. Pressure Regulation Valve (DF4/EFC)
5. Pressure SmartValve
6. CycloneFilter
7. Purge Valve
8. Return Line for Boost Function
9. Bypass Valve for Boom
10. Distribution Valves (EFC)
11. Pressure Gauge (optional)
12. Pressure Sensor
13. Spray Boom
14. Agitation Valve
15. Agitation Tube
16. Return Line / Riser Pipe
5
27
27
19 31 16
1
2
15
18
17
14
6
17
7
17
8
22
25
28
17
30
Suction lines
17
26
Pressure lines
Pressure/Chemical line
17. One-Way Valve
18. Safety Valve
19. Riser Pipe
20. Main Tank Quick Fill Coupler
21. Main Tank Quick Fill Valve
22. Main Tank Quick Fill hose to tank inlet
23. Flowmeter
24. Speed Sensor for Pump
25. Rinse Tank (optional)
26. Rinse Tank Coupler (optional)
27. Rinsing Nozzles (optional)
28. Valve Block for TurboFiller (optional)
29. TurboFiller (optional)
30. Ejector for TurboFiller (optional)
31. Tank Hose for Turbofiller (optional)
32. External Cleaning (optional)
3 - Description
13
23
9
10
29
11
17
12
23
