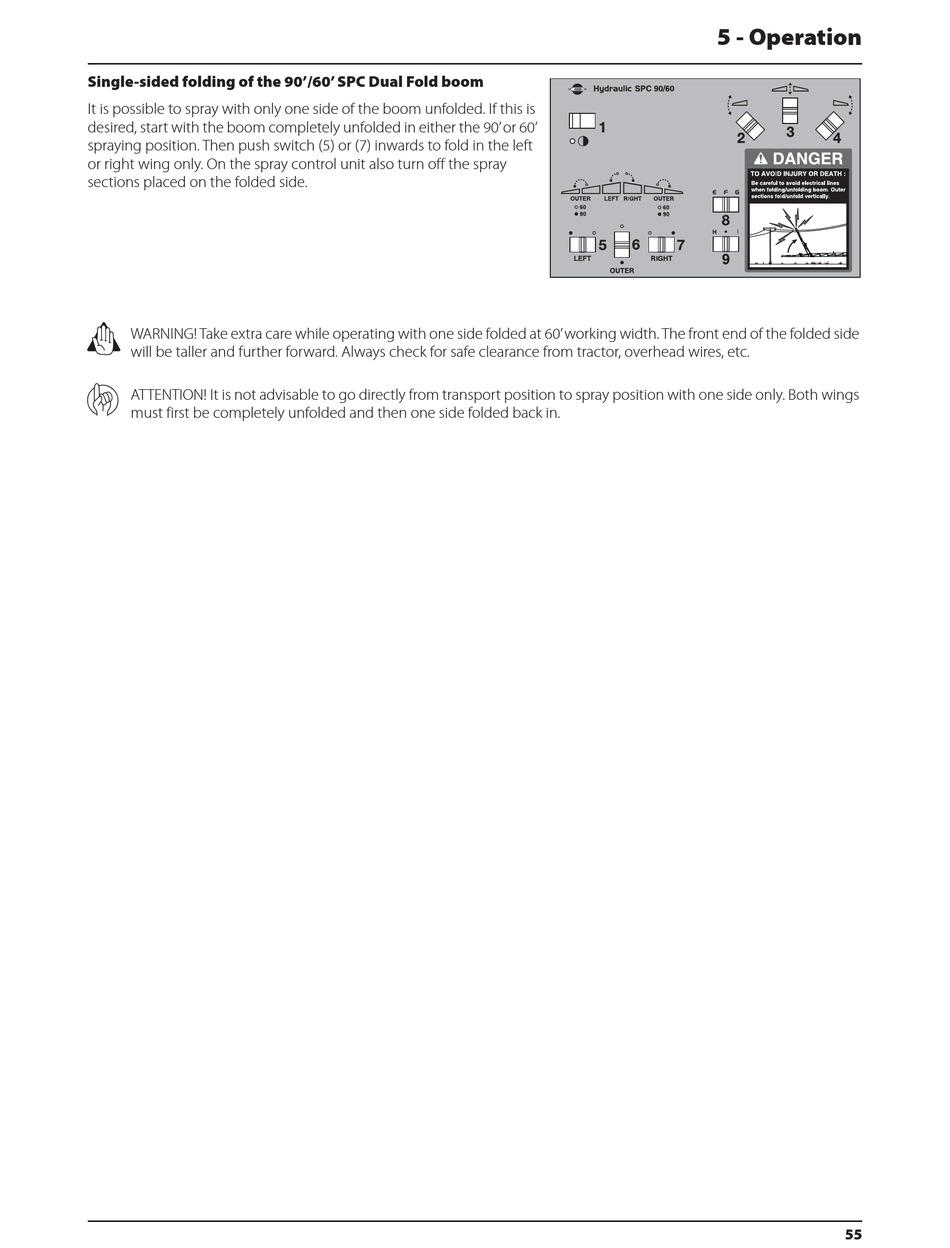

Single-sided folding of the 90'/60' SPC Dual Fold boom

It is possible to spray with only one side of the boom unfolded. If this is
desired, start with the boom completely unfolded in either the 90' or 60'
spraying position. Then push switch (5) or (7) inwards to fold in the left
or right wing only. On the spray control unit also turn off the spray
sections placed on the folded side.
±
WARNING! Take extra care while operating with one side folded at 60' working width. The front end of the folded side
will be taller and further forward. Always check for safe clearance from tractor, overhead wires, etc.
ATTENTION! It is not advisable to go directly from transport position to spray position with one side only. Both wings
must first be completely unfolded and then one side folded back in.
