Electrical Connections
Road traffic lights
The wiring is in accordance with ANSI/ASAE S279.11.
Position
1. Ground
2. Work lamps
3. LH flashing & turn indicator
4. Free
5. RH flashing & turn indicator
6. Free
7. Free

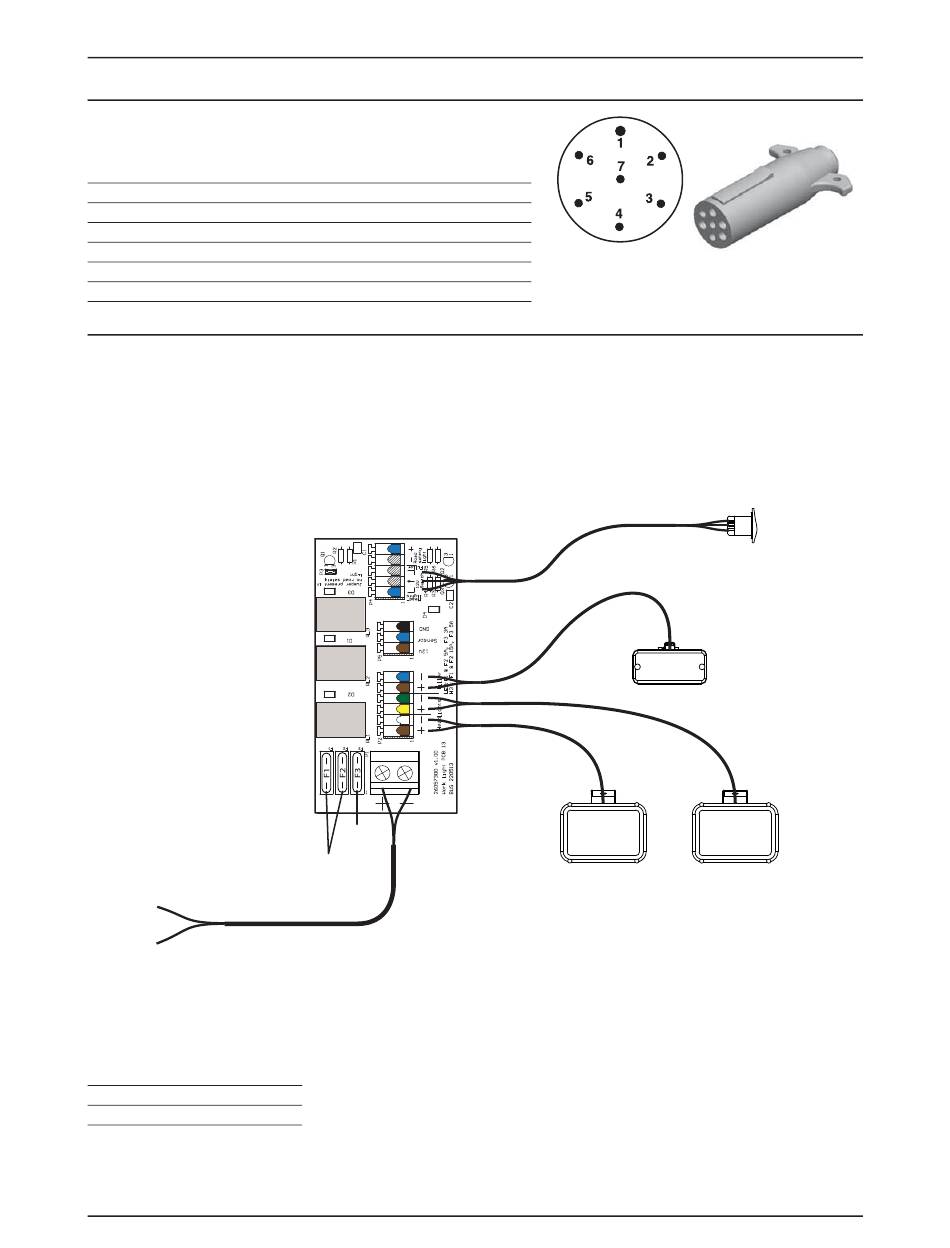

Electrical Schematic for Boom and Work Lights (SPB/SPC Booms)
A
Switch for work/boom lights
B
Work light
C
Boom lights
D
Cable to JobCom
Wire color
White
Black
Yellow
Red
Green
Brown
Blue
5 A
15 A
D
8 - Technical specifications
B
C
RIGHT
LEFT
A
C
109
