Manual
WAGO-I/O-SYSTEM 750 XTR
750-537/040-000
8DO 24 VDC 0.5A Diagn XTR
8-Channel digital Output; 24 VDC; 0.5 A;
Diagnostics; Extreme
Version 1.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750-537/040-000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WAGO 750-537/040-000

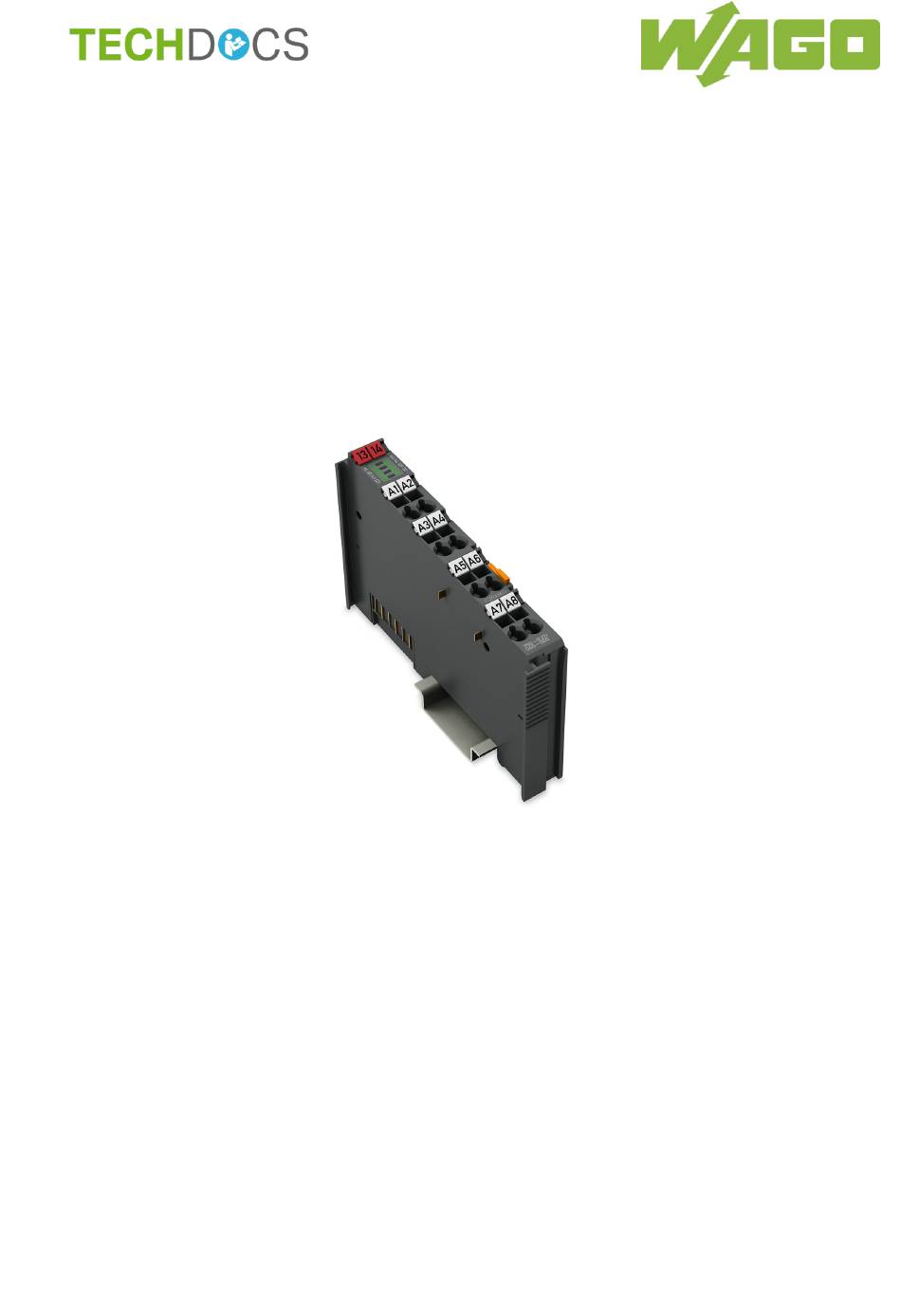

  • Page 1 Manual WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 8-Channel digital Output; 24 VDC; 0.5 A; Diagnostics; Extreme Version 1.1.1...
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.1.1...
  • Page 3: Table Of Contents

    WAGO-I/O-SYSTEM 750 XTR Table of Contents 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table of Contents Notes about this Documentation ............. 5 Validity of this Documentation..............5 Copyright ....................5 Symbols ....................6 Number Notation ..................8 Font Conventions ................... 8 Important Notes ..................
  • Page 4 Table of Contents WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Using in Safety Related Applications ............ 42 Important Notes ..................42 Connection for the I/O Module to Safety Switching Devices or F I/O Modules ..................44 7.2.1 General Structure of a Potential Group ..........
  • Page 5: Notes About This Documentation

    (8DO 24 VDC 0.5A Diagn XTR). The I/O module 750-537/040-000 shall only be installed and operated according to the instructions in this manual, in the system description for the WAGO I/O SYSTEM 750 XTR and in the manual for the used fieldbus coupler/controller.
  • Page 6: Symbols

    Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 7 WAGO-I/O-SYSTEM 750 XTR Notes about this Documentation 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Manual Version 1.1.1...
  • Page 8: Number Notation

    Notes about this Documentation WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Number Notation Table 1: Number Notation Number Code Example Note Decimal Normal notation Hexadecimal 0x64 C notation Binary '100' In quotation marks, nibble separated '0110.0100' with dots (.)
  • Page 9: Important Notes

    2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents.
  • Page 10: Technical Condition Of Specified Devices

    These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •...
  • Page 11: 2.1.4.1.2 Packaging

    WAGO-I/O-SYSTEM 750 XTR Important Notes 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment.
  • Page 12: Safety Advice (Precautions)

    Important Notes WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work.
  • Page 13 Power from SELV/PELV power supply only! All field signals and field supplies connected to this XTR I/O module (750-537/040-000) must be powered from SELV/PELV power supply(s)! Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
  • Page 14 Important Notes WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Do not reverse the polarity of connection lines! Avoid reverse polarity of data and power supply lines, as this may damage the devices involved. Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched.
  • Page 15: Device Description

    The meaning of the LEDs is described in the “Display Elements” section. The I/O module 750-537/040-000 (8DO 24 VDC 0.5A Diagn XTR) receives the 24 V voltage supply for the field level from an upstream I/O module or from the fieldbus coupler/controller via blade-formed power jumper contacts.
  • Page 16 Power from SELV/PELV power supply only! All field signals and field supplies connected to this XTR I/O module (750-537/040-000) must be powered from SELV/PELV power supply(s)! In the event of an overload, short circuit or line break, an error bit per channel is set in the input process image.
  • Page 17 WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR The I/O module can be operated with all fieldbus couplers/controllers of the WAGO I/O SYSTEM 750 XTR. Observe the instructions for mixed operation when used in mixed operation behind standard fieldbus couplers/controllers.
  • Page 18: View

    Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR View Figure 1: View Table 3: Legend for Figure “View” Pos. Description Details See Section Marking possibility with Mini- Status LEDs “Device Description” > “Display Elements” Data contacts “Device Description”...
  • Page 19: Connectors

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Connectors 3.2.1 Data Contacts/Local Bus Communication between the fieldbus coupler/controller and the I/O modules as well as the system supply of the I/O modules is carried out via the local bus. The contacting for the local bus consists of 6 data contacts, which are available as self-cleaning gold spring contacts.
  • Page 20: Power Jumper Contacts/Field Supply

    The blade contacts are sharp-edged. Handle the I/O module carefully to prevent injury. Do not touch the blade contacts. The I/O module 750-537/040-000 has 2 self-cleaning power jumper contacts that supply and transmit power for the field side. The contacts on the left side of the I/O module are designed as blade contacts and those on the right side as spring contacts.
  • Page 21: Cage Clamp ® Connectors

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 3.2.3 CAGE CLAMP ® Connectors Figure 4: CAGE CLAMP ® Connectors Table 5: Legend for Figure “CAGE CLAMP ® Connectors” Channel Designation Connector Function DO 1 Output DO 1: Signal voltage...
  • Page 22: Display Elements

    Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Display Elements Figure 5: Display Elements Table 6: Legend for Figure “Display Elements“ Channel Designation Status DO 1 Error DO 1 Status DO 2 Error DO 2 Status DO 3...
  • Page 23: Schematic Diagram

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Schematic Diagram Figure 6: Schematic Diagram Manual Version 1.1.1...
  • Page 24: Technical Data

    Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Technical Data 3.5.1 Device Data Table 8: Technical Data – Device Width 12 mm Height (from upper edge of DIN-rail) 60.6 mm Depth 100 mm Weight 51.3 g...
  • Page 25: Digital Outputs

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 3.5.4 Digital Outputs Table 11: Technical Data – Outputs Number of outputs Output type High-side switching Output voltage 24 VDC Output current 0.5 A, short-circuit protected max. Load type...
  • Page 26: Climatic Environmental Conditions

    Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 3.5.7 Climatic Environmental Conditions Table 16: Technical Data ‒ Climatic Environmental Conditions Surrounding air temperature, operation −40 °C … +70 °C Surrounding air temperature, storage −40 °C … +85 °C...
  • Page 27: Approvals

    Conformity marking UL61010-2-201 The following approvals are pending for the 750-537/040-000 I/O module: Korea Certification The following Ex approvals are pending for the 750-537/040-000 I/O module: UL 12.12.01 – for Use in Hazardous Locations ATEX IECEx The following shipbuilding approvals are pending for the 750-537/040-000...
  • Page 28 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO I/O SYSTEM 750”, which you can find via the internet under: www.wago.com  DOWNLOADS  Documentation  System Description.
  • Page 29: Standards And Guidelines

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Standards and Guidelines 750-537/040-000 I/O modules meet the following standards and guidelines: Table 17: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU General Requirements...
  • Page 30 Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table 18: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1...
  • Page 31: Table 19: Emc - Immunity To Interference

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR The I/O module 750-537/040-000 meets the following EMC standards as these standards relate to the I/O module: Table 19: EMC – Immunity to Interference Standard Test Value Electrostatic Discharge •...
  • Page 32 Device Description WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table 19: EMC – Immunity to Interference Standard Test Value Conducted Asymmetric Disturbances • EN 61000-4-16 To ensure proper function in the event of line frequency disturbances in accordance with EN 61000-4-16 or EN 60255-26 “Line Frequency...
  • Page 33: Table 20: Emc - Emission Of Interference

    WAGO-I/O-SYSTEM 750 XTR Device Description 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table 20: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55032 Class B 37 dB(µV/m), QP, 230 MHz …...
  • Page 34: Table 21: Standards And Rated Conditions For Rail Applications (En 50155)

    EN 50121-3-2 5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.1.1...
  • Page 35: Process Image

    WAGO-I/O-SYSTEM 750 XTR Process Image 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Process Image Mapping of process data in the process image of fieldbus systems The representation of the process data of some I/O modules or their variants in the process image depends on the fieldbus coupler/controller used. Please take this information from the section “I/O Modules”...
  • Page 36: Mounting

    750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Mounting Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO I/O SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35). The reliable positioning and connection is made using a tongue and groove system.
  • Page 37: Inserting And Removing Devices

    WAGO-I/O-SYSTEM 750 XTR Mounting 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Inserting and Removing Devices Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
  • Page 38: Removing The I/O Module

    Mounting WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Press the I/O module into the assembly until the I/O module snaps into the carrier rail. Figure 8: Snap the I/O Module into Place (Example) With the I/O module snapped in place, the electrical connections for the data contacts and power jumper contacts (if any) to the fieldbus coupler/controller or to the previous or possibly subsequent I/O module are established.
  • Page 39: Figure 9: Removing The I/O Module (Example)

    WAGO-I/O-SYSTEM 750 XTR Mounting 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Figure 9: Removing the I/O Module (Example) Electrical connections for data or power jumper contacts are disconnected when removing the I/O module. Manual Version 1.1.1...
  • Page 40: Connect Devices

    Do not connect more than one conductor at one single connection! If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. For opening the CAGE CLAMP ®...
  • Page 41: Connection Example

    WAGO-I/O-SYSTEM 750 XTR Connect Devices 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Connection Example Figure 11: Connection Example 1-Conductor Connection Manual Version 1.1.1...
  • Page 42: Using In Safety Related Applications

    WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Using in Safety Related Applications The 750-537/040-000 I/O module is suited for use in interference-free safety circuits. If the field side supply is shut down via a safety switching device, the safety function of the module is not active.
  • Page 43 WAGO-I/O-SYSTEM 750 XTR Using in Safety Related Applications 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Avoid reverse supply of module! A group of interference-free digital output modules shall only be supplied using a safety switching device. Reverse supply must absolutely be avoided.
  • Page 44: Connection For The I/O Module To Safety Switching Devices Or F I/O Modules

    7.2.1 General Structure of a Potential Group When using the interference-free I/O module 750-537/040-000 in safety-related applications, the I/O modules belonging to a safety switching device shall be combined to form a potential group. The power supply of the potential group may...
  • Page 45: Use In Hazardous Environments

    Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Use in Hazardous Environments The WAGO I/O SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations.
  • Page 46: Marking Configuration Examples

    Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Marking Configuration Examples 8.1.1 Marking for Europe According to ATEX and IECEx Figure 13: Marking Example According to ATEX and IECEx Figure 14: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.1.1...
  • Page 47: Table 25: Description Of Marking Example According To Atex And Iecex

    WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table 25: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X...
  • Page 48: Figure 15: Marking Example For Approved Ex I I/O Module According To Atex

    Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Figure 15: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 16: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and...
  • Page 49: Table 26: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex

    WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Table 26: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers...
  • Page 50: Marking For The United States Of America (Nec) And Canada (Cec)

    Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 8.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 17: Marking Example According to NEC Figure 18: Text Detail – Marking Example According to NEC 500...
  • Page 51: Figure 19: Text Detail - Marking Example For Approved Ex I I/O Module

    WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Figure 19: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 28: Description of Marking Example for Approved Ex i I/O Module According to NEC 505...
  • Page 52: Figure 21: Text Detail - Marking Example For Approved Ex I I/O Modules

    Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Figure 21: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 30: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18...
  • Page 53: Installation Regulations

    WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Installation Regulations For the installation and operation of electrical equipment in hazardous areas, the valid national and international rules and regulations which are applicable at the installation location must be carefully followed.
  • Page 54 Use in Hazardous Environments WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...
  • Page 55: Special Notes Regarding Ansi/Isa Ex

    WAGO-I/O-SYSTEM 750 XTR Use in Hazardous Environments 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR 8.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •...
  • Page 56: List Of Figures

    List of Figures WAGO-I/O-SYSTEM 750 XTR 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR List of Figures Figure 1: View ....................18 Figure 2: Data Contacts ..................19 Figure 3: Power Jumper Contacts ..............20 Figure 4: CAGE CLAMP ® Connectors ..............21 Figure 5: Display Elements.................22 Figure 6: Schematic Diagram ................23...
  • Page 57: List Of Tables

    WAGO-I/O-SYSTEM 750 XTR List of Tables 750-537/040-000 8DO 24 VDC 0.5A Diagn XTR List of Tables Table 1: Number Notation ................... 8 Table 2: Font Conventions .................. 8 Table 3: Legend for Figure “View” ..............18 Table 4: Legend for Figure “Power Jumper Contacts” ........20 Table 5: Legend for Figure “CAGE CLAMP...
