WAGO-I/O-SYSTEM 750
Pos : 2 /D okumentati on allgemein/Ei nband/Ei nband H andbuch - Fronts eite 2015 - mit Doc Variabl en (Standar d) @ 9\mod_1285229289866_0.doc x @ 64941 @ @ 1
Manual
750-513(/xxx-xxx)

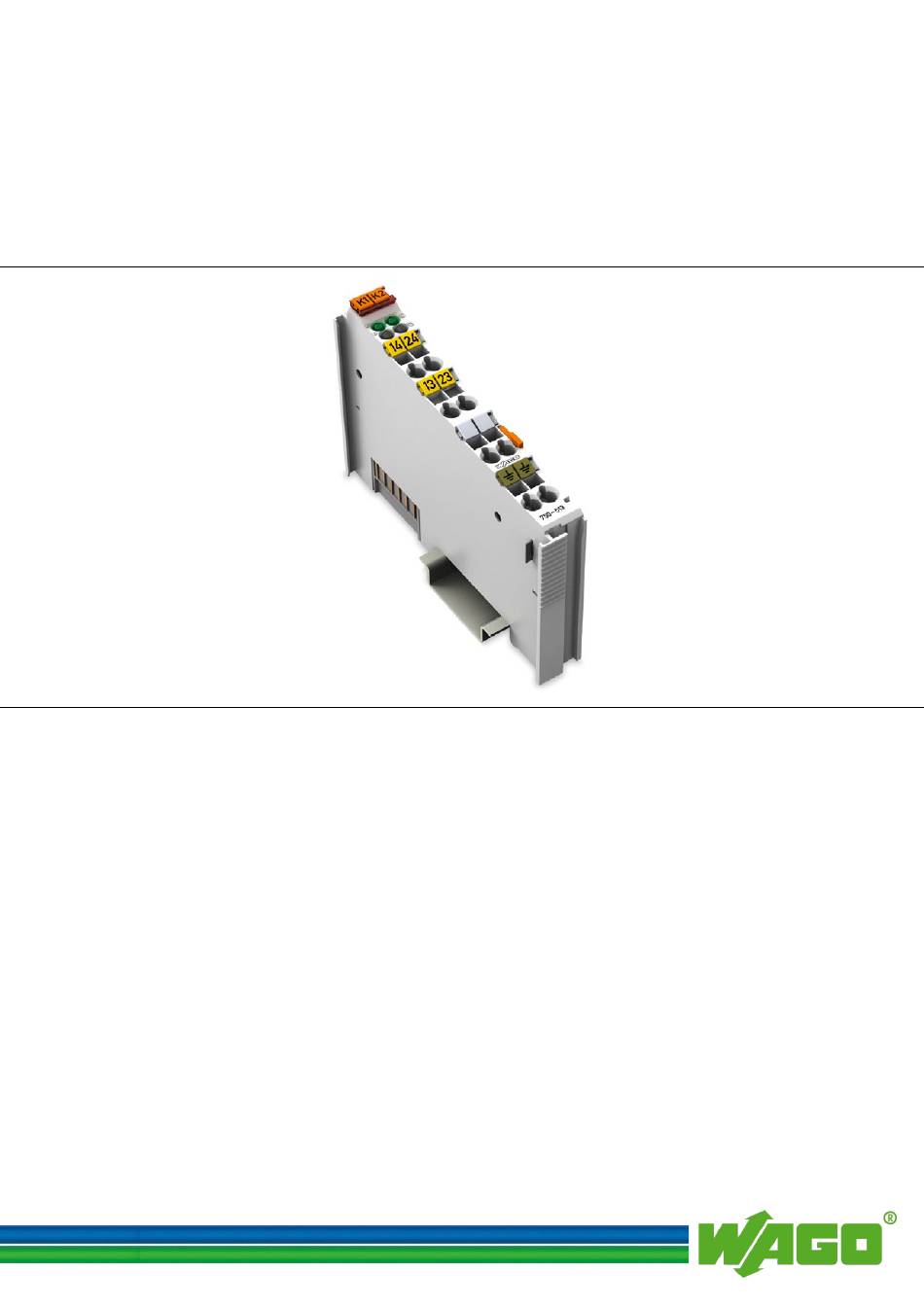

2DO 230V AC 2.0A/ Relay 2NO/ Potential Free
2-Channel Relay Output Module 230 VAC, 30 VDC,
Isolated Outputs; 2 Make Contacts
Version 1.2.2
