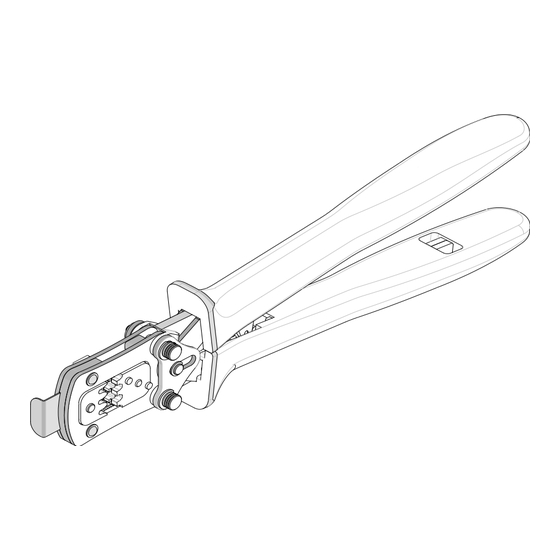

Hand Crimp Tool: for NSCC 1.5 Receptacle Terminals
Order Number
63819-8600
FEATURES
A full cycle ratcheting hand tool ensures complete crimps.
Ergonomic soft grip handles for comfortable crimping.
Right- and left-handed applications.
Easy handling due to outstanding force ratio
A precision user-friendly terminal locator with wire stop that holds terminals in the proper crimping position.
Tooling can be installed in the 63816-1950 Power Crimp Adapter, which is installed into the 63816-0270 (110 V)
or 63816-0280 (220 V) Battery Powered Tools and the 63816-1900 Electric Crimp Machine.
This tool is RoHS compliant; however, RoHS compliance is not required.
SCOPE
Products: NSCC 1.5 Receptacle Terminals for 0.35, 1.40, 1.50, and 2.00mm
Terminal Order No.
Terminal
Series
98897
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381986HM
Revision: C
Application Tooling
Specification Sheet
Reel Form only
Wire Style
98897-1109
IR
IR
98897-1129
ID
IR
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
INSULATION
CRIMP
CUT-OFF TAB
Release Date: 10-09-09
Revision Date: 06-30-23
Wire Size
Insulation Diameter
mm
/ AWG
mm
2
0.35
1.25-1.40
1.40
2.20-2.40
1.50
2.10-2.30
2.00
2.50-2.70
BELL MOUTH
SEAM
CONDUCTOR
COND.CRIMP
CRIMP
HEIGHT
UNCONTROLLED COPY
2
Wire Strip Length
In.
mm
In.
.049-.055
.087-.094
4.30-4.70
.169-.185
.083-.091
.098-.106
BEND UP
TWISTING
BEND
DOWN
TYPE 4A
ROLLING
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for molex 98897
Summary of Contents for molex 98897
- Page 1 Products: NSCC 1.5 Receptacle Terminals for 0.35, 1.40, 1.50, and 2.00mm Terminal Order No. Wire Size Insulation Diameter Wire Strip Length Terminal Series Reel Form only Wire Style / AWG 98897-1109 0.35 1.25-1.40 .049-.055 1.40 2.20-2.40 .087-.094 98897 4.30-4.70 .169-.185 98897-1129 1.50...
- Page 2 Hand Crimp Tool: for NSCC 1.5 Receptacle Terminals CRIMP SPECIFICATIONS: Bell mouth Conductor Brush Bend up Bend Down Twist Roll Terminal Series No. Degree Degree 98897 0.40-0.80 .016-.032 0.20-1.00 .008-.039 After crimping, the crimp profiles should measure the following (See notes below). Conductor Crimp Profile Terminal Wire Size 1.40mm...
- Page 3 4. Molex does not repair hand tools (see warranty on page 4). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 4 2. Insulated rubber handles are not protection against electrical shock. 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY Doc No: ATS-6381986HM...
- Page 5 Hand Crimp Tool: for NSCC 1.5 Receptacle Terminals APPLICATIONS FOR THE MODULAR CRIMP HEAD The chart below shows all applications for this Modular Crimp Head: Tool Tool Adapter Adapter Figure Order no. Description Order No. Description 63819-8600 Hand Crimp Tool 63816-0270 Battery Power Tool (110 V) 63816-1950 Battery Power Crimp Adapter...
- Page 6 Application Tooling Support E-Mail: toolingsupport@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. UNCONTROLLED COPY...
