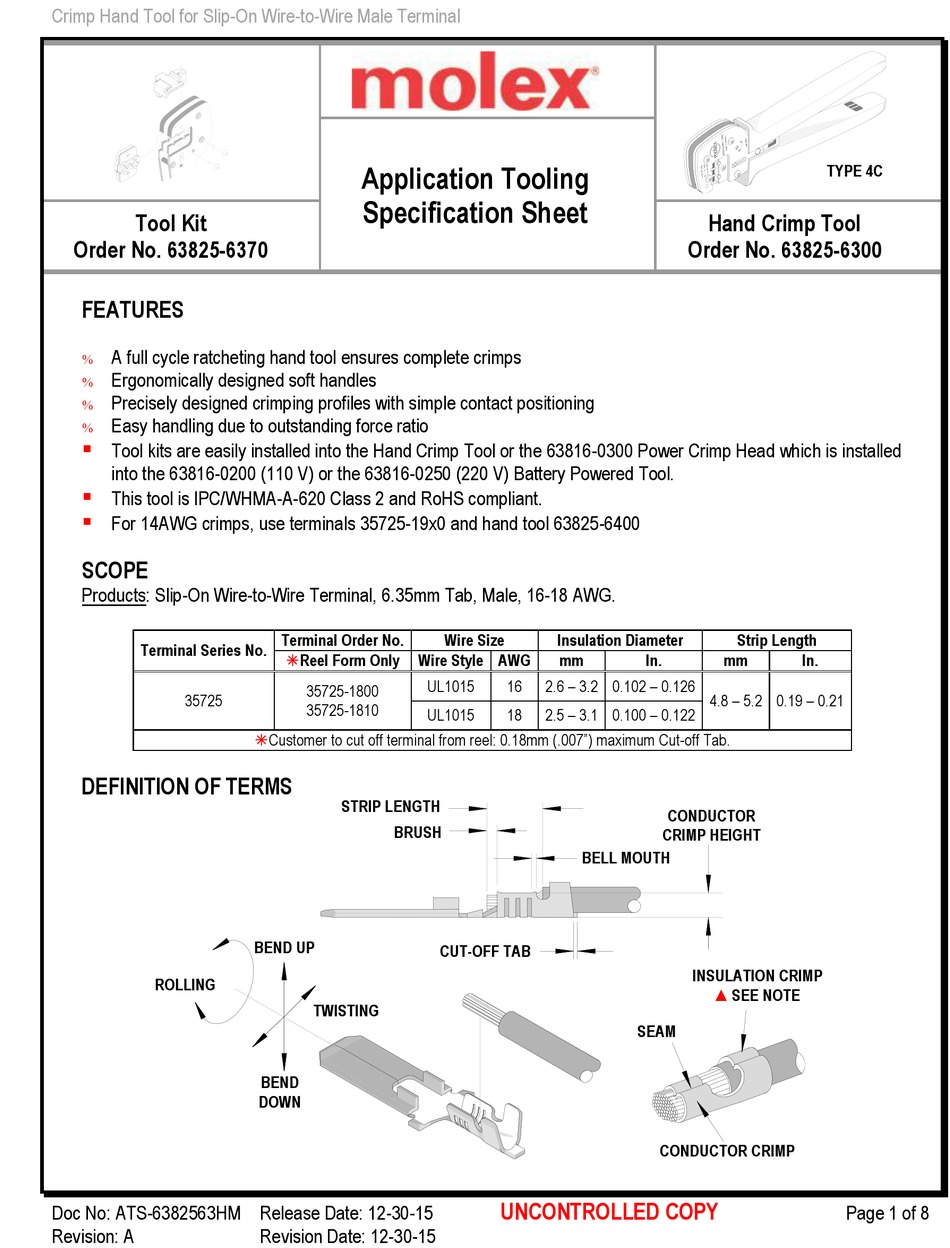

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Tool Kit
Order No. 63825-6370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
For 14AWG crimps, use terminals 35725-19x0 and hand tool 63825-6400
SCOPE
Products: Slip-On Wire-to-Wire Terminal, 6.35mm Tab, Male, 16-18 AWG.
Terminal Series No.
35725
DEFINITION OF TERMS
ROLLING
Doc No: ATS-6382563HM Release Date: 12-30-15
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
Wire Style AWG
UL1015
35725-1800
35725-1810
UL1015
Customer to cut off terminal from reel: 0.18mm (.007") maximum Cut-off Tab.
STRIP LENGTH
BRUSH
BEND UP
TWISTING
BEND
DOWN
Revision Date: 12-30-15
Wire Size
Insulation Diameter
mm
16
2.6 – 3.2 0.102 – 0.126
18
2.5 – 3.1 0.100 – 0.122
BELL MOUTH
CUT-OFF TAB
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63825-6300
Strip Length
In.
mm
In.
4.8 – 5.2 0.19 – 0.21
CONDUCTOR
CRIMP HEIGHT
INSULATION CRIMP
▲SEE NOTE
SEAM
CONDUCTOR CRIMP
TYPE 4C
Page 1 of 8
