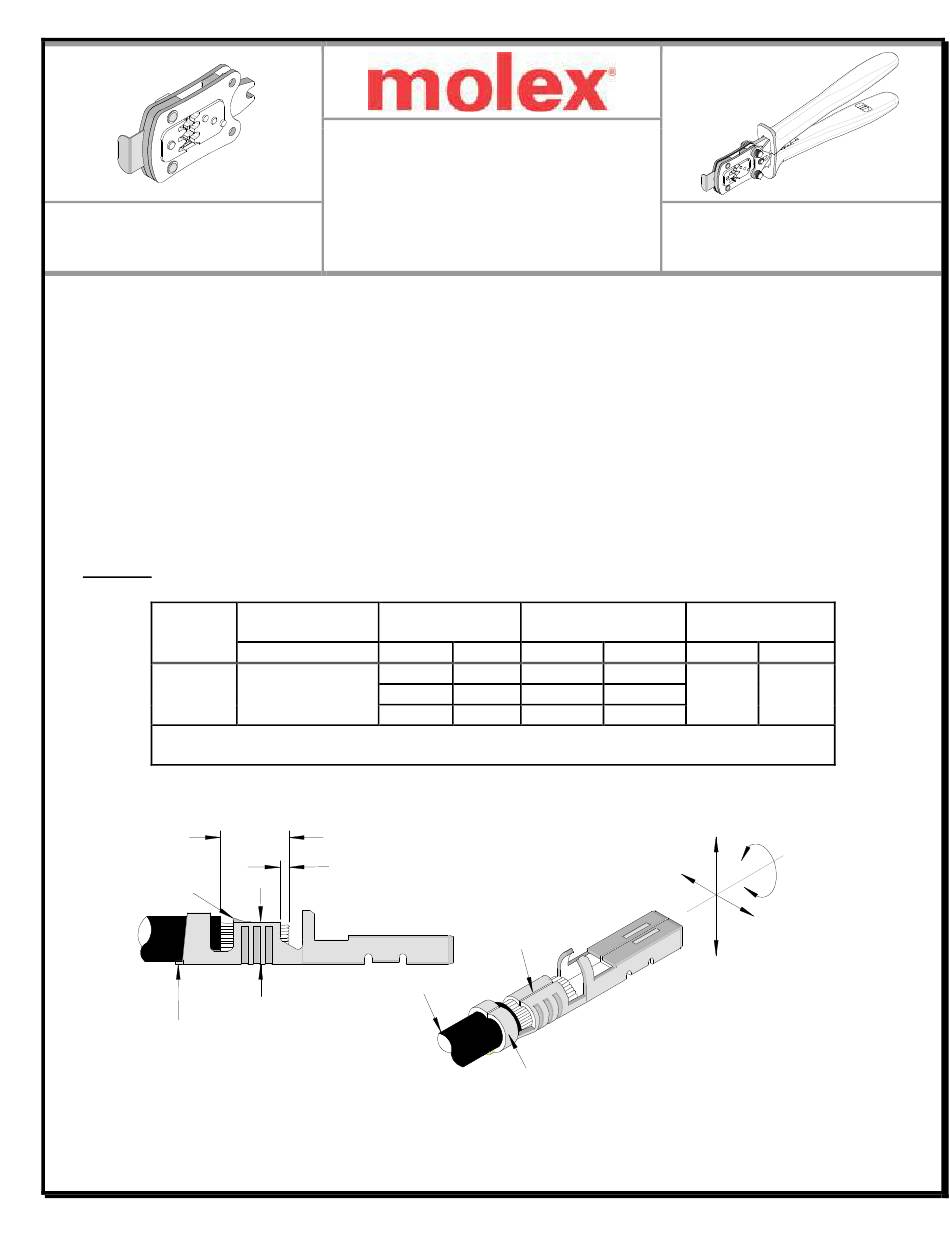

Hand Crimp Tool for 1.78mm (.070") Tab Female Crimp Terminals
Modular Crimp Head
Order No. 63827-0470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No. 63816-0200 (110 V) or 63816-0250 (220 V)
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 1.78mm (.070") Tab Female Crimp Terminals, 16-20 AWG.
Terminal
Series No.
35028
DEFINITION OF TERMS
BRUSH
CONDUCTOR
CRIMP HEIGHT
CUT-OFF
TAB
Doc No: ATS-6382704HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Wire Size and Type
(1) Reel Form Only
AWG
20
35028-1111
18
16
(1) Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
(2) See crimp specification for the individual Insulation Diameter.
STRIP LENGTH
BELL MOUTH
WIRE
Release Date: 09-13-13
Revision Date: 09-13-13
(2) Insulation Diameter
UL1007 or Equivalent
mm²
mm
In.
0.52
1.75
.069
0.82
2.03
.080
1.31
2.41
.095
SEAM
INSULATION
CRIMP HEIGHT
▲SEE NOTE
UNCONTROLLED COPY
4A
TYPE
Hand Crimp Tool
Order No. 63827-0400
Strip Length
mm
In.
420-5.00
.165-.197
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63827-0470
Summary of Contents for molex 63827-0470
- Page 1 Hand Crimp Tool for 1.78mm (.070") Tab Female Crimp Terminals TYPE Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63827-0470 Order No. 63827-0400 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 3 The insulation should be stripped long (1/2 in.) so the insulation grips on the terminal do not grip the wire insulation or the conductor. Refer to Molex Quality Crimping Handbook 63800-0029 for additional information on crimping and crimp testing.
- Page 4 2. Insulated rubber handles are not protection against electrical shock. 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. UNCONTROLLED COPY Doc No: ATS-6382704HM...
- Page 5 Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63827-0470 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter 63816-0250 Battery Power Tool (220 V) 63816-0600 Battery Power Crimp Adapter 63816-0100 Air Power Tool...
- Page 6 Crimping Spring HANDLE SPRING M4 X 14mm LONG BHCS RATCHET RELEASE LEVER CRIMPING SPRING (2) Figure 6 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382704HM Release Date: 09-13-13 Page 6 of 6 Revision: A Revision Date: 09-13-13...
