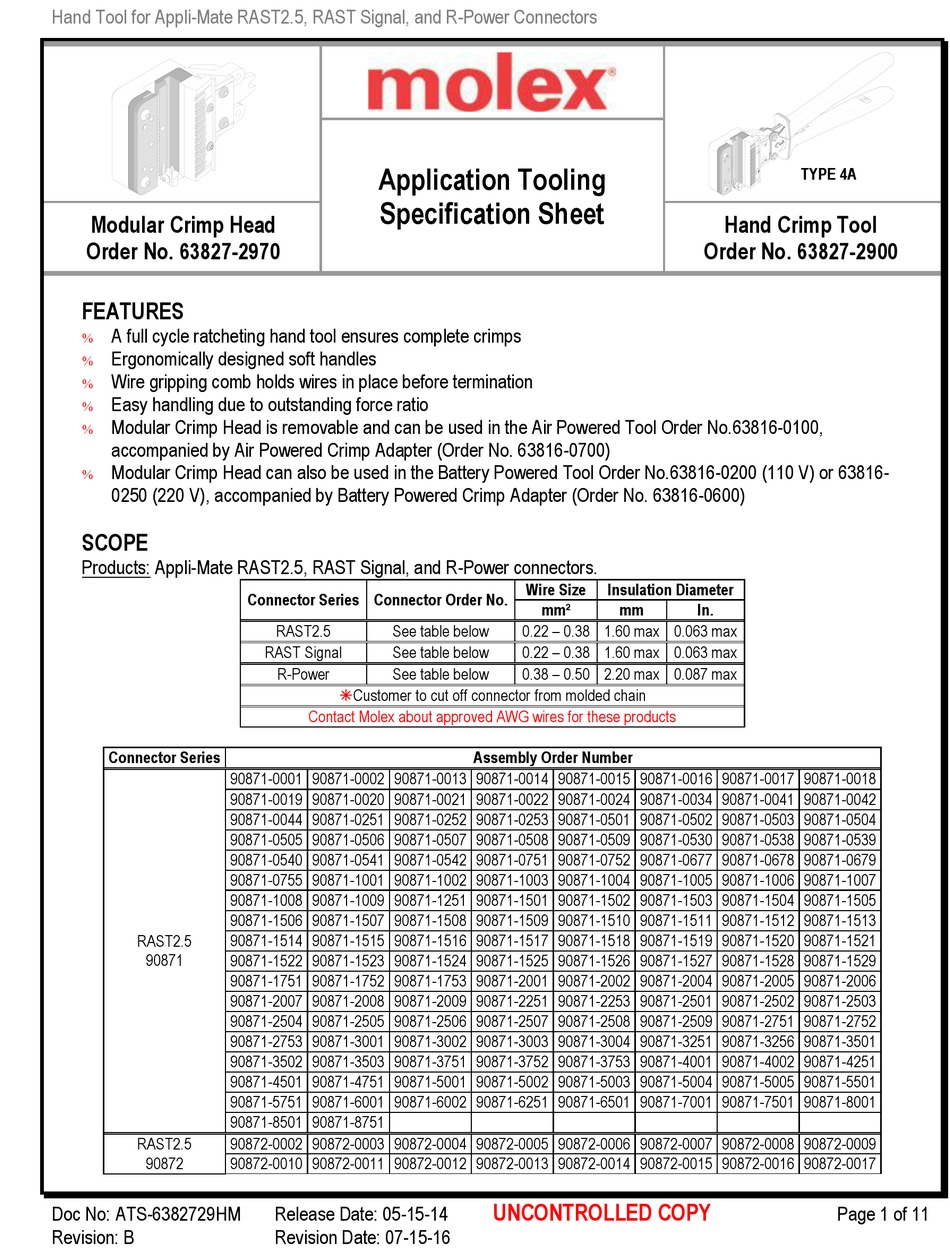

molex 63827-2970 Specification Sheet

Hand Tool for Appli-Mate RAST2.5, RAST Signal, and R-Power Connectors
Modular Crimp Head
Order No. 63827-2970
FEATURES
A full cycle ratcheting hand tool ensures complete crimps

Ergonomically designed soft handles

Wire gripping comb holds wires in place before termination

Easy handling due to outstanding force ratio

Modular Crimp Head is removable and can be used in the Air Powered Tool Order No.63816-0100,

accompanied by Air Powered Crimp Adapter (Order No. 63816-0700)
Modular Crimp Head can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-

0250 (220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: Appli-Mate RAST2.5, RAST Signal, and R-Power connectors.
Connector Series
90871-0001 90871-0002 90871-0013 90871-0014 90871-0015 90871-0016 90871-0017 90871-0018
90871-0019 90871-0020 90871-0021 90871-0022 90871-0024 90871-0034 90871-0041 90871-0042
90871-0044 90871-0251 90871-0252 90871-0253 90871-0501 90871-0502 90871-0503 90871-0504
90871-0505 90871-0506 90871-0507 90871-0508 90871-0509 90871-0530 90871-0538 90871-0539
90871-0540 90871-0541 90871-0542 90871-0751 90871-0752 90871-0677 90871-0678 90871-0679
90871-0755 90871-1001 90871-1002 90871-1003 90871-1004 90871-1005 90871-1006 90871-1007
90871-1008 90871-1009 90871-1251 90871-1501 90871-1502 90871-1503 90871-1504 90871-1505
90871-1506 90871-1507 90871-1508 90871-1509 90871-1510 90871-1511 90871-1512 90871-1513
90871-1514 90871-1515 90871-1516 90871-1517 90871-1518 90871-1519 90871-1520 90871-1521
RAST2.5
90871
90871-1522 90871-1523 90871-1524 90871-1525 90871-1526 90871-1527 90871-1528 90871-1529
90871-1751 90871-1752 90871-1753 90871-2001 90871-2002 90871-2004 90871-2005 90871-2006
90871-2007 90871-2008 90871-2009 90871-2251 90871-2253 90871-2501 90871-2502 90871-2503
90871-2504 90871-2505 90871-2506 90871-2507 90871-2508 90871-2509 90871-2751 90871-2752
90871-2753 90871-3001 90871-3002 90871-3003 90871-3004 90871-3251 90871-3256 90871-3501
90871-3502 90871-3503 90871-3751 90871-3752 90871-3753 90871-4001 90871-4002 90871-4251
90871-4501 90871-4751 90871-5001 90871-5002 90871-5003 90871-5004 90871-5005 90871-5501
90871-5751 90871-6001 90871-6002 90871-6251 90871-6501 90871-7001 90871-7501 90871-8001
90871-8501 90871-8751
RAST2.5 90872-0002 90872-0003 90872-0004 90872-0005 90872-0006 90872-0007 90872-0008 90872-0009
90872 90872-0010 90872-0011 90872-0012 90872-0013 90872-0014 90872-0015 90872-0016 90872-0017
Doc No: ATS-6382729HM
Revision: B
Application Tooling
Specification Sheet
Connector Series Connector Order No.
RAST2.5 See table below
RAST Signal See table below
R-Power See table below
Customer to cut off connector from molded chain
Contact Molex about approved AWG wires for these products
Release Date: 05-15-14
Revision Date: 07-15-16
Wire Size Insulation Diameter
mm² mm
0.22 – 0.38 1.60 max 0.063 max
0.22 – 0.38 1.60 max 0.063 max
0.38 – 0.50 2.20 max 0.087 max
Assembly Order Number
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63827-2900
In.
Page 1 of 11
