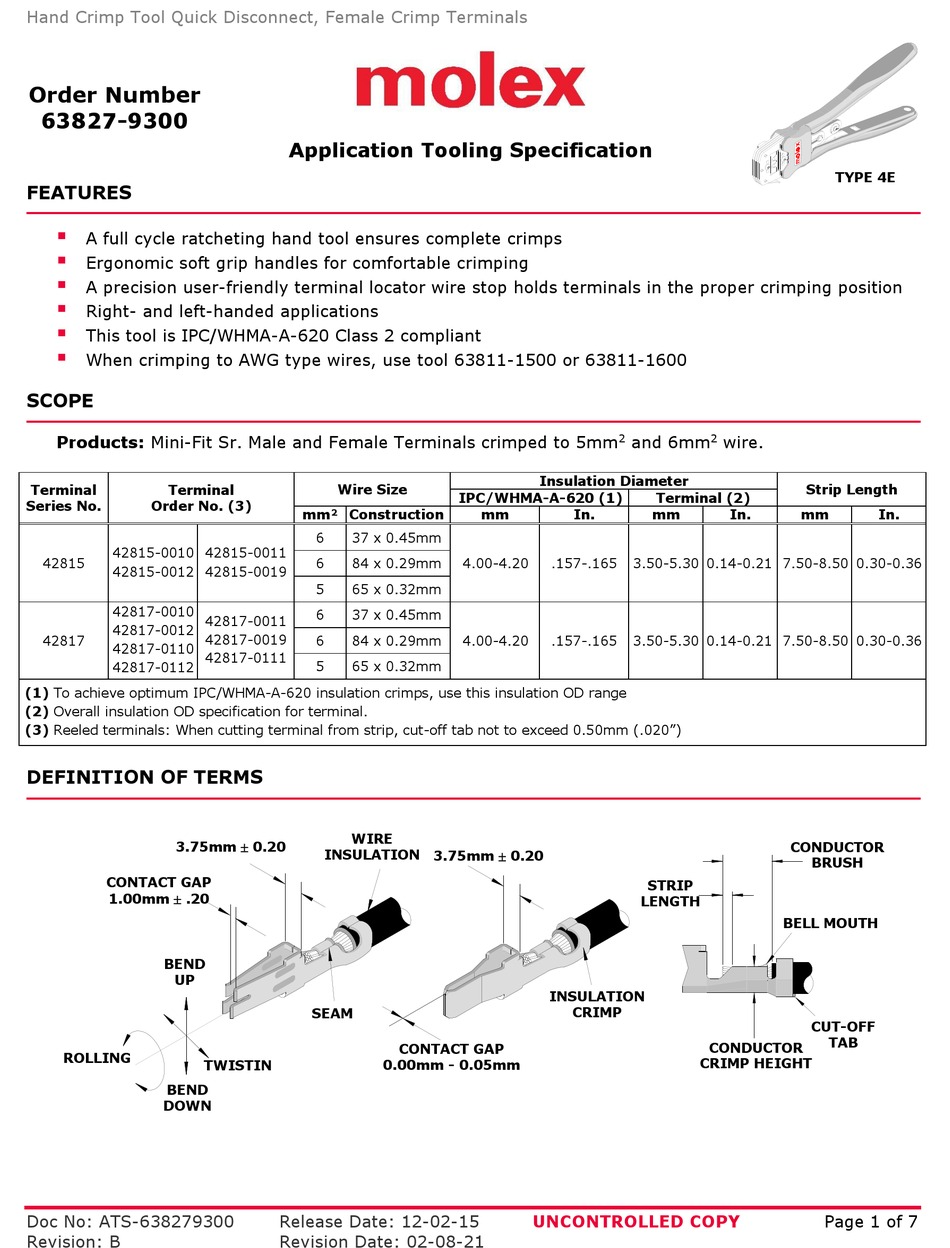

molex 63827-9300 Manual

Hand Crimp Tool Quick Disconnect, Female Crimp Terminals
Order Number
63827-9300

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Ergonomic soft grip handles for comfortable crimping

A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position

Right- and left-handed applications

This tool is IPC/WHMA-A-620 Class 2 compliant

When crimping to AWG type wires, use tool 63811-1500 or 63811-1600

SCOPE

Products: Mini-Fit Sr. Male and Female Terminals crimped to 5mm
Terminal Terminal
Series No. Order No. (3)
42815-0010
42815
42815-0012
42817-0010
42817-0012
42817
42817-0110
42817-0112
(1) To achieve optimum IPC/WHMA-A-620 insulation crimps, use this insulation OD range
(2) Overall insulation OD specification for terminal.
(3) Reeled terminals: When cutting terminal from strip, cut-off tab not to exceed 0.50mm (.020")
DEFINITION OF TERMS
3.75mm  0.20
CONTACT GAP
1.00mm  .20
BEND
UP
ROLLING
TWISTIN
BEND
DOWN
Doc No: ATS-638279300
Revision: B
Application Tooling Specification
Wire Size
mm² Construction
6 37 x 0.45mm
42815-0011
6 84 x 0.29mm
42815-0019
5 65 x 0.32mm
6 37 x 0.45mm
42817-0011
42817-0019
6 84 x 0.29mm
42817-0111
5 65 x 0.32mm
WIRE
INSULATION
SEAM
0.00mm - 0.05mm
G
Release Date: 12-02-15
Revision Date: 02-08-21
Insulation Diameter
IPC/WHMA-A-620 (1)
mm In.
4.00-4.20 .157-.165
4.00-4.20 .157-.165
3.75mm  0.20
INSULATION
CRIMP
CONTACT GAP
UNCONTROLLED COPY
2 and 6mm 2 wire.
Terminal (2)
mm In.
3.50-5.30 0.14-0.21 7.50-8.50 0.30-0.36
3.50-5.30 0.14-0.21 7.50-8.50 0.30-0.36
CONDUCTOR
STRIP
LENGTH
BELL MOUTH
CONDUCTOR
CRIMP HEIGHT
TYPE 4E
Strip Length
mm In.
BRUSH
CUT-OFF
TAB
Page 1 of 7
