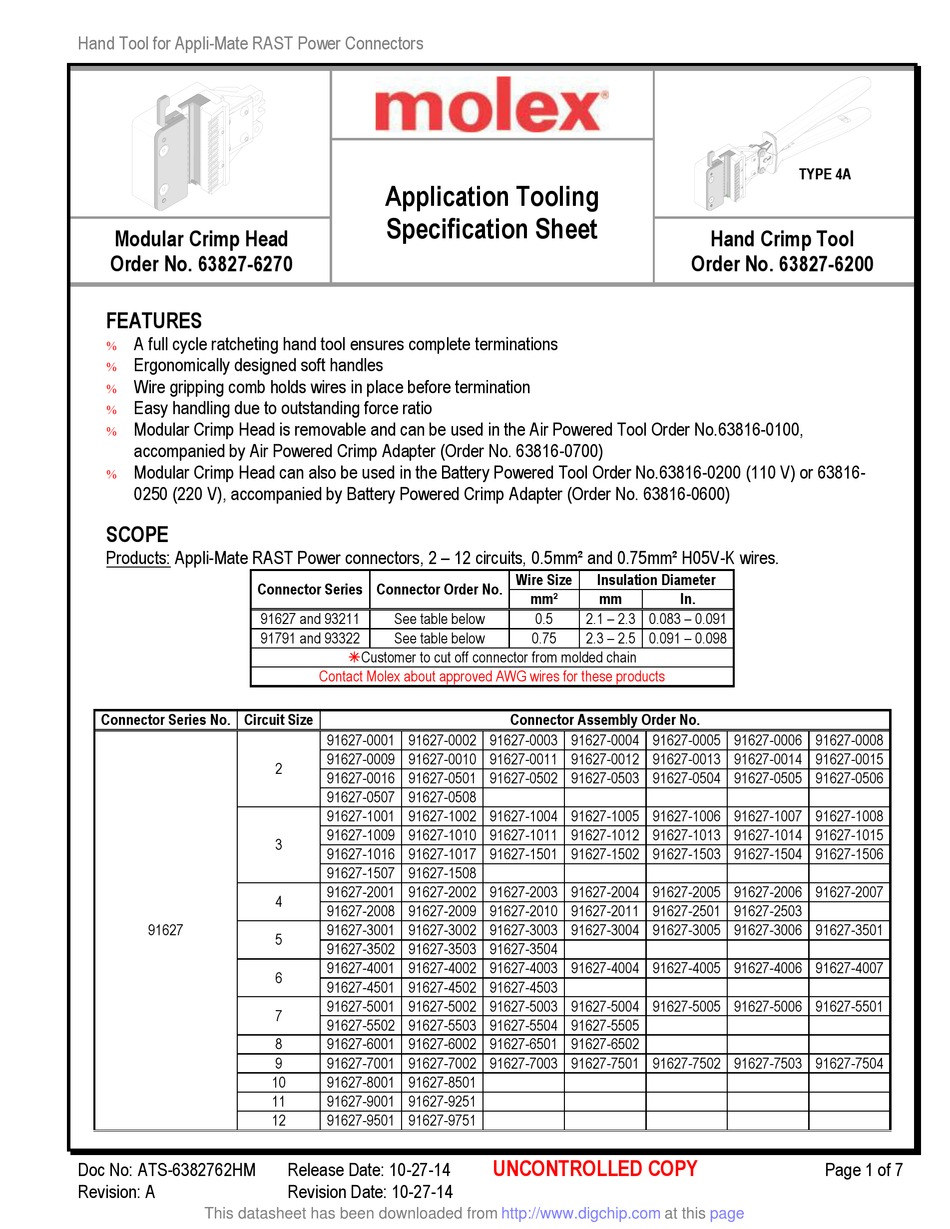

Hand Tool for Appli-Mate RAST Power Connectors
Modular Crimp Head
Order No. 63827-6270
FEATURES
A full cycle ratcheting hand tool ensures complete terminations
Ergonomically designed soft handles
Wire gripping comb holds wires in place before termination
Easy handling due to outstanding force ratio
Modular Crimp Head is removable and can be used in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700)
Modular Crimp Head can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-
0250 (220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: Appli-Mate RAST Power connectors, 2 – 12 circuits, 0.5mm² and 0.75mm² H05V-K wires.
Connector Series Connector Order No.
Connector Series No. Circuit Size
91627
Doc No: ATS-6382762HM
Revision: A
This datasheet has been downloaded from
Application Tooling
Specification Sheet
91627 and 93211
See table below
91791 and 93322
See table below
Customer to cut off connector from molded chain
Contact Molex about approved AWG wires for these products
91627-0001 91627-0002 91627-0003 91627-0004 91627-0005 91627-0006 91627-0008
91627-0009 91627-0010 91627-0011 91627-0012 91627-0013 91627-0014 91627-0015
2
91627-0016 91627-0501 91627-0502 91627-0503 91627-0504 91627-0505 91627-0506
91627-0507 91627-0508
91627-1001 91627-1002 91627-1004 91627-1005 91627-1006 91627-1007 91627-1008
91627-1009 91627-1010 91627-1011 91627-1012 91627-1013 91627-1014 91627-1015
3
91627-1016 91627-1017 91627-1501 91627-1502 91627-1503 91627-1504 91627-1506
91627-1507 91627-1508
91627-2001 91627-2002 91627-2003 91627-2004 91627-2005 91627-2006 91627-2007
4
91627-2008 91627-2009 91627-2010 91627-2011 91627-2501 91627-2503
91627-3001 91627-3002 91627-3003 91627-3004 91627-3005 91627-3006 91627-3501
5
91627-3502 91627-3503 91627-3504
91627-4001 91627-4002 91627-4003 91627-4004 91627-4005 91627-4006 91627-4007
6
91627-4501 91627-4502 91627-4503
91627-5001 91627-5002 91627-5003 91627-5004 91627-5005 91627-5006 91627-5501
7
91627-5502 91627-5503 91627-5504 91627-5505
8
91627-6001 91627-6002 91627-6501 91627-6502
9
91627-7001 91627-7002 91627-7003 91627-7501 91627-7502 91627-7503 91627-7504
10
91627-8001 91627-8501
11
91627-9001 91627-9251
12
91627-9501 91627-9751
Release Date: 10-27-14
Revision Date: 10-27-14
Wire Size
Insulation Diameter
mm²
mm
0.5
2.1 – 2.3 0.083 – 0.091
0.75
2.3 – 2.5 0.091 – 0.098
Connector Assembly Order No.
UNCONTROLLED COPY
http://www.digchip.com
at this
TYPE 4A
Hand Crimp Tool
Order No. 63827-6200
In.
Page 1 of 7
