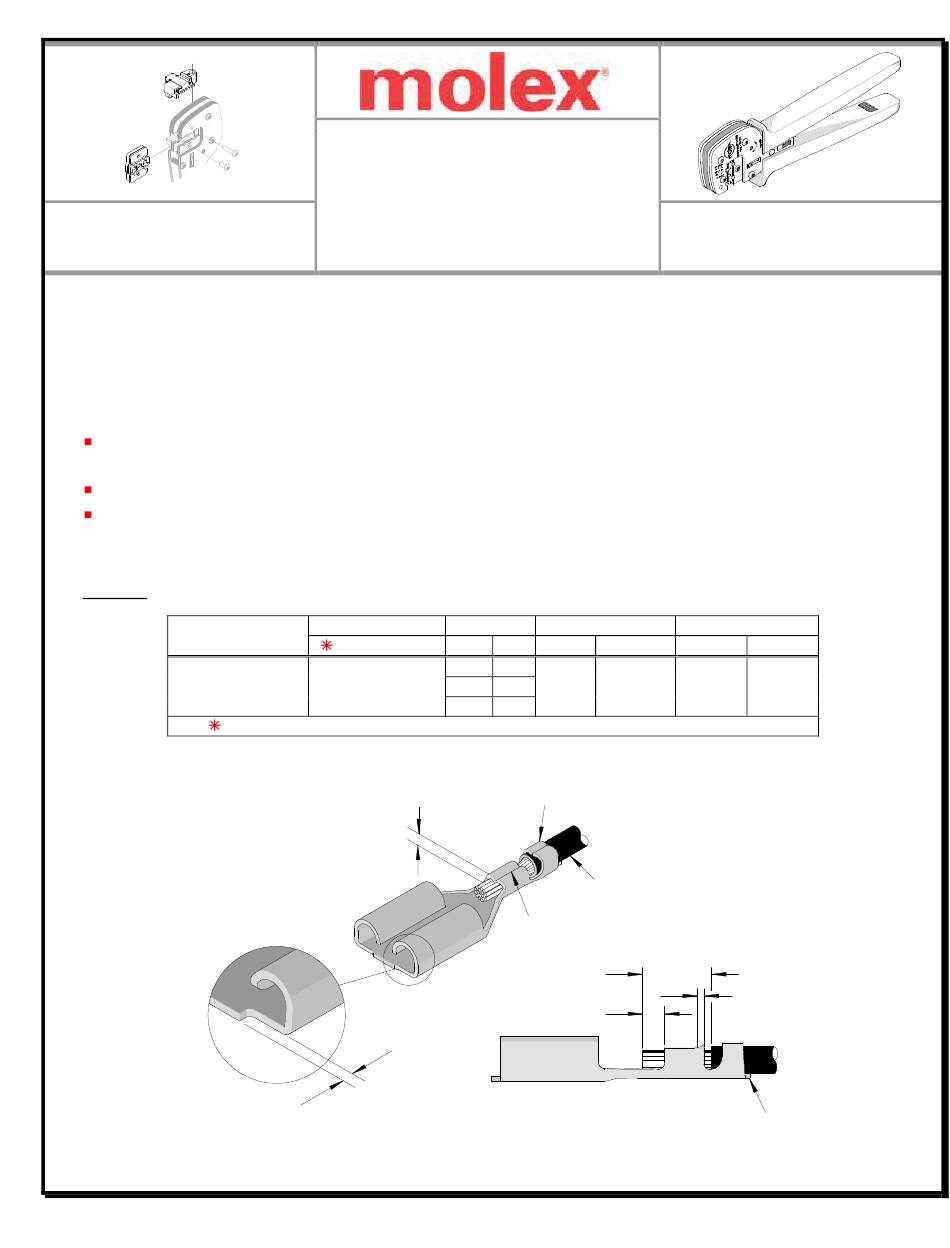

molex 63827-2100 Specification Sheet

Tool kit for 250 slip-in receptacle terminals
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Tool Kit for 250 Slip-in Receptacle Terminals
Tool Kit
Order No. 63827-2170
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: .250 Slip-in Receptacle Terminals for 14-18 AWG Wire.
Terminal Series No.
35725
Customer to cut off terminal from reel: Front and Rear Cut-off Tab 0.50mm (.020") maximum.
DEFINITION OF TERMS
Doc No: ATS-6382721HM Release Date: 12-13-13
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
35725-2400
35725-2410
35725-2411
CONDUCTOR
CRIMP HEIGHT
FRONT
CUT-OFF TAB
Revision Date: 12-13-13
Wire Size
Insulation Diameter
AWG mm²
mm
In.
14
2.00
16
1.30
3.2-3.8
.126-..150 6.00-6.80 .236-.268
18
0.80
INSULATION
CRIMP
▲
WIRE
SEAM
BRUSH
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63827-2100
Strip Length
mm
In.
STRIP LENGTH
BELL MOUTH
REAR CUT-OFF TAB
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63827-2100 and is the answer not in the manual?

Questions and answers

Related Manuals for molex 63827-2100

Summary of Contents for molex 63827-2100

  • Page 1 Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63827-2170 Order No. 63827-2100 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

  • Page 2: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Operation

    Tool Kit for 250 Slip-in Receptacle Terminals Locator Installation and Removal Follow the steps below to install or replace the locator. See Figure 2. LIFT UP ON To install the locator THE LOCATOR 1. Position the locator with the hole over the brass pivot shaft and snap it into place.

  • Page 4: Maintenance

    Tool Kit for 250 Slip-in Receptacle Terminals HANDLE WIRE AGAINST OPEN WIRE STOP TERMINAL WIRE IN TERMINAL JAWS PARTIALLY CLOSED LOCATOR CLOSED PUSH HERE TO OPEN WIRE STOP Figure 5 Figure 6 5. Return the locator to its original position. CONDUCTOR INSULATION 6.

  • Page 5: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 Tool Kit for 250 Slip-in Receptacle Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure No. Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63827-2170 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head...

  • Page 7: Hand Tool Parts List

    Tool Kit for 250 Slip-in Receptacle Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63827-2170 Tool Kit with Locator 63811-4773 Locator Base 63827-2175 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY M4 X 10mm...

  • Page 8: Power Head Parts List

    M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382721HM Release Date: 12-13-13 Page 8 of 8 Revision: A Revision Date: 12-13-13...
