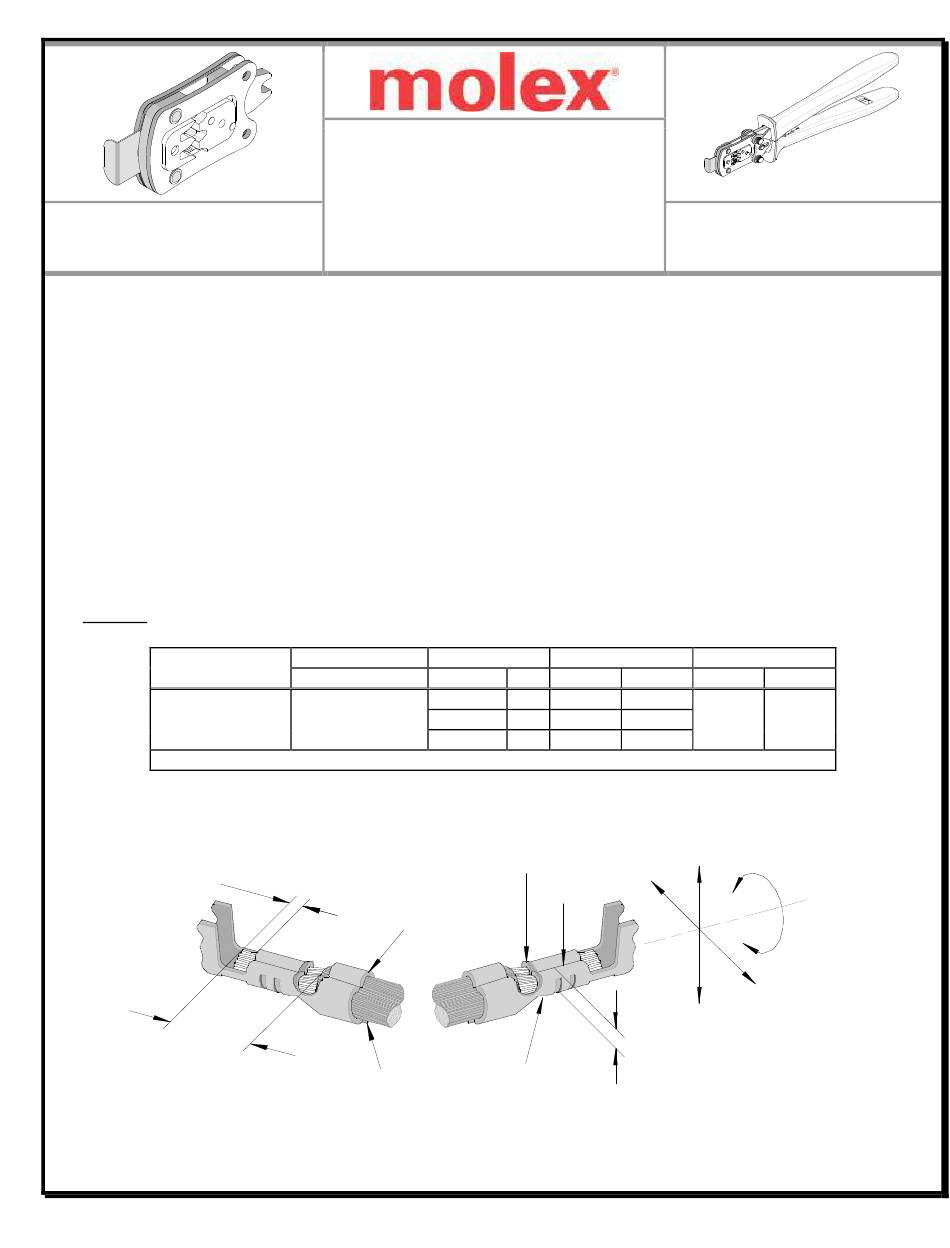

Hand Crimp Tool for .187 Receptacle Terminal
Modular Crimp Head
Order No. 63827-0670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 2 compliant as indicated and RoHS compliant
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63813-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products:
.187 Receptacle
Terminal Series No.
35441
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
This illustration is a generic terminal representation and not an exact image of any terminal listed in the scope.
Doc No: ATS-6382706HM
Revision: A
Application Tooling
Specification Sheet
Terminal, 2.0-3.0mm².
Terminal Order No.
(1) Reel
35441-9902
(1) Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF TAB
Release Date: 12-20-13
Revision Date: 12-20-13
Wire Size
Insulation Diameter
Wire Type mm²
mm
AVS
2.0
2.90-3.10 .114-.122
AVSS
2.0
2.60-2.70 .102-.106
AVS
3.0
3.60-3.80 .141-.150
BELL MOUTH
SEAM
CONDUCTOR
CRIMP
COND.CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63827-0600
Strip Length
In.
mm
In.
4.20-5.00 .165-.197
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for molex 63827-0600
Summary of Contents for molex 63827-0600
- Page 1 TYPE 4A Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63827-0670 Order No. 63827-0600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio A-620 Class 2 compliant as indicated and RoHS compliant Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 3 Hand Crimp Tool for .187 Receptacle Terminal OPERATION Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. Crimping Terminals CONDUCTOR PUNCH WIRE STOP BLADE INSULATION...
- Page 4 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet.
- Page 5 Hand Crimp Tool for .187 Receptacle Terminal The chart below shows all applications for this Modular Crimp Head. Modular Crimp Head Tool Tool Adapter Adapter Figure Order No. Order no. Description Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63827-0670 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter 63816-0250 Battery Power Tool (220 V) 63816-0600 Battery Power Crimp Adapter...
- Page 6 Crimping Spring HANDLE SPRING M4 X 14mm LONG BHCS RATCHET RELEASE LEVER CRIMPING Figure 6 SPRING (2) Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382706HM Release Date: 12-20-13 Page 6 of 6 Revision: A Revision Date: 12-20-13...
