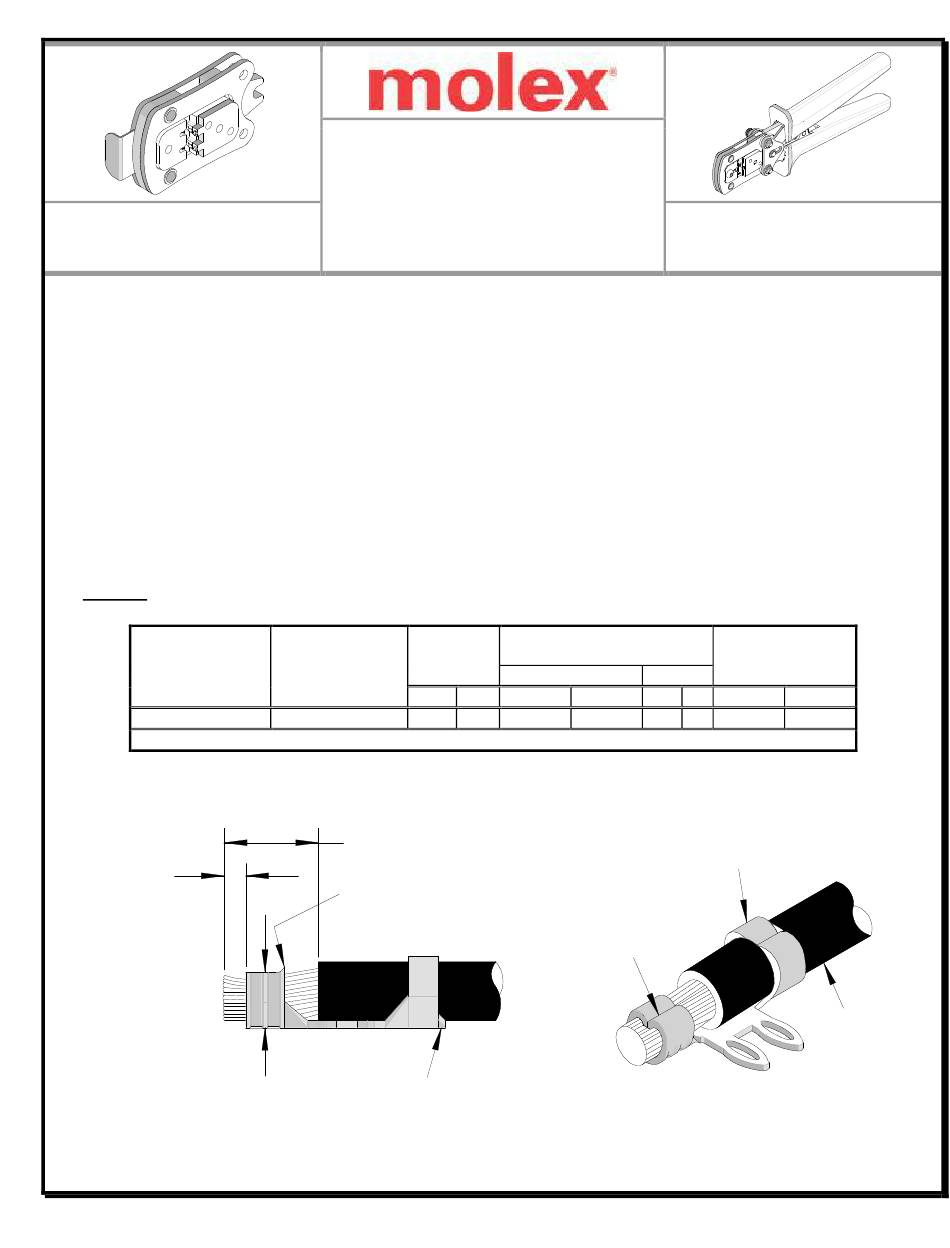

Hand Crimp Tool for Solder Right In-Board Terminals
Modular Crimp Head
Order No. 63827-3170
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: Solder Right In-Board Terminals, 18-20 AWG.
Terminal Series No. Terminal Order No.
172249
(1) To achieve optimum IPC-A620 Class 2 insulation crimps, use this insulation OD.
DEFINITION OF TERMS
BRUSH
CONDUCTOR
CRIMP HEIGHT
Doc No: ATS-6382731HM
Revision: A
Application Tooling
Specification Sheet
Wire Size
AWG mm²
172249-0200
18-20
STRIP LENGTH
BELL MOUTH
CUT-OFF TAB
Release Date: 08-21-14
Revision Date: 08-21-14
♦Insulation Diameter
UL1007 Wire is Recommended
IPC/WHMA-A620 (1) Terminal
mm
In.
mm In.
-
1.70-2.10 .067-.083
SEAM
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63827-3100
Strip Length
mm
In.
-
-
5.50-5.80 .216-.228
INSULATION CRIMP
WIRE
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63827-3170
Summary of Contents for molex 63827-3170
- Page 1 TYPE 4A Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63827-3170 Order No. 63827-3100 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 4. Molex does not repair hand tools (see Warranty on page 3). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 3 Hand Crimp Tool for Solder Right In-Board Terminals Maintenance It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps: INSULATION CONDUCTOR PUNCH 1. Remove dust, moisture, and other contaminants with a clean PUNCH brush, or soft, lint free cloth.
- Page 4 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet.
- Page 5 Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63827-3170 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter 63816-0250 Battery Power Tool (220 V) 63816-0600 Battery Power Crimp Adapter 63816-0100 Air Power Tool...
- Page 6 Crimping Spring HANDLE SPRING RATCHET RELEASE LEVER M4 X 20mm LONG BHCS Figure 6 CRIMPING SPRING (2) Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382731HM Release Date: 08-21-14 Page 6 of 6 Revision: A Revision Date: 08-21-14...
