- Page 1 MANUAL ENGLISH ACT Fresnel 50 WW Order code: 34011 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
ACT Fresnel 50 WW Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 5 Angle Adjustment ..............................5 Connection with the Mains ............................6 Return Procedure ................................6 Claims ....................................6 Description of the Device ..............................7 Features .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture will be returned in the original factory box and packing. Your shipment includes: ● Showtec ACT Fresnel 50 WW ● Barndoor ● Color frame ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
ACT Fresnel 50 WW ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. ● Repairs, servicing and electric connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. -
Page 6: Rigging
ACT Fresnel 50 WW Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself! Always let the installation be carried out by an authorized dealer! Procedure: ● If the device is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Connection With The Mains
ACT Fresnel 50 WW Connection with the Mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER... -
Page 8: Description Of The Device

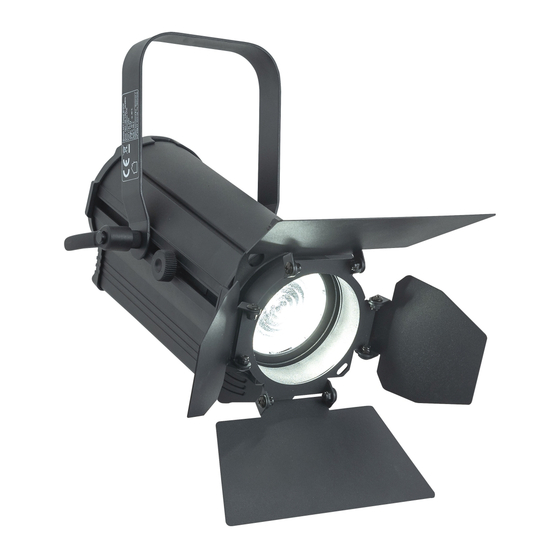

Description of the Device Features The Showtec ACT Fresnel 50 WW is a compact theater spot suitable for galleries, museums, exhibition halls, and theaters, where high CRI performance is essential. The device is equipped with a high quality molded-glass Fresnel lens. - Page 9 ACT Fresnel 50 WW Backside Fig. 03 09) Control panel: OLED display and control buttons 10) 3-pin DMX signal connector OUT 11) Fuse T1 AL/250 V AC 12) Pro-power connector OUT 100–240 V, 7A, 50/60 Hz (Gray) 13) Pro-power connector IN 100–240 V, 7A, 50/60 Hz (Blue)
-
Page 10: Installation
Maximum recommended number of fixtures on a power link @ 240 V: 15 fixtures Beam Angle Adjustment The beam angle of the ACT Fresnel 50 WW can be adjusted manually in the range 10°–58°. To adjust the beam angle, follow the steps below: 01) Turn the zoom control (05) counterclockwise to loosen it. -
Page 11: Barndoor Installation
ACT Fresnel 50 WW. Color Frame Installation The ACT Fresnel 50 WW is delivered with a color frame. You can insert a color gel or a diffusion filter into the color frame. To install the color frame, follow the steps below: 01) Push the spring-loaded screw (01) and at the same time lift the color frame clip (02) and flip it backwards (see Fig. -
Page 12: Control Modes
ACT Fresnel 50 WW Control Modes There are 2 modes: ● Manual control ● DMX-512 (1CH, 2CH) One ACT Fresnel (Manual Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Act Fresnels (Dmx Control)
ACT Fresnel 50 WW Multiple ACT Fresnels (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Secure the device with a safety cable (order code 70140 / 70141). -
Page 14: Fixture Linking
ACT Fresnel 50 WW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
ACT Fresnel 50 WW Control Panel A) OLED display B) ENTER button C) DOWN button D) UP button E) MENU button Fig. 14 DMX Addressing The control panel on the back side of the fixture allows you to assign the fixture a DMX address, which is the first channel with which the ACT Fresnel will respond to a DMX controller. -
Page 16: Main Menu Overview
ACT Fresnel 50 WW Main Menu Overview Order code: 34011... -
Page 17: Start-Up
ACT Fresnel 50 WW Start-up Upon start-up the display will show a splash screen with the name of the device: Immediately afterwards, the display will show the start screen. The start screen provides information about the current control mode of the device and the temperature of the LEDs. -
Page 18: Dmx Address
ACT Fresnel 50 WW 1.1 DMX Address In this pop-up submenu you can set the starting DMX address of the device. 01) Press the UP/DOWN buttons to select the starting DMX address of the device. The selection range is between 1 and 512. -
Page 19: Manual Settings
ACT Fresnel 50 WW 2. Manual Settings In this menu you can select how the device will be operated manually. 01) Press the ENTER button to open the pop-up submenu for the manual mode settings. 02) Press the UP/DOWN buttons to select one of the following 2 options: ●... -
Page 20: Display Settings
ACT Fresnel 50 WW 4. Display Settings In this menu you can adjust the display settings of the device. 01) Press the UP/DOWN buttons to scroll through the following options: 02) Press the ENTER button to confirm the selection and open the pop-up submenu where you can adjust the settings. -
Page 21: Fixture Information
ACT Fresnel 50 WW 6. Fixture Information In this menu you can view the LED operating hours and the firmware version of the device. 01) Press the UP/DOWN buttons to select one of the following 2 options: ● Fixture Hour: Provides information about the total hours of operation of the LEDs ●... -
Page 22: Dmx Channels
ACT Fresnel 50 WW DMX Channels 1 Channel Channel 1 – Dimmer 0–255 Gradual adjustment of the brightness, from low to high intensity (0–100 %) 2 Channels Channel 1 – Dimmer CH2 must be open 0–255 Gradual adjustment of the brightness, from low to high intensity (0–100 %) Channel 2 –... -
Page 23: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The ACT Fresnel 50 WW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. - Page 24 ACT Fresnel 50 WW Problem Probable cause(s) Solution ● Check if power is switched on and One or more fixtures No power to the fixture cables are plugged in do not function at all Primary fuse blown ● Replace fuse...
-
Page 25: Product Specifications
ACT Fresnel 50 WW Product Specifications Model: Showtec ACT Fresnel 50 WW Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 57 W Fuse: T1 AL/250 V AC Dimensions: 245 x 165 x 239 mm (L x W x H) (without accessories) -
Page 26: Dimensions
ACT Fresnel 50 WW Dimensions Order code: 34011... - Page 27 ACT Fresnel 50 WW Order code: 34011...
- Page 28 ©2020 Showtec...
