- Page 1 MANUAL ENGLISH Phantom 3R Hybrid Ordercode: 40074 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Phantom 3R Hybrid Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Phantom 3R Hybrid Pro power cable (1,5 m) ... - Page 4 If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Phantom 3R Hybrid Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light output and the illuminated surface must be bigger than 10 meters. -
Page 6: Connection With The Mains
Phantom 3R Hybrid Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL... -

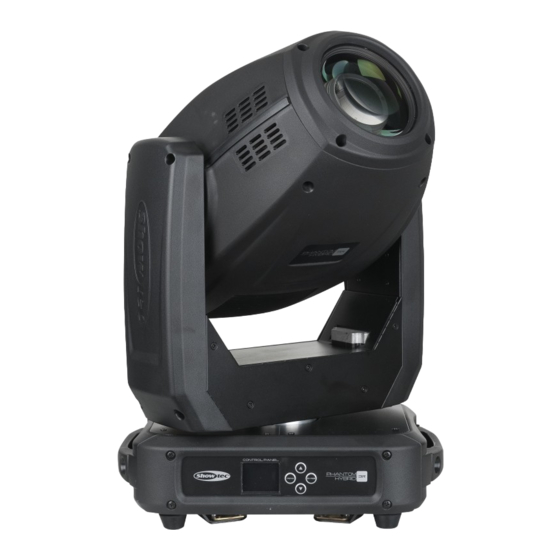

Page 7: Description Of The Device
Fuse: F5AL/250V • Dimensions: 325 x 210 x 505 mm (LxWxH) • Weight: 16,7 kg Optional accessories: 82623 – Showtec YODN R3 Lamp, 150W Frontside Fig. 01 01) 1 x YODN R3/150W 02) LCD display + control buttons Ordercode: 40074... -
Page 8: Backside
Damages caused by non-observance are not subject to warranty. Installing the Lamp The Showtec Phantom 3R Hybrid uses the R3 lamp, 150W (ordercode 82623). Use only the appropriate lamp for your unit. Note that product versions, that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Set Up And Operation
Phantom 3R Hybrid Fig. 03 Fig. 04 Fig. 05 Fig. 06 Fig. 07 Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 10: Control Modes
Phantom 3R Hybrid Control Modes There are 5 modes: • Stand-alone (Auto) • Manual • Sound-controlled • Master/Slave • DMX-512 (14CH, 19CH) One Phantom (Auto, Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Multiple Phantoms (Dmx Control)
Phantom 3R Hybrid Multiple Phantoms (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Phantoms and other devices. 04) Link the units as shown in fig. -
Page 12: Fixture Linking
Phantom 3R Hybrid Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Phantom 3R Hybrid The Phantom 3R Hybrid can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display UP button C) ENTER button D) DOWN button MENU button Fig. 10 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Menu Overview
Phantom 3R Hybrid Menu Overview Ordercode: 40074... -
Page 15: Main Menu Options
Phantom 3R Hybrid Main Menu Options DMX Addressing DMX mode / Master-Slave / Auto / Sound-controlled / Manual Pan and Tilt Reverse / Screen Reverse / Pan and Tilt Angle / Sound Sensitivity / Wireless Enable / Wireless Unlink / Lamp Settings / Maintenance / Reset / Factory Reset System Information Upon start-up, the device will show its currently active mode, as well as the information concerning Pan... -
Page 16: Built-In Programs Mode
Phantom 3R Hybrid Built-in Programs Mode You can run the auto programs when using the Phantom. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to select one of the 5 modes: 1. -
Page 17: Manual Mode
Phantom 3R Hybrid 5. Manual Mode 01) Press the UP/DOWN buttons until the display shows MANUAL. 02) Press the ENTER button to activate the Manual mode. 03) The display will show: 04) Press the UP/DOWN buttons to choose one of the following options: ... -
Page 18: Advanced Settings
Phantom 3R Hybrid Advanced Settings 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) The display will show: 04) Press the UP/DOWN buttons to toggle between the following options: ... -
Page 19: Lamp Settings
Phantom 3R Hybrid 1. Lamp Settings 01) If you have chosen LAMP SETTINGS (in step 4, page 17), the display will show: 02) Press the UP/DOWN buttons to toggle between the following options: On/Off (switch the lamp on and off, ON/OFF) ... -
Page 20: System Information
Phantom 3R Hybrid System Information In this menu you can see the currently active mode, the DMX starting address, the current software version, lamp on time (lamp’s operating hours) and remain time (time which needs to pass before a safety check should take place). 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu and view the parameters. - Page 21 Phantom 3R Hybrid Channel 5 – Color wheel CH3 must be open and CH4 must be set between 8-15 or 251-255 Linear color change following the movement of the slider. Between 188-219 and 224-255, the color wheel rotates continuously (so-called “Rainbow” effect). Open / White 8-11 Yellow...
- Page 22 Phantom 3R Hybrid 75-78 Gobo Shake 10 from slow to fast 79-82 Gobo Shake 9 from slow to fast 83-86 Gobo Shake 8 from slow to fast 87-90 Gobo Shake 7 from slow to fast 91-94 Gobo Shake 6 from slow to fast 95-98 Gobo Shake 5 from slow to fast 99-102...
-
Page 23: Channels
Phantom 3R Hybrid Channel 10 – Prism 2 + rotation Not functional 8-12 Prism 13-130 Clockwise rotation (CW) prism effect, from slow to fast 131-247 Counterclockwise rotation (CCW) prism effect, from slow to fast 248-255 Prism Channel 11 – Focus 0-255 Continuous adjustment Channel 12 –... - Page 24 Phantom 3R Hybrid Channel 6 – Dimmer intensity 0-255 From dark to brightest Channel 7 – Shutter/Strobe Not functional 8-15 Shutter open 16-131 Synchronized strobe, from low to high frequency 132-167 Fast close/slow open strobe, from low to high frequency 168-203 Slow close/fast open strobe, from low to high frequency 204-239...
- Page 25 Phantom 3R Hybrid Channel 9 – Static gobo wheel + gobo shake Open / White Gobo 1 Gobo 2 9-11 Gobo 3 12-14 Gobo 4 15-17 Gobo 5 18-20 Gobo 6 21-23 Gobo 7 24-26 Gobo 8 27-29 Gobo 9 30-32 Gobo 10 33-35...
- Page 26 Phantom 3R Hybrid 110-115 Gobo Shake 1 from slow to fast 116-127 Open / White 128-189 Clockwise rotation (CW) rainbow effect, from fast to slow 190-193 Stop 194-255 Counterclockwise rotation (CCW) rainbow effect, from slow to fast Channel 11 – Gobo rotation 0-63 Gobo indexing 64-145...
- Page 27 Phantom 3R Hybrid 144-151 Focus/zoom reset 152-159 Reset all 160-167 Strobe reset 168-231 Not functional 232-239 Lamp off 240-255 Not functional Channel 19 – Built-in programs + sound-controlled programs Not functional 8-23 Built-in Program 1 24-39 Built-in Program 2 40-55 Built-in Program 3 56-71 Built-in Program 4...
-
Page 28: Maintenance
Phantom 3R Hybrid Maintenance The operator has to make sure that safety-related and machine-technical installations are to be inspected by an expert after every year in the course of an acceptance test. The operator has to make sure that safety-related and machine-technical installations are to be inspected by a skilled person once a year. -
Page 29: Glass Gobo Orientation
Phantom 3R Hybrid Fig. 12 03) Remove the lamp cover by unscrewing the 4 screws (see fig. 12). 04) Gently tilt the head so that the small metal housing can slide out more easily. 05) Turn the gobo wheel, with the gobo you want to remove, to the upside. 06) Gently lift up the gobo holder by 10º... -
Page 30: Static Gobo Wheel + Rotating Gobo Wheel + Color Wheel
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Phantom, as this may damage the unit and the warranty will become void. 06) Return the device to your Showtec dealer. Ordercode: 40074... -
Page 31: No Response To Dmx
Phantom 3R Hybrid No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 32: Product Specifications
Pin 1 (earth), pin 2 (-), pin 3 (+) DMX Mode: 14, 19 channels Signal input: 3-pin XLR IN Signal output: 3-pin XLR OUT Allowed lamp models* 82623 – Showtec YODN R3 Lamp, 150W Electro-mechanical effects: Focus: Motorized focus Zoom: Motorized zoom Beam angle: 3-20º Dimmer:... -
Page 33: Dimensions
Phantom 3R Hybrid Dimensions Ordercode: 40074... -
Page 34: Notes
Phantom 3R Hybrid Notes Ordercode: 40074... - Page 35 Phantom 3R Hybrid Ordercode: 40074...
- Page 36 ©2017 Showtec...
