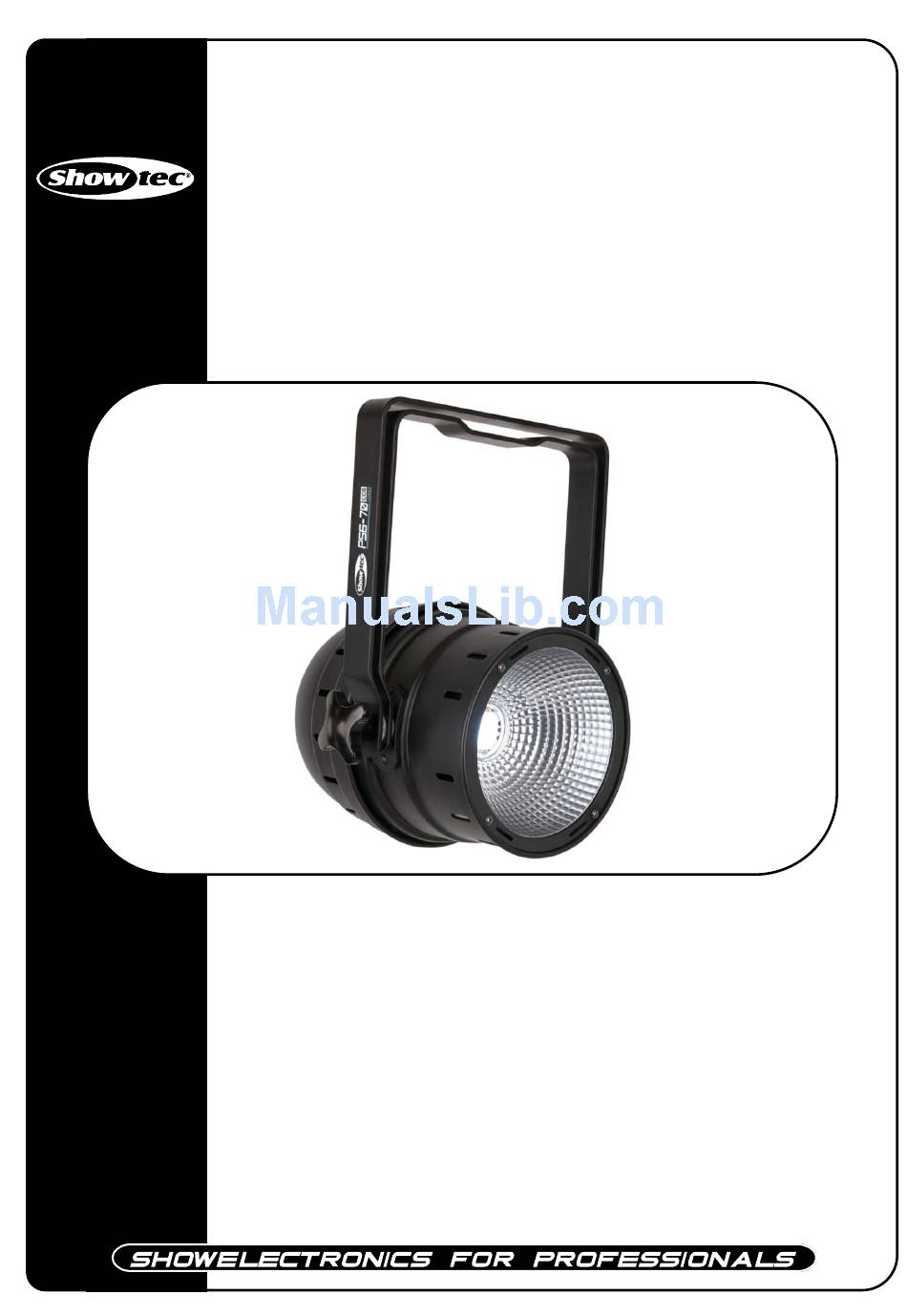

- Page 1 Par 56 70W COB White ORDERCODE 43301 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 You have bought a great, innovative product from Showtec. The Showtec Par 56 70W COB White brings excitement to any venue. Whether you want simple plug -&- play action or a sophisticated DMX show, this product provides the effect you need.
-
Page 3: Table Of Contents
Backside ..............................7 Set Up and Operation............................. 7 Control Modes............................7 One Par 56 70W COB White (Built-in Programs) ..................7 One Par 56 70W COB White (Dimming Mode)..................7 Multiple LED Pars (Master/Slave control) ....................8 Multiple LED Pars (DMX Control)......................8 Fixture Linking ............................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Par 56 70W COB White with 1,30m powercable • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 This device can be installed on a flat surface or onto truss systems via the mounting bracket. The user is responsible for correct positioning and operating of the Par 56 70W COB White. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
Mounting the Par 56 70W COB White with a clamp or any other mounting bracket is recommended, depending on the requirements of your application. The Par 56 70W COB White can be placed on a flat stage floor or mounted to any kind of truss by a clamp. -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description Of The Device
Description of the device Features The Showtec Par 56 70W COB White is a LED parcan with high output and great effects. • Never change lamps again! • COB is a new technology of LED packaging for LED light engines •... -
Page 9: Backside
2. Always use a safety cable (ordercode 70140 / 70141). Plug the end of the electric mains power cord into a proper electric power supply socket. 4. When the Par 56 70W COB White is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 10: Multiple Led Pars (Master/Slave Control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Par 56 70W COB White. The pins:... -
Page 11: Fixture Linking
Link the units as shown in (figure 5), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. -
Page 12: Control Panel
DMX Addressing The control panel on the front side of the Par 56 70W COB White allows you to assign the DMX fixture address, which is the first channel from which the Par 56 70W COB White will respond to the controller. -
Page 13: Menu Overview
In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3/5 -pin DMX cable and the DMX controller must be turned on. The Par 56 70W COB White system can operate as a 1 or 2-channel DMX fixture. -
Page 14: Built-In Programs
1. Built-in Programs 1) Press the MODE button on the device, until the display shows 2) With this menu you can set the Built-in Program Mode of the Par 56 COB. 3) Press and hold the MODE button to enter the built-in programs Menu. You can choose 2 different sub menus: Program Speed 01-99 and Full On Program Flash speed from 00-99... -
Page 15: Dmx Channels
DMX Channels 1 Channel Channel 1 – Master Dimmer 0-255 Brightness from 0 to 100% 2 Channels Channel 1 – Master Dimmer 0-255 Brightness from 0 to 100% Channel 2 – Strobe, only when CH1 is set between 1-255 0-19 No function 20-255 Strobe, from slow to fast... -
Page 16: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fati gue. The Showtec Par 56 70W COB White requires almost no maintenance. However, you should keep the unit clean. - Page 17 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 18: Product Specification
Product Specification Model: Showtec Par 56 70W COB White • Never change lamps again! • COB is a new technology of LED packaging for LED light engines • Possible to achieve a very high light output without narrowing the beam angle •...
