- Page 1 MANUAL ENGLISH Infinity iB-2R Ordercode: 41531 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Infinity iB-2R Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................6 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Backside .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Infinity iB-2R LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting ●... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Infinity iB-2R Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be more than 1 meter. - Page 6 Infinity iB-2R Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41531...
-
Page 7: Connection With The Mains
Infinity iB-2R Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 8: Description Of The Device

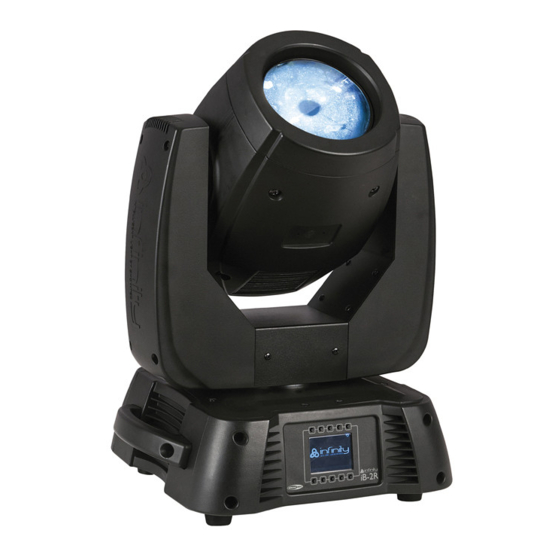

Infinity iB-2R Description of the device Features The Showtec Infinity iB-2R is a moving-head with high output and great effects. ● Beam effect ● High torque motors ● Ultra-fast movements ● Quick lock screws on the covers ● On-Board: Battery powered full color display including gravity sensor ●... -
Page 9: Overview
NOTE: Knowledge of DMX is required to fully utilize this unit. Installation Remove all packing materials from the Infinity iB-2R. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Multiple Infinity's (Dmx Control)
Infinity iB-2R Multiple Infinity’s (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. -
Page 11: Fixture Linking
Infinity iB-2R Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Infinity iB-2R Control Panel Home button Edit Menu button Settings Mode Button Address Setting Button Infinity Logo Button Up Button Down Button OK/ENTER Left Button Right Button LCD Display Fig. 04 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 13: Menu Overview
Infinity iB-2R Menu Overview Ordercode: 41531... -
Page 14: Main Menu Options
Infinity iB-2R Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. -
Page 15: Edit Mode
Infinity iB-2R 2. Edit Mode With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode:... - Page 16 Infinity iB-2R Ordercode: 41531...
-
Page 17: Built-In Programs
Infinity iB-2R 03) Once you have selected the desired mode, press the buttons to change the value from No to YES. 04) A couple of menus have more options, then your regular, yes or no function: Pan Angle: 540°, 360°, 180°... -
Page 18: Test Menu
Infinity iB-2R 5. Test Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 2 different modes. Use the Up / Down buttons to select the required mode:... -
Page 19: Information Menu
Infinity iB-2R 6. Information Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. 03) You can only view 6 current settings, you cannot change anything Ordercode: 41531... -
Page 20: Dmx Channels
Infinity iB-2R DMX Channels 19 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 21 Infinity iB-2R Channel 9 – Colourwheel Linear color change following the movement of the slider. Between 128-189 and 194-255, the color-wheel rotates continuously the so-called “Rainbow” effect. Open / White 9-12 Deep Yellow/Orange 13-16 Turquoise 17-20 Green 21-24 Light Green/Yellow...
- Page 22 Infinity iB-2R 112-115 Gobo Shake 14 from slow to fast 116-119 Gobo Shake 15 from slow to fast 120-123 Gobo Shake 16 from slow to fast 124-127 Gobo Shake 17 from slow to fast 128-189 Clockwise rotation (CW) rainbow effect from fast to slow...
- Page 23 Infinity iB-2R 240-247 XY Smoothing model open 248-255 XY Smoothing model to shut down Channel 18 – Built-in Programs (CH6 and CH8 must be open No Function 8-15 Built-in Program 1 16-23 Built-in Program 2 24-31 Built-in Program 3 32-39...
-
Page 24: Channels (Advanced)
Infinity iB-2R 15 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 25 Infinity iB-2R Channel 9 – Static Gobo-wheel + Gobo Shake Open / White Gobo 1 Gobo 2 10-12 Gobo 3 13-15 Gobo 4 16-18 Gobo 5 19-21 Gobo 6 22-24 Gobo 7 25-27 Gobo 8 28-30 Gobo 9 31-33 Gobo 10...
- Page 26 Infinity iB-2R Channel 13 – Prism 2 rotation 0-127 Prism-indexing 128-189 Clockwise rotation (CW) from fast to slow 190-193 Stop 194-255 Counter-clockwise rotation (CCW) from slow to fast Channel 14 – Focus 0-255 Continuous adjustment from far to near Channel 15 – Channel Functions...
-
Page 27: Channel Settings
Fig. 05 Maintenance The Showtec Infinity iB-2R requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 28: Battery Replacement
Infinity iB-2R Battery Replacement (must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device. -
Page 29: Troubleshooting
01) First try to reset the device to its original factory default settings (3-Settings Menu see page 16). 02) Power supply. Check that the unit is plugged into an appropriate power supply. 03) The LEDs. Return the Infinity to your Showtec dealer. 04) The fuse. Replace the fuse. See page 26 for replacing the fuse. - Page 30 Infinity iB-2R Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 31: Product Specification
Infinity iB-2R Product Specification Model: Showtec Infinity iB-2R Input Voltage: 100-240 VAC Continuous Power: 265W max. at full output Fuse: F5A / 250V Dimensions: 303 x 366 x 475 mm (LxWxH) Weight: 17,78 kg Operation and Programming Signal pin OUT:... - Page 32 Infinity iB-2R Dimensions Ordercode: 41531...
- Page 33 Infinity iB-2R Notes Ordercode: 41531...
- Page 34 Infinity iB-2R Ordercode: 41531...
- Page 35 Infinity iB-2R Ordercode: 41531...
- Page 36 ©2015 Showtec...
