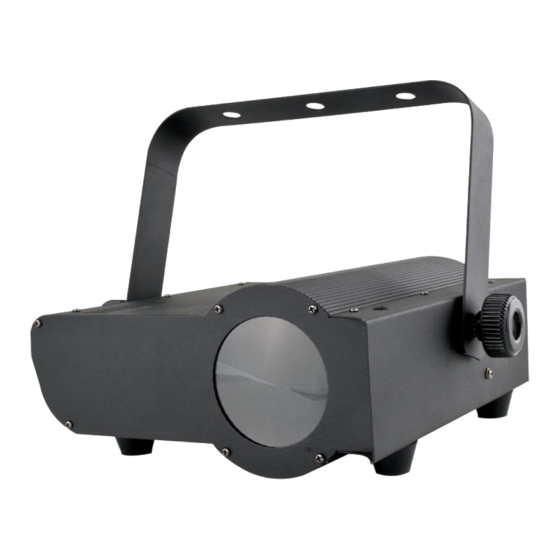

Chaotic LED
ORDERCODE 43051

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chaotic LED and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC Chaotic LED

Summary of Contents for SHOWTEC Chaotic LED

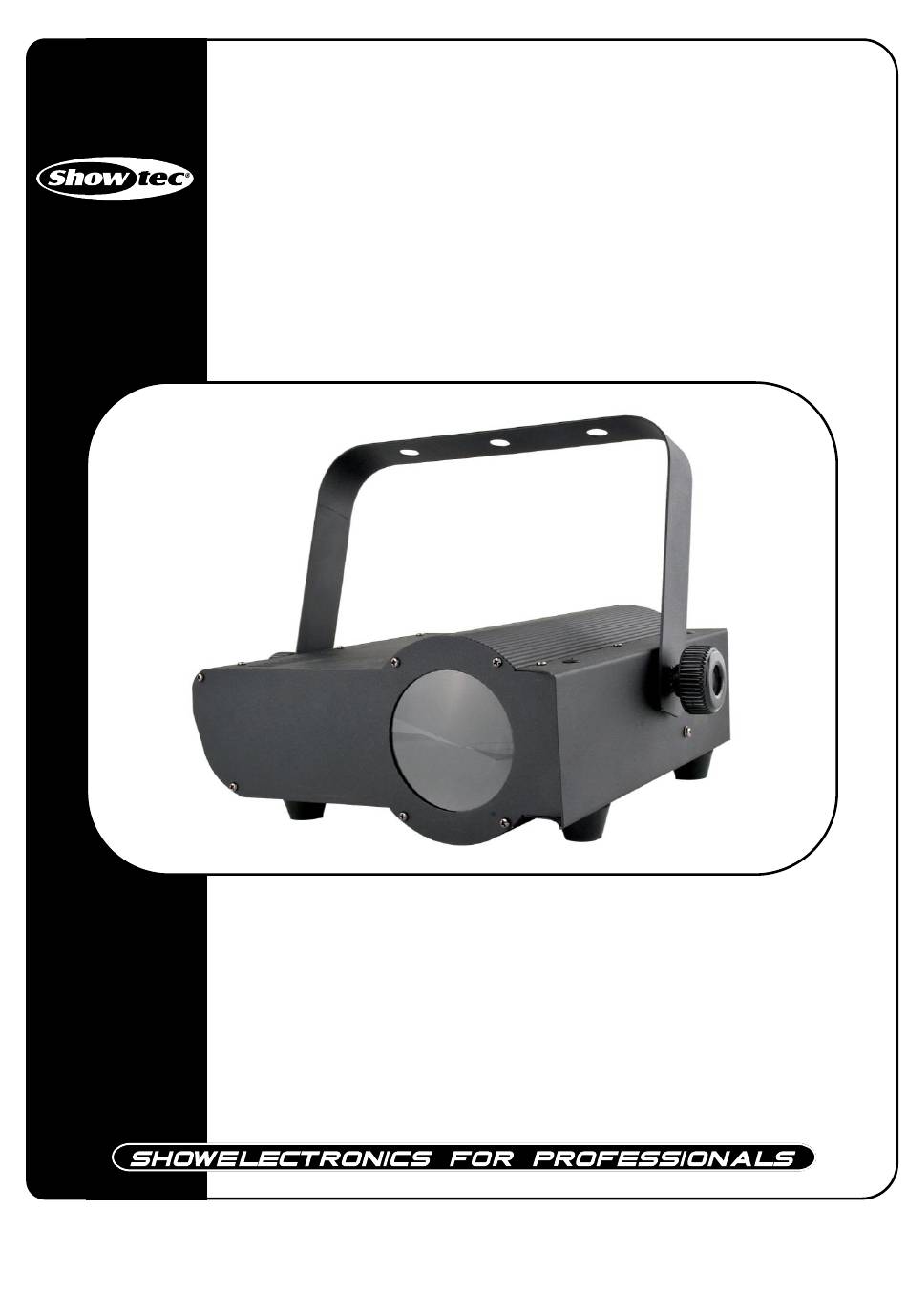

  • Page 1 Chaotic LED ORDERCODE 43051...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec Chaotic LED Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.………………………………………………………………………………………….. Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….………….. Backside…………………………………………………...…...….……………….…………………...….………….. Installation................…...…………………………………….…………….. Set Up and Operation..............……..………………………………………….. Control Modes…………………………………………………………………………………………………………. Built-in Programs ………………..……………………………………………………………………………….. Sound Control Mode….………………………………………………………………………………………… Master/Slave Mode…….……………………………………………………………………………………….. DMX Mode………….…………………………………………………………………………………………….. Dipswitch setting for DMX Mode…..……………..…………………………………………………………………...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Chaotic LED with cable 1,5m and hanging-bracket. •User manual LED Expected Lifespan LEDs gradually decline in brightness over time.
  • Page 5 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Chaotic LED. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.

  • Page 6: Operating Determinations

    Always let the installation be carried out by an authorized dealer ! Procedure: If the Chaotic LED is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Chaotic LED, with the mounting-bracket, to the trussing system.

  • Page 7: Return Procedure

    Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

  • Page 8: Description

    Description of the device Features The Showtec Chaotic LED is a light effect with high output and great effects. • Plug & Play • LED system: 3x 1 Watt RGB • DMX-512 controlled • Channels: 5 • Signal connector XLR 3-pole Male/ Female •...

  • Page 9: Installation

    Installation Remove all packing materials from the Chaotic LED. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage.

  • Page 10: Sound Control Mode

    When the Chaotic LED is not connected by a DMX-cable, it functions as a stand-alone device. The Chaotic LED will automatically change its color to the beat of the music. With the Audio sensitivity control you can adjust its music-sensitivity.
  • Page 11 Multiple Chaotic LEDs (DMX control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Chaotic LED. The pins: Earth Signal - Signal + 3.

  • Page 12: Dmx Mode

    (DMX Dip Switches "ON") for each unit. Flip appropriate DMX dipswitches on each unit. Example: 1. If you want to give an Chaotic LED DMX address 133, you first have to find the number 133 in the DMX Chart. (See page 11) 2.

  • Page 14: Dmx Channels

    Note: For CH5 to function correctly, CH1, CH2 and/or CH3 must be set between 6-255 Maintenance The Showtec Chaotic LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.

  • Page 15: Troubleshooting

    Response: Suspect three potential problem areas: the power supply, the LEDs, the fuse. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the Chaotic LED to your Showtec dealer. 3. The fuse. Replace the fuse. See page 12 for replacing the fuse.

  • Page 16: Product Specifications

    Product Specification Model: Showtec Chaotic LED Power: 240V-50Hz (CE) Power consumption: 15W LED system: 3x 1 Watt RGB DMX-512 controlled Channels: 5 Signal connector XLR 3-pole Male/ Female Mode: DMX512, Stand-alone and Music controlled, Master/Slave Sound-controlled via built-in microphone Fuse 1A / 250V...
