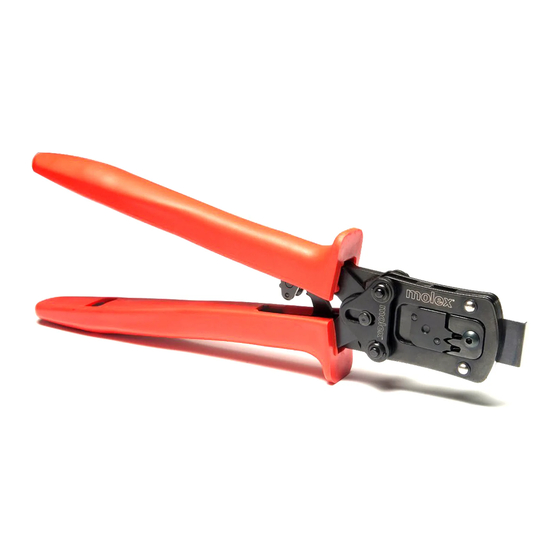

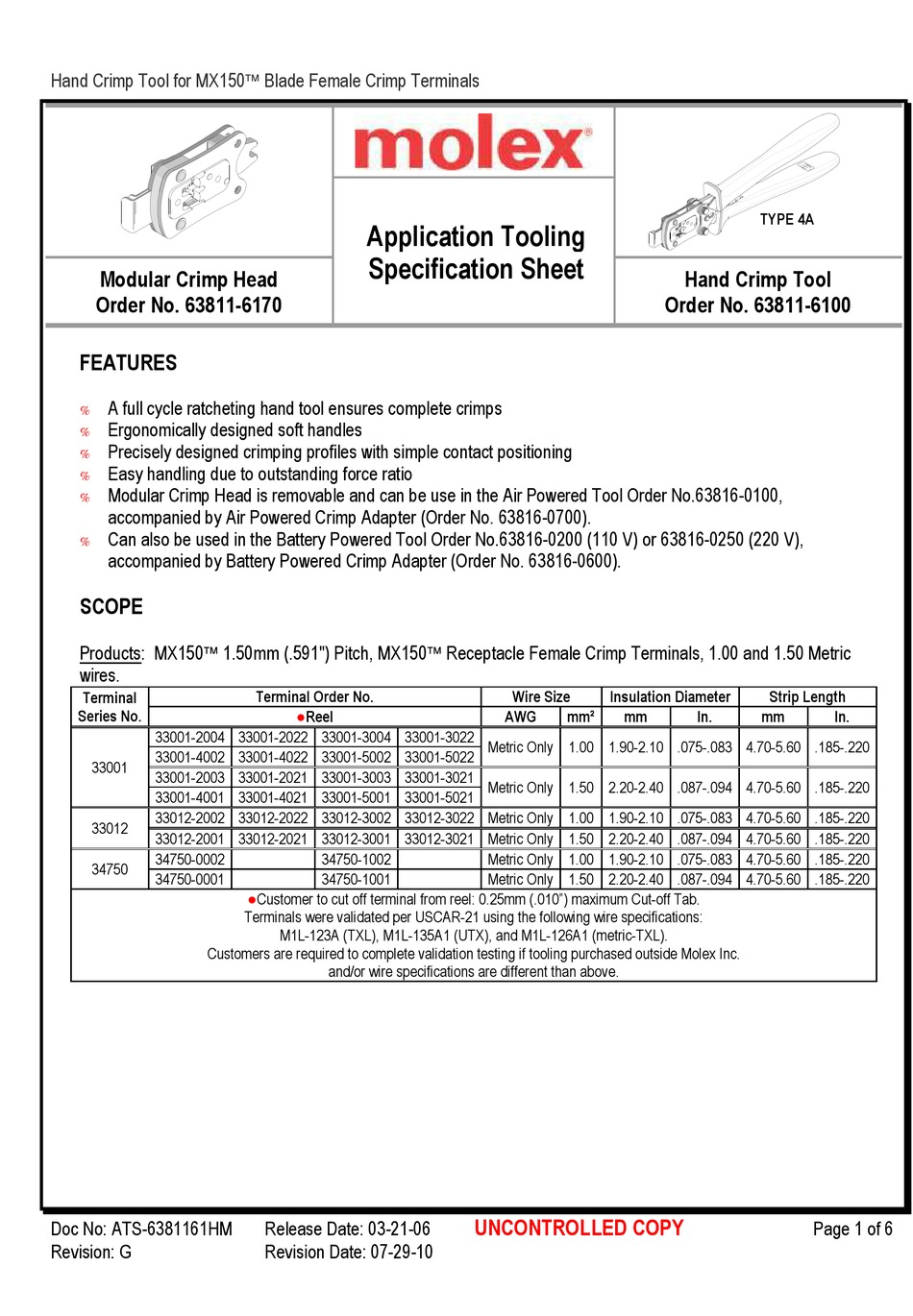

Hand Crimp Tool for MX150 Blade Female Crimp Terminals
Modular Crimp Head
Order No. 63811-6170
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: MX150 1.50mm (.591") Pitch, MX150 Receptacle Female Crimp Terminals, 1.00 and 1.50 Metric
wires.
Terminal
Series No.
33001-2004 33001-2022 33001-3004 33001-3022
33001-4002 33001-4022 33001-5002 33001-5022
33001
33001-2003 33001-2021 33001-3003 33001-3021
33001-4001 33001-4021 33001-5001 33001-5021
33012-2002 33012-2022 33012-3002 33012-3022 Metric Only 1.00 1.90-2.10 .075-.083 4.70-5.60 .185-.220
33012
33012-2001 33012-2021 33012-3001 33012-3021 Metric Only 1.50 2.20-2.40 .087-.094 4.70-5.60 .185-.220
34750-0002
34750
34750-0001
Customers are required to complete validation testing if tooling purchased outside Molex Inc.
Doc No: ATS-6381161HM
Revision: G
Application Tooling
Specification Sheet
Terminal Order No.
●Reel
34750-1002
34750-1001
●Customer to cut off terminal from reel: 0.25mm (.010") maximum Cut-off Tab.
Terminals were validated per USCAR-21 using the following wire specifications:
M1L-123A (TXL), M1L-135A1 (UTX), and M1L-126A1 (metric-TXL).
and/or wire specifications are different than above.
Release Date: 03-21-06
Revision Date: 07-29-10
Wire Size
Insulation Diameter
AWG
mm²
mm
Metric Only 1.00 1.90-2.10 .075-.083 4.70-5.60 .185-.220
Metric Only 1.50 2.20-2.40 .087-.094 4.70-5.60 .185-.220
Metric Only 1.00 1.90-2.10 .075-.083 4.70-5.60 .185-.220
Metric Only 1.50 2.20-2.40 .087-.094 4.70-5.60 .185-.220
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63811-6100
Strip Length
In.
mm
In.
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63811-6170
Summary of Contents for molex 63811-6170
- Page 1 ●Customer to cut off terminal from reel: 0.25mm (.010”) maximum Cut-off Tab. Terminals were validated per USCAR-21 using the following wire specifications: M1L-123A (TXL), M1L-135A1 (UTX), and M1L-126A1 (metric-TXL). Customers are required to complete validation testing if tooling purchased outside Molex Inc. and/or wire specifications are different than above. UNCONTROLLED COPY...
- Page 2 Hand Crimp Tool for MX150 Blade Female Crimp Terminals WIRE BEND DEFINITION OF TERMS BRUSH BEND UP WIRE BRUSH MUST BE 0.30 CUT-OFF WIRE BEND FLUSH OR BELOW TOP ROLLING OF CONDUCTOR CRIMP BELL MOUTH STRIP LENGTH TWISTING INSULATION BEND CRIMP DOWN SEAM...
- Page 3 Hand Crimp Tool for MX150 Blade Female Crimp Terminals Insulation Pull Force Wire Size Terminal Series No. Crimp Height Crimp Width Minimum Metric Only 1.00 1.90-2.10 .075-.083 2.20-2.40 .086-.094 120.1 27.0 33001 Metric Only 1.50 2.50-2.70 .098-.106 2.50-2.70 .098-.106 151.2 34.0 Metric Only 1.00 1.90-2.10 .075-.083 2.20-2.40 .086-.094 120.1 27.0...
- Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 5 The insulation should be stripped long (1/2 in.) so the insulation grips on the terminal do not grip the wire insulation or the conductor. Refer to Molex Quality Crimping Handbook 63800-0029 for additional information on crimping and crimp testing.
- Page 6 Hand Crimp Tool for MX150 Blade Female Crimp Terminals PARTS LIST Hand Crimp Tool 63811-6100 Item Order Number Description Quantity 63811-6170 Modular Crimp Head 1 (Ref) 63816-0050 Hand Crimp Frame (Long) 1 (Ref) 63811-6175 Locator 63816-0001 Locking Pin 63600-0525 Handle Spring...
