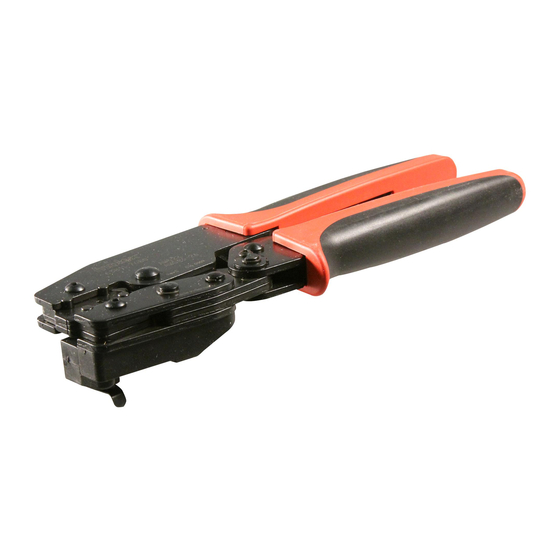

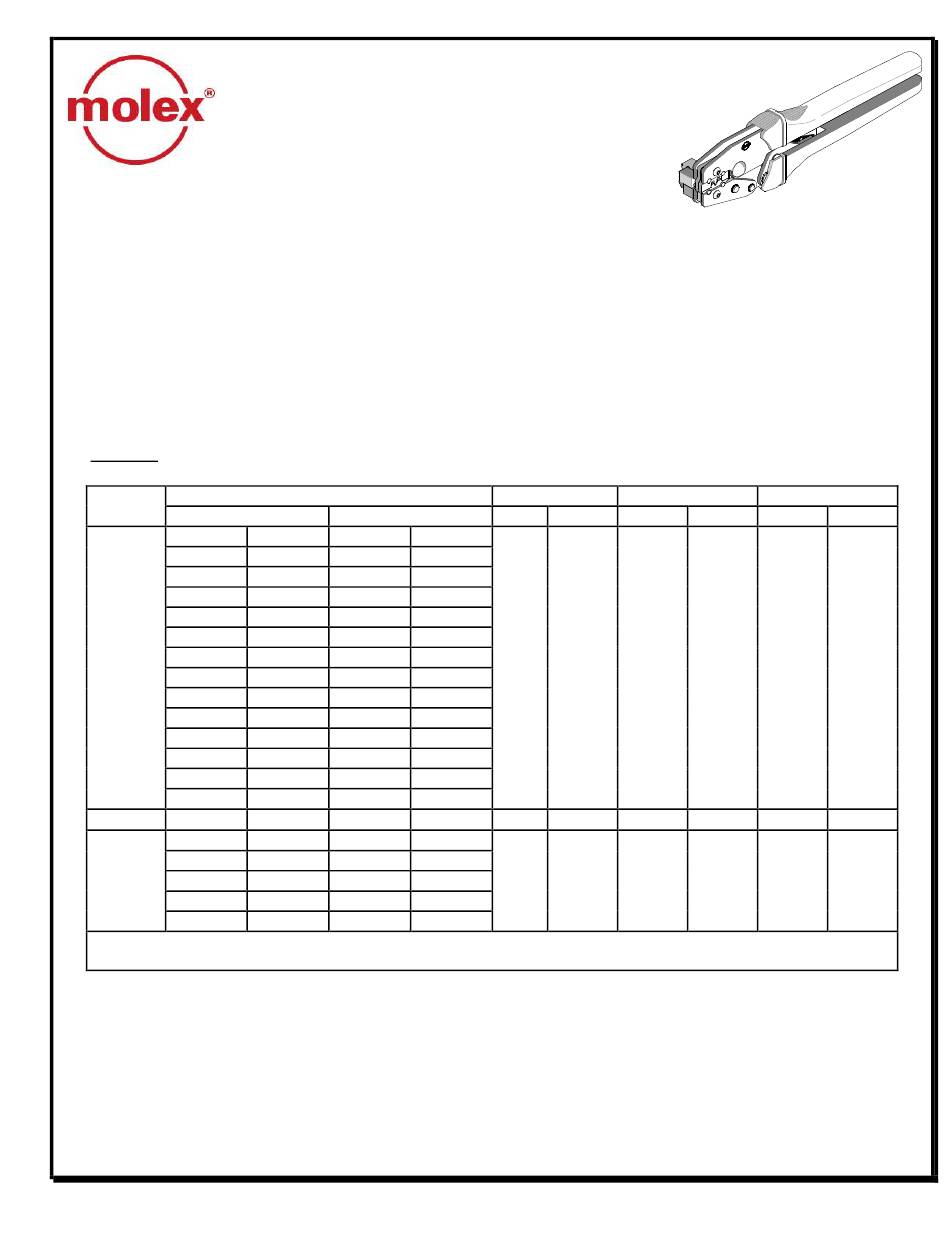

Hand Crimp Tool for 3.96mm (.156") Pitch KK® Crimp Terminal
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
SCOPE
Products: 3.96mm (.156") Pitch KK® Crimp Terminal for 22-26 AWG
Terminal
Series No.
Loose Piece
08-50-0019 08-56-0122 08-50-0018 08-56-0161
08-50-0062 08-56-0163 08-50-0061 08-56-0162
08-50-0066 08-58-0126 08-50-0065 08-58-0125
08-50-0108 08-60-0004 08-50-0107 08-59-0101
08-50-0112 08-65-0107 08-50-0111 08-60-0003
08-50-0134 08-65-0111 08-50-0133 08-65-0108
08-52-0117 08-65-0117 08-50-0504 08-65-0109
2578
08-55-0106 40-01-1119 08-52-0116 08-65-0110
08-55-0132 40-07-1106 08-55-0105 08-65-0116
08-56-0108 50-29-1878 08-55-0121 40-01-1117
5168
08-70-0019 08-70-0099 08-70-0018 08-70-0098 22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
08-50-0185 08-58-0134 08-04-0001 08-56-0181
08-52-0125 08-65-0122 08-50-0183 08-58-0133
7258
08-56-0124 08-65-0127 08-50-0283 08-65-0121
08-56-0182
Doc No: ATS-638117400
Revision: B
Hand Crimp Tool
Specification Sheet
Order No. 63811-7400
Terminal Order No.
Reel
08-55-0123 40-07-1105
08-55-0137 50-29-1767
08-56-0107 50-29-1877
08-56-0121
08-52-0124 08-65-0126
08-56-0123
Customer to cut off terminal from reel: .2.80mm (.110") maximum Cut-off Tab center.
See Conditions on page 2.
Release Date: 10-31-06
Revision Date: 04-08-08
Wire Size
Insulation Diameter
AWG
mm²
mm
22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
UNCONTROLLED COPY
TYPE 2C
Strip Length
In.
mm
In.
Page 1 of 7
