Dimensions of installation bracket:
Nominal Inverter
Power
≤ 3 kW
≥ 4 kW
Installation steps:
1. Take installation bracket from the package.
2. Place the bracket at the appropriate height and position on the wall. Mark the punching position according
to the fixing hole. Drill holes 70 mm deep and install the expansion screw. Fix the bracket on the expansion
bolt according to Figure 12. Ensure the installation is firm enough, the tightening torque is 8 Nm.
3. Lift the inverter to suspend it on the installation bracket through M8 hex socket cap screws.
4. Finally, fasten the inverter and the bracket with M5 screws and tighten the screws to 2 Nm. For firm
installation, the operators cannot release the device until the inverter is installed on the bracket firmly.
www.phocos.com

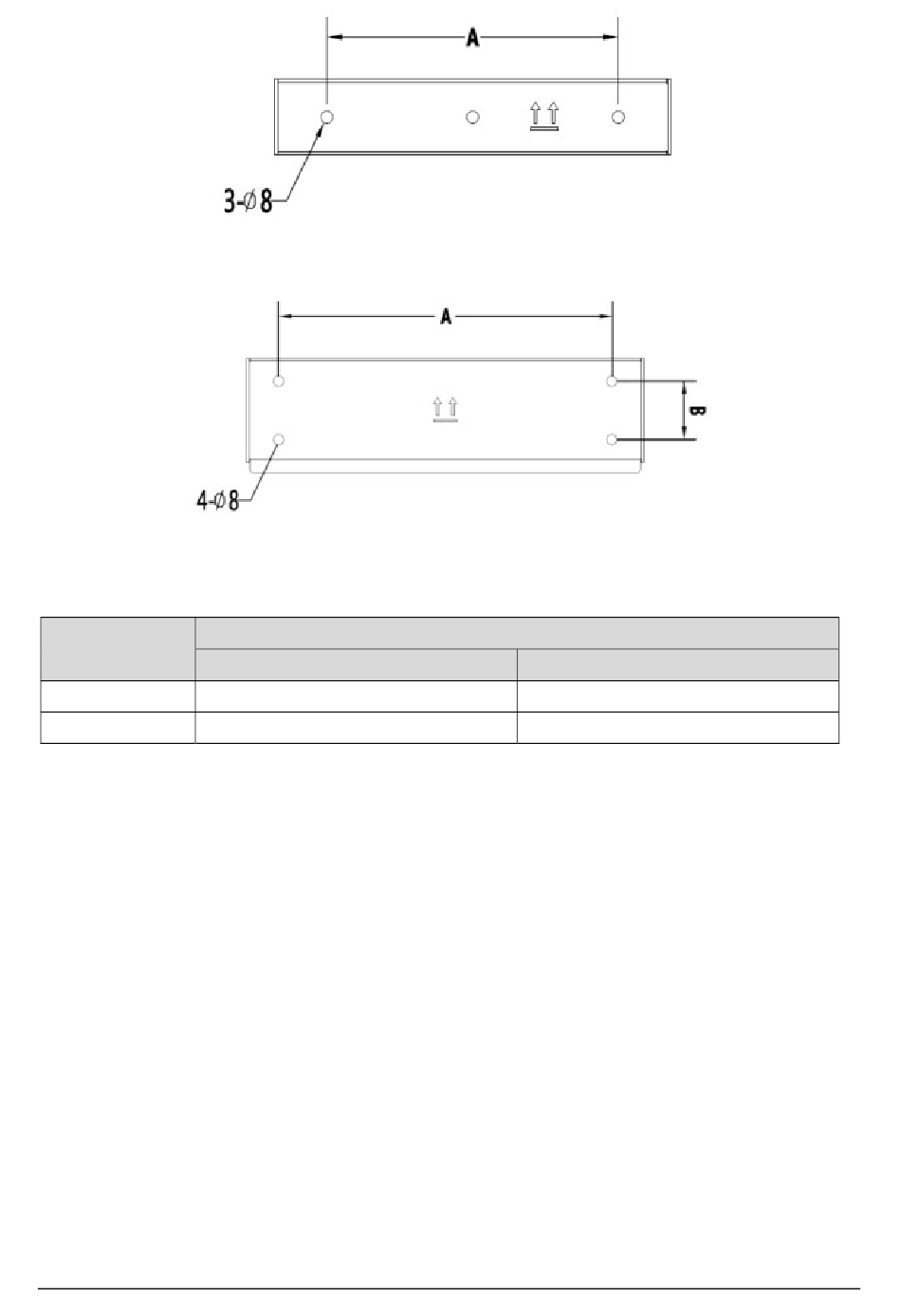

Figure 10: Installation bracket of ≤ 3 kW nom. inverter power
Figure 11: Installation bracket of ≥ 4 kW nom. inverter power
A
195 mm
260 mm
Installation Holes
B
-
45 mm
