Artificial
Run
shutdown
Warn
Fault
Note: Please refer to chapter 7 and 9 for detailed fault information and troubleshooting.

Operation Panel

There are 4 buttons on the panel:
1. "ESC" exit and return
2. "UP" back to the front page and number increasing
3. "DOWN" to the next page and number decreasing
4. "ENTER" enter
The machine can be turned on and off by pressing the buttons: press "ESC" and "ENT" (about 3 seconds) at the same
time, and then the quick start-up and stop is available.

LCD Screen

Operation Panel
All information is displayed on the LCD screen. The background illumination of LCD screen will go out to save power
if there is not button operation within 15 seconds. But it can be activated by pressing any button. Press "ENTER" to
enter into the main interface if the background illumination is on, as shown in Figure 18. All parameters can be
viewed and set on the interface.
There are main interface and menu interfaces on the LCD screen, of which the main interface is the default one after
power on, while the menu interfaces are used to watch and set parameters or other manual operation, such as
viewing the monitoring parameters, history record, system information, statistics and fault information and setting
the displayed language, time, communication address, password and factory defaults.
www.phocos.com
Stop after the communication or panel command. All indicators are on.
LCD Screen

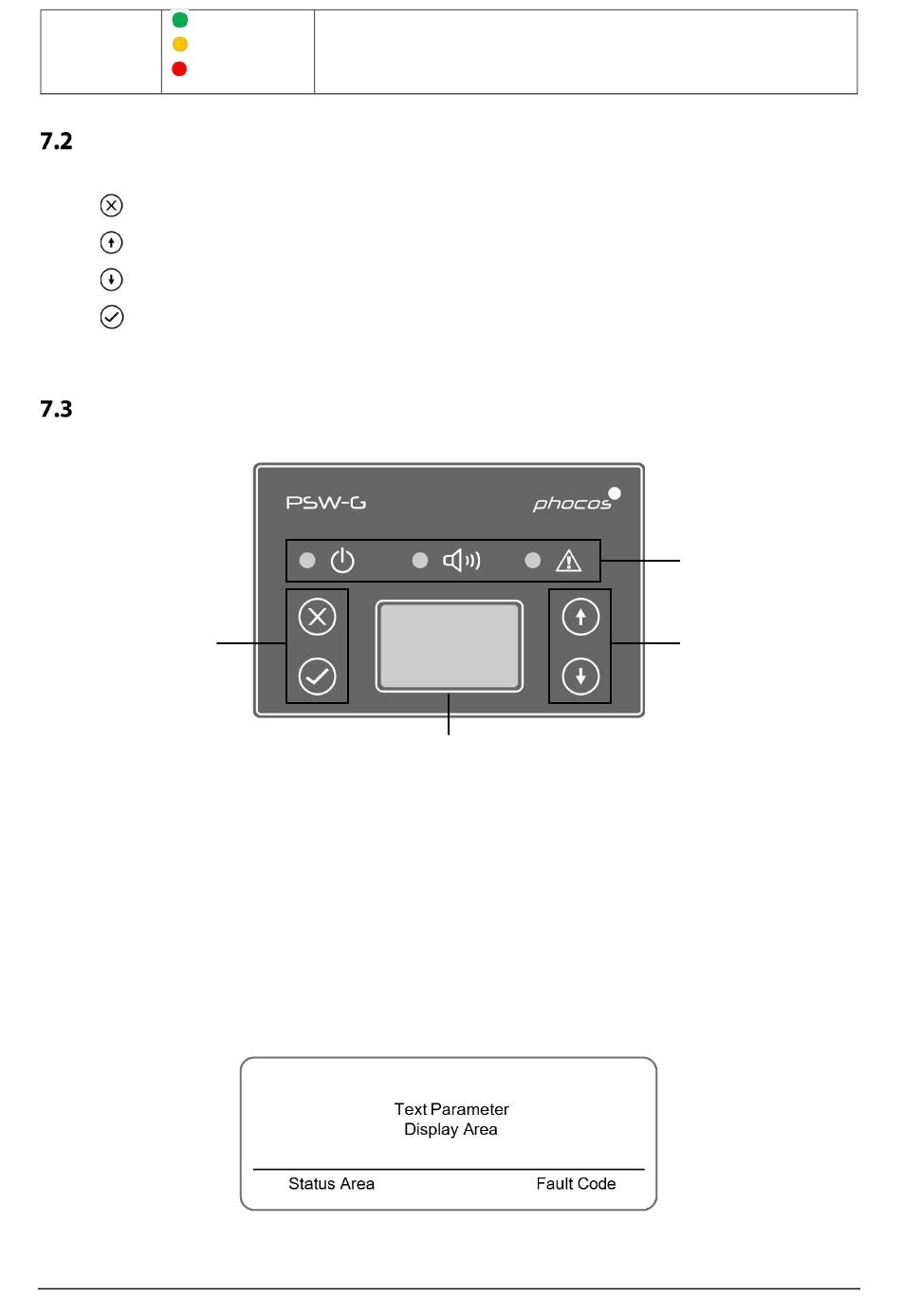

Figure 17: Operation panel and screen
Figure 18: Main interface
LED Indicators
Operation Panel
