Electrical Installation

This section describes the electrical connection related content and related safety precautions. Figure 13 is the
schematic diagram of the photovoltaic grid-connected system.

Electrical connection must be carried out by professional technicians as wrong operation may
cause damage to the device, physical injuries or even death during system operation.

All the electrical installation must conform to the national and local electrical safety regulations.

Ensure all the cables are installed firmly according to the specified safety requirements and free
from any damage.

It is not allowed to close the AC and DC breakers before the inverter is electrically connected.

Read and follow the instructions provided in this section. Strictly follow the requirements when
operating.
Note

Always note the rated voltage and current defined in this manual. Never exceed the limits.
www.phocos.com

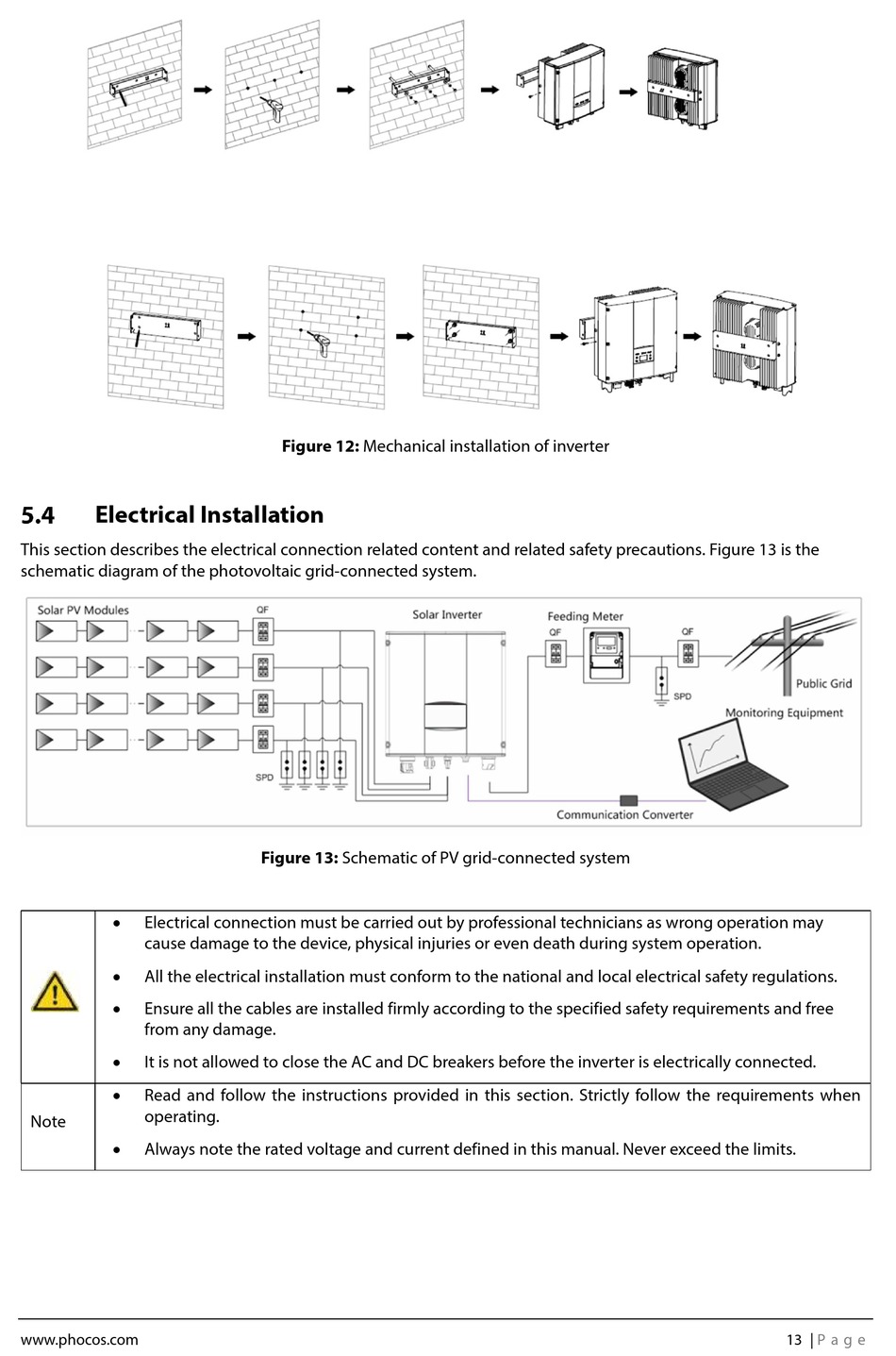

Figure 12: Mechanical installation of inverter
Figure 13: Schematic of PV grid-connected system
