Summary of Contents for Phocos MPPT100/30

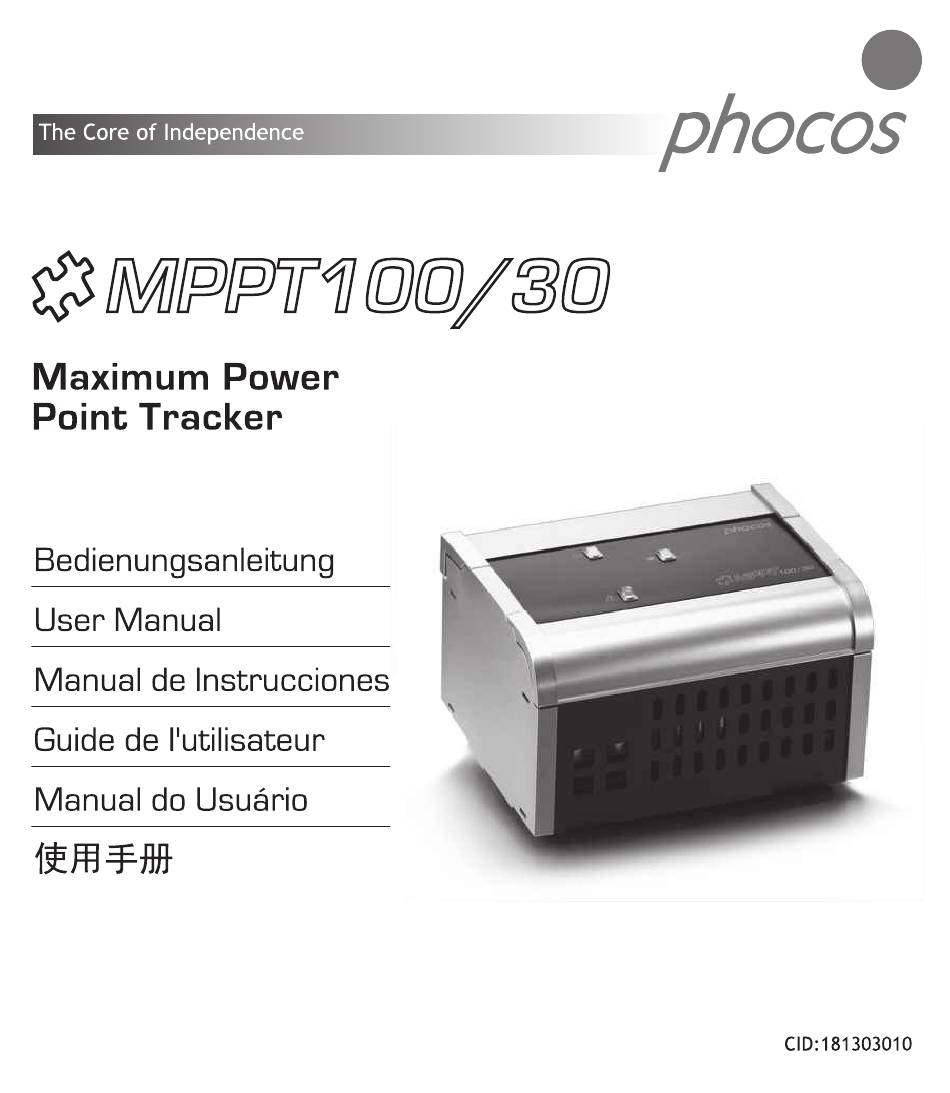

- Page 4 The Core of Independence MPPT100/30 Maximum Power Point Tracker User Manual (English) The Core of Independence Dear Customer, Thank you very much for buying this Phocos product. Please read the instructions carefully and thoroughly before using the product.
-
Page 5: Table Of Contents
Contents Major Functions Recommendations for Use Mounting and Connecting Grounding the Solar System Starting up the Controller Display Functions Setting up your MPPT Safety Recommendations Liability Exclusion Technical Data... -
Page 6: Major Functions
With your new MPPT Maximum Power Point Tracker, you own a state-of-the art device which was developed according to the latest available technical standards. It comes with a number of outstanding features, such as: Maximum Power Point Tracking technology, which increases the efficiency of your PV system Allows the use of less expensive solar panels for grid connection systems for 12/24V stand-alone systems Automatically detects 12/24V system Voltage Temperature-Compensated, Three-Stage I-U Curve Charge Regulation... - Page 7 To avoid any voltage from the wires, first connect the controller, then the solar array. Mind the recommended wire size (see table in chapter Recommended wiring for MPPT100/30) . Close the cover of solar side. NOTE: Place the positive and the negative wires close to each other to minimize electromagnetic effects.
-
Page 8: Grounding The Solar System
NOTE: Mind the recommendations of your battery manufacturer. We strongly recommend connecting a fuse directly to the battery to protect any short circuit in the battery wiring. The fuse must at least take the MPPT nominal current or more. Suggestion: Use a slow acting 40A fuse. Grounding the Solar System Be aware that the negative terminals of the MPPT are connected internally and therefore have the same electrical... -
Page 9: Setting Up Your Mppt
Setting up your MPPT The MPPT comes with an 8 pole DIP-switch, which can be used to set up your MPPT. Note: DIP switches have to be in "ON" or "OFF" position only. The middle position is not allowed!! DIP No.1,2,3 and 4 are for the use in the modular system(for details see MCU manual). DIP No.5 and 6 are reserved for future functions. -
Page 10: Liability Exclusion
185 x 150 x 115 mm Weight 1.6 kg Ambient Temperature range -40 to + 50 °C Case Protection IP 22 Subject to change without notice. ISO9001:2000 Version: 20090909 Made in one of the following countries: China – Germany RoHS Phocos AG – Germany www.phocos.com...
