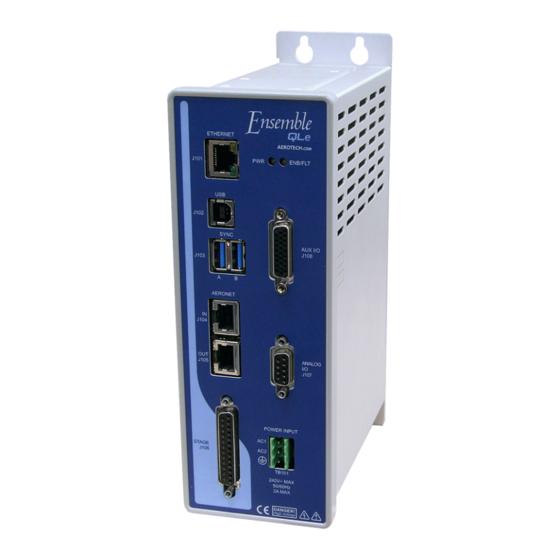

Ensemble QL
Hardware Manual
ETHERNET
J101
ENB/FLT
PWR
USB
J102
SYNC
AUX I/O
J108
J103
A
B
AERONET
OUT
J104
IN
ANALOG
J105
I/O
J107
POWER INPUT
AC1
STAGE
AC2
J106
TB101
100-240V~
50/60Hz
2A MAX
DANGER!
High Voltage
Revision: 1.03.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ensemble QL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aerotech Ensemble QL

  • Page 1: Ensemble Ql Hardware Manual

    Ensemble QL Hardware Manual Revision: 1.03.00 ETHERNET J101 ENB/FLT J102 SYNC AUX I/O J108 J103 AERONET J104 ANALOG J105 J107 POWER INPUT STAGE J106 TB101 100-240V~ 50/60Hz 2A MAX DANGER! High Voltage...
  • Page 2 This manual contains proprietary information and may not be reproduced, disclosed, or used in whole or in part without the express written permission of Aerotech, Inc. Product names mentioned herein are used for identification purposes only and may be trademarks of their respective companies.
  • Page 3: Table Of Contents

    Ensemble QL Hardware Manual Table of Contents Table of Contents Ensemble QL Hardware Manual Table of Contents List of Figures List of Tables EU Declaration of Conformity Agency Approvals Safety Procedures and Warnings Quick Installation Guide Chapter 1: Introduction 1.1. Electrical Specifications 1.2.
  • Page 4: List Of Figures

    Table of Contents Ensemble QL Hardware Manual List of Figures Figure 1-1: Functional Diagram Figure 1-2: Dimensions Figure 2-1: Power Input Connections Figure 2-2: Connection to Third Party Stage Figure 2-3: PSO Interface Figure 2-4: Outputs Connected in Current Sourcing Mode (J108)
  • Page 5: List Of Tables

    Ensemble QL Hardware Manual Table of Contents List of Tables Table 1-1: Configuration and Options Table 1-2: Electrical Specifications Table 1-3: Physical Specifications Table 2-1: Power Supply Wiring (TB101) Table 2-2: I/O and Signal Wiring Specifications Table 2-3: Power and Feedback Connector (J106)
  • Page 6 Table of Contents Ensemble QL Hardware Manual This page intentionally left blank. www.aerotech.com...
  • Page 7: Eu Declaration Of Conformity

    Ensemble QL Hardware Manual Declaration of Conformity EU Declaration of Conformity Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product Ensemble QL Model/Types This is to certify that the aforementioned product is in accordance with the applicable requirements of the...
  • Page 8: Agency Approvals

    Declaration of Conformity Ensemble QL Hardware Manual Agency Approvals Aerotech, Inc. Model Ensemble QL Drives have been tested and found to be in accordance to the following listed Agency Approvals: Approval / Certification: CUS NRTL Approving Agency: TUV SUD America Inc.
  • Page 9: Safety Procedures And Warnings

    Ensemble QL Hardware Manual Declaration of Conformity Safety Procedures and Warnings The following statements apply wherever the Warning or Danger symbol appears within this manual. Failure to observe these precautions could result in serious injury to those individuals performing the procedures and/or damage to the equipment.
  • Page 10 Declaration of Conformity Ensemble QL Hardware Manual This page intentionally left blank. www.aerotech.com...
  • Page 11: Quick Installation Guide

    This chapter describes the order in which connections and settings should typically be made to the Ensemble QL. If a custom interconnection drawing was created for your system (look for a line item on your Sales Order under the heading “Integration”), that drawing can be found on your Software or Documentation DVD.
  • Page 12 Quick Installation Guide Ensemble QL Hardware Manual This page intentionally left blank. www.aerotech.com...
  • Page 13: Chapter 1: Introduction

    Introduction Chapter 1: Introduction The Ensemble QL is a panel-mount nanopositioning piezo drive that connects to any Ensemble controller network enabling a high rate of coordinated motion between piezo stages and servo axes. QL drives feature a dual-core 456 MHz, double-precision, floating-point DSP that provides extreme processing power over a wide variety of applications including point-to-point motion, linear and circular interpolation, multi-axis error correction, and auto-focusing.
  • Page 14: Table 1-1: Configuration And Options

    Introduction Ensemble QL Hardware Manual Table 1-1: Configuration and Options Ensemble QL Ensemble QL250-C Cost-effective networkable, standalone panel-mount piezo drive with capacitive sensor feedback, 250 mA peak current, 50 mA continuous current, -30 to +150 V output. Ensemble QL500-C Cost-effective networkable, standalone panel-mount piezo drive with capacitive sensor feedback, 500 mA peak current, 175 mA continuous current, -30 to +150 V output.
  • Page 15: Figure 1-1: Functional Diagram

    Ensemble QL Hardware Manual Introduction The following block diagram shows a connection summary (refer to Chapter 2 and Chapter 3 for more detailed connection information). SIN, COS, MRK PSO Output 4 Opto Outputs AUX I/O 4 Opto Inputs J108 Input (J105)
  • Page 16: Electrical Specifications

    Introduction Ensemble QL Hardware Manual 1.1. Electrical Specifications The electrical specifications for the Ensemble QL are listed below. Table 1-2: Electrical Specifications Description Ensemble QL250-C Ensemble QL500-C Input Voltage 100-240 VAC (auto-ranging) 100-240 VAC (auto-ranging) [Nominal Range] Input Voltage 85-264 VAC (auto-ranging)
  • Page 17: Mechanical Design

    Ensemble QL Hardware Manual Introduction 1.2. Mechanical Design The following figure shows the Ensemble QL package dimension as well as the typical mounting orientation. Ø4.8 [Ø0.19] Ø10.3 [Ø0.41] 20.8 [0.82] 31.8 [1.25] ETHERNET J101 ENB/FLT J102 SYNC AUX I/O J108...
  • Page 18: Environmental Specifications

    Introduction Ensemble QL Hardware Manual 1.3. Environmental Specifications The environmental specifications for the Ensemble QL are listed below. Ambient Temperature Operating: 0° to 50°C (32° to 122° F) Storage: -30° to 85°C (-22° to 185° F) Humidity Maximum relative humidity is 80% for temperatures up to 31°C.
  • Page 19: Chapter 2: Installation And Configuration

    Ensemble QL Hardware Manual Installation and Configuration Chapter 2: Installation and Configuration This section describes the minimum hardware installation and configuration requirements for the Ensemble QL. This installation will provide information on AC power connections and motor wiring. D A N G E R : To minimize the possibility of bodily injury or death, disconnect all electrical power prior to performing any maintenance or making adjustments to the equipment.
  • Page 20: Electrical Installation

    Installation and Configuration Ensemble QL Hardware Manual 2.2. Electrical Installation The Ensemble QL has one AC input power connector. For a complete list of electrical specifications, refer to Section 1.1. Electrical Specifications. 2.2.1. Power Input (TB101) AC input power to the QL is applied to the Input Power (TB101) connector.
  • Page 21: I/O And Signal Wiring Requirements

    Ensemble QL Hardware Manual Installation and Configuration 2.2.2. I/O and Signal Wiring Requirements The I/O, communication, and encoder feedback connections are typically very low power connections. In some applications, especially when there are significant wire distances, a larger wire size may be required to reduce the voltage drop that occurs along the wire.
  • Page 22: Stage Power And Feedback Connections (J106)

    2. To avoid the risk of electric shock, do not touch the piezo stage while it is energized. The capacitance sensor interface is designed to work with Aerotech stages and cannot be used with third party sensors. The position feedback input signal (Pin 22) has a range of -10 to 10 VDC and can be connected to a third-party sensor with DC output.
  • Page 23: Figure 2-2: Connection To Third Party Stage

    Ensemble QL Hardware Manual Installation and Configuration THIRD PARTY STAGE POSITION FEEDBACK (OPTIONAL) SIGNAL COMMON PIEZO ACTUATOR HIGH VOLTAGE OUTPUT (+) PIEZO PIEZO ACTUATOR RETURN (-) FRAME GROUND Figure 2-2: Connection to Third Party Stage www.aerotech.com Chapter 2...
  • Page 24: Auxiliary I/O Connector (J108)

    Opto-Isolated Input 2 Opto-Isolated Input 3 1. For PSO, see Section 2.4.1. Mating Connector Aerotech P/N Third Party P/N Connector ECK01259 Kycon K86-AA-26P Backshell ECK01022 Amphenol 17-1725-2 NOTE: These items are provided as a set under the Aerotech P/N: MCK-26HDD. Chapter 2 www.aerotech.com...
  • Page 25: Position Synchronized Output (Pso)

    Ensemble QL Hardware Manual Installation and Configuration 2.4.1. Position Synchronized Output (PSO) The PSO can be programmed to generate an output synchronized to the feedback position and is typically used to fire a laser or sequence an external device. Trigger signals may be derived from a feedback channel or a software trigger.
  • Page 26: Figure 2-3: Pso Interface

    Installation and Configuration Ensemble QL Hardware Manual Single Ended +5 VDC J108 Active Low Output Aux. Marker Active High Output (±8 mA max) Differential +5 VDC 120 - 180 Ω (typical) J108 Active Low Aux. Marker Output * RS-422 Receiver...
  • Page 27: Opto-Isolated Outputs

    Ensemble QL Hardware Manual Installation and Configuration 2.4.2. Opto-Isolated Outputs 0-3 The digital outputs are optically-isolated and may be connected in sourcing or sinking configurations. The digital outputs are designed to connect to other ground referenced circuits and are not intended to provide high-voltage isolation.
  • Page 28: Figure 2-4: Outputs Connected In Current Sourcing Mode (J108)

    Installation and Configuration Ensemble QL Hardware Manual J108 OPTOCOM J108-15 OPTOOUT0 J108-7 LOAD OPTOOUT1 J108-8 LOAD OPTOOUT2 J108-9 5-24 VDC LOAD OPTOOUT3 J108-16 OUTPUT SWITCHES LOAD DIODE REQUIRED ON EACH OUTPUT THAT DRIVES AN INDUCTIVE DEVICE (COIL), SUCH AS A RELAY.
  • Page 29: Opto-Isolated Inputs

    Ensemble QL Hardware Manual Installation and Configuration 2.4.3. Opto-Isolated Inputs 0-3 The digital inputs are opto-isolated and may be connected to current sourcing or current sinking devices, as shown in Figure 2-6 Figure 2-7. These inputs are designed to connect to other ground-referenced circuits and are not intended for high-voltage isolation.
  • Page 30: Figure 2-6: Inputs Connected In Current Sourcing Mode (J108)

    Installation and Configuration Ensemble QL Hardware Manual J108 INPUT SWITCHES (Current Sourcing) OPTOIN0 J108-17 OPTOIN1 J108-18 OPTOIN2 J108-25 5-24VDC OPTOIN3 J108-26 OPTOINCOM J108-24 Figure 2-6: Inputs Connected in Current Sourcing Mode (J108) J108 OPTOINCOM J108-24 OPTOIN0 J108-17 5-24VDC OPTOIN1 J108-18...
  • Page 31: High-Speed User Inputs

    Ensemble QL Hardware Manual Installation and Configuration 2.4.4. High-Speed User Inputs 4-5 The Ensemble QL has two high-speed opto-isolated inputs. These can be used as general purpose inputs or as high-speed position capture inputs. Table 2-11: High Speed Digital Input Connector Pin Assignment (J108)
  • Page 32: Analog Output

    Installation and Configuration Ensemble QL Hardware Manual 2.4.5. Analog Output 0 Table 2-13: Analog Output Specifications (J108) Specification Value Output Voltage -10 V to +10 V Output Current 5 mA Resolution (bits) 16 bits Resolution (volts) 305 µV Table 2-14: Analog Output 0 Connector Pin Assignment (J108)
  • Page 33: Differential Analog Input

    Ensemble QL Hardware Manual Installation and Configuration 2.4.6. Differential Analog Input 0 To interface to a single-ended (non-differential) voltage source, connect the signal common of the source to the negative input and the analog source signal to the positive input.
  • Page 34: Analog I/O Connector (J107)

    Installation and Configuration Ensemble QL Hardware Manual 2.5. Analog I/O Connector (J107) The Analog I/O connector provides a piezo voltage monitor signal and an external voltage command input. The piezo voltage monitor signal is a scaled copy of the actual piezo actuator's high voltage signal. The external voltage command input allows the user to directly command the high-voltage amplifier.
  • Page 35: Voltage Monitor Output

    Ensemble QL Hardware Manual Installation and Configuration 2.5.1. Voltage Monitor Output The Voltage Monitor output provides a scaled copy of the piezo actuator's high-voltage signal. The high- voltage signal is scaled by 1/15 and buffered before being sent to the Voltage Monitor output pin.
  • Page 36: External Voltage Command

    Ensemble QL Hardware Manual 2.5.2. External Voltage Command The External Voltage Command input allows the user to directly command the Ensemble QL's high voltage amplifier. This mode must be enabled using the controller software and is not active by default.
  • Page 37: Communication

    Ensemble QL Hardware Manual Installation and Configuration 2.6. Communication Either USB or Ethernet can be used to connect any of the supplied software applications or a custom application built with the supplied .NET library to the controller. Ethernet sockets are also available for general ASCII communication with another hardware device.
  • Page 38: Ethernet Interface

    PC. This type of connection is not feasible unless the PC has two Ethernet cards. If the PC cannot be connected to an external network, Aerotech recommends Method 2. Method 2 is a more typical configuration. The network can be a local network (the PC and QL are connected through a hub or switch) or remote (the devices are connected through a router).
  • Page 39: Aeronet Interface

    Ensemble QL Hardware Manual Installation and Configuration 2.6.3. Aeronet Interface Use this option to connect up to ten Ensemble discrete drives. ETHERNET ETHERNET ETHERNET ETHERNET J101 ENB/FLT J101 ENB/FLT J101 ENB/FLT J101 ENB/FLT J102 J102 J102 J102 SYNC SYNC SYNC...
  • Page 40: Sync Interface

    Installation and Configuration Ensemble QL Hardware Manual 2.6.4. SYNC Interface The Sync connection contains a proprietary bus which is currently reserved for future expansion. SYNC J103 ETHERNET ENB/FLT J101 J102 SYNC AUX I/O J108 J103 AERONET J104 ANALOG J105 J107...
  • Page 41: Pc Configuration And Operation Information

    Ensemble QL Hardware Manual Installation and Configuration 2.7. PC Configuration and Operation Information For additional information about PC configuration, hardware requirements, programming, utilities, and system operation refer to the Help file. www.aerotech.com Chapter 2...
  • Page 42 Installation and Configuration Ensemble QL Hardware Manual This page intentionally left blank. Chapter 2 www.aerotech.com...
  • Page 43: Chapter 3: Maintenance

    D A N G E R : For your own safety and for the safety of the equipment, do not remove the cover of the Ensemble QL or attempt to access its internal components. There is no reason to remove the cover or access the internal components. The QL does not have any user- configurable switches or jumpers.
  • Page 44: Preventative Maintenance

    Cleaning The Ensemble QL chassis can be wiped with a clean, dry, soft cloth. The cloth may be slightly moistened if required with water or isopropyl alcohol to aid in cleaning if necessary. In this case, be careful not to allow moisture to enter the Ensemble QL or onto exposed connectors / components.
  • Page 45: Appendix A: Warranty And Field Service

    Aerotech makes no warranty that its products are fit for the use or purpose to which they may be put by the buyer, whether or not such use or purpose has been disclosed to Aerotech in specifications or drawings previously or subsequently provided, or whether or not Aerotech’s...
  • Page 46 Aerotech's approval. On-site Warranty Repair If an Aerotech product cannot be made functional by telephone assistance or by sending and having the customer install replacement parts, and cannot be returned to the Aerotech service center for repair, and if Aerotech determines the problem could be warranty-related, then the following policy applies:...
  • Page 47: Appendix B: Revision History

    Ensemble QL Hardware Manual Revision History Appendix B: Revision History Revision Description 1.03.00 Updated the connector pinout: Section 2.5. Analog I/O Connector (J107) 1.02.00 Updated the connector pinout: Section 2.5. Analog I/O Connector (J107) The following sections have been updated: EU Declaration of Conformity Agency Approvals Section 1.1.
  • Page 48 Revision History Ensemble QL Hardware Manual This page intentionally left blank. Appendix B www.aerotech.com...
  • Page 49: Index

    Ensemble QL Hardware Manual Index Index inspect all cables and connections Inspect cooling vents 2014/35/EU Inspection Installation and Configuration Altitude Ambient Temperature Mechanical Design Check chassis for loose or damaged parts / Peak Inrush Current hardware Peak Output Current Check for fluids or electrically conductive...
