ACTIVE
Wellness TV

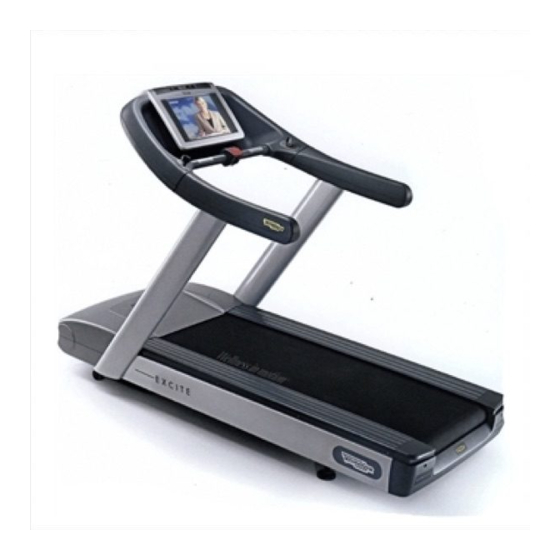

15" Display – RUN EXCITE
Machine configuration

Advertisement

Table of Contents
loading

Related Manuals for Technogym ACTIVE Wellness TV RUN EXCITE

Summary of Contents for Technogym ACTIVE Wellness TV RUN EXCITE

  • Page 1 ACTIVE Wellness TV 15” Display – RUN EXCITE Machine configuration...

  • Page 3: Table Of Contents

    Contents 1. MACHINE CONFIGURATION....................1 1.1. User menu configuration............................ 1 1.1.1. SN ................................2 1.1.2. Language..............................2 1.1.3. Measure..............................2 1.1.4. Priority ..............................2 1.1.5. Maximum excercise time ........................... 3 1.1.6. Enable TGS ............................... 3 1.1.7. Keys ................................3 1.1.8. Pause time ..............................3 1.1.9.
  • Page 4 1.8.2. Using the connecting cable ........................27 1.9. Touch screen calibration..........................28 1.10. Troubleshooting service menu for 700 and 900 models................. 30 1.10.1. I2C Device Test ............................31 1.10.2. CSafe COM test ............................31 1.10.3. Low Kit COM Test........................... 31 1.10.4.

  • Page 5: Machine Configuration

    To exit the configuration press HOME key. Pressing “HOME” in any page, all changes made up to that moment are saved; you cannot exit without saving. In case of errors the initial Technogym settings can be restored using the “DEFAULT CONFIG.” parameter.

  • Page 6: Language

    ACTIVE WTV: Machine configuration 1.1.1. In the top right hand corner of the windows it is displayed the SN of the machine, loaded at the end of the production line. 1.1.2. ANGUAGE After selecting a language from the list of those available, all messages subsequently displayed by the machine will be in the chosen language.

  • Page 7: Maximum Excercise Time

    ACTIVE WTV: Machine configuration 1.1.5. AXIMUM EXCERCISE TIME It is possible to set a maximum duration for the exercise in minutes, with a value ranging from 1 to 9999. To change the setting, press the MODIFY key and insert the value using the numeric keyboard.

  • Page 8: Top Exercise Programs For You Shortcut

    ACTIVE WTV: Machine configuration 1.1.9. OP EXERCISE PROGRAMS FOR YOU SHORTCUT It is possible to choose 2 extra training programs, from the list of those available, which will be displayed in the main page with the fixed ones “TIME” and “CALORIES”. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen.

  • Page 9: Language

    ACTIVE WTV: Machine configuration TANDBY TV ON <default> TV OFF Press HOME to confirm and save, FORWARD or BACK to scroll the pages. 1.1.12. L ANGUAGE The machine can be configured to allow selection of the language at each session. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen.

  • Page 10: Default Config

    ACTIVE WTV: Machine configuration 1.1.15. D EFAULT CONFIG It is possible to reset the user menu parameters to their default values. To select the function, press on “DEFAULT CONFIG” key. Press HOME to confirm and save, FORWARD or BACK to scroll the pages. 1.1.16.

  • Page 11: Ipod Connection Option

    ACTIVE WTV: Machine configuration 1.1.19. OD CONNECTION OPTION It is possible to set the machine for controlling the iPod through the display. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen.

  • Page 12: Service Menu Configuration

    To exit the configuration press HOME key. Pressing “HOME” in any page, all changes made up to that moment are saved; you cannot exit without saving. In case of errors the initial Technogym settings can be restored using the “STANDARD SETTINGS.” parameter.

  • Page 13: Low Kit Parameter

    ACTIVE WTV: Machine configuration 1.2.1. OW KIT PARAMETER This function provides access to parameters used for modifying certain settings of the lower assembly. To access this menu, when the display shows: In addition to the 13 configuration parameters, this function also includes the 3 sub-functions described below: 1.2.1.1.

  • Page 14: Operating Data

    ACTIVE WTV: Machine configuration Parameter Description Range Default value Par 09 DC motor encoder error timeout. [msec] 0 - 255 Par 10 FREE Par 11 Driving roller diameter. [mm] 0 - 1000 Par 12 Pulley ratio 0 - 9000 Par 13 Error status on AC motor encoder 0 - 1 To change the setting, press the CHANGE key and insert the value using the numeric keyboard.

  • Page 15: Errors Log

    ACTIVE WTV: Machine configuration MESSAGE ON DISPLAY DESCRIPTION Life AC M: Minutes x 10 of tread belt motor operation Life DC M: Minutes of elevation motor operation Life Kit H: Minutes x 10 of operation of the upper assembly Life Kit L: Minutes x 10 of operation of the lower assembly Tot.
  • Page 16 ACTIVE WTV: Machine configuration Error Error Description code number Overheating of the heat sinks of the AT drive and of the PFC. Overcurrent, even if only transient, on the inverter output. Undervoltage condition, due to an even transient drop in line voltage. Overvoltage.

  • Page 17: Tv Standard

    ACTIVE WTV: Machine configuration 1.2.4. TV S TANDARD This function allows to display/configure the TV Standard on the machine. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen. NTSC M NTSC44 M PAL B/G PAL I...

  • Page 18: Mains Voltage

    ACTIVE WTV: Machine configuration AT drivers for European and US market, use the same SW, nevertheless the first character among the three which identify the SW version, changes according to the HW mounted on the machine. In particular you can find: •...
  • Page 19 ACTIVE WTV: Machine configuration Press the ADDRESS key, insert the desired address and press ENTER to confirm and display the parameter value. Press BACK key to back forward. Press the VALUE key, insert the correct value and press ENTER to confirm the new parameter value.
  • Page 20 ACTIVE WTV: Machine configuration MENU –D– Par. Address Description Value Par. Address Description Value 9 Speed ref D-222 34 An in 3 term mon D-20 57 Actual speed D-300 35 EncPulse/Sample D-21 58 Actual incline user D-301 36 Encoder freq D-22 59 Actual ENC1 pos D-302...
  • Page 21 ACTIVE WTV: Machine configuration MENU –I– Par. Address Description Value Par. Address Description Value 100 Dig input 1 cfg I-313 140 An out 2 filter 101 Dig input 2 cfg I-350 141 Exp an out 1 cfg 102 Dig input 3 cfg I-351 142 Exp AnOut 1 offs 103 Dig input 4 cfg...

  • Page 22: Updown Settings

    ACTIVE WTV: Machine configuration MENU –P– Par. Address Description Value Par. Address Description Value P-45 411 Motor thermal K P-323 458 Autocap f scan P-60 412 V/f shape P-324 459 Autocap V scan P-61 413 Max out voltage P-325 460 Enc for FlyRes P-62 414 Base frequency P-326...

  • Page 23: Read From Low Kit

    ACTIVE WTV: Machine configuration To correctly display the parameter values, you need to load them from the low kit, using the “Read from low kit” function. In addition to the machine usage data, this function also includes the 2 sub-functions described below: 1.2.9.1.

  • Page 24: Recall Parameters

    ACTIVE WTV: Machine configuration 1.4. RECALL PARAMETERS It is possible to restore all the parameters to the values they had at the last save operation. Carry out the operation by setting parameter C-1 (address 801) to “1”, following the detailed instructions provided in paragraph 1.2.8.

  • Page 25: Tv Menu Configuration For 700I E Models

    ACTIVE WTV: Machine configuration 1.6. TV MENU CONFIGURATION FOR 700I E MODELS 1.6.1. UNING CHANNELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below.
  • Page 26 ACTIVE WTV: Machine configuration To tune and memorise a channel, proceed as follow: 1. Select the correct television standard for the country of installation, choosing between all the available options, using the + and – keys in the proper menu. 2.

  • Page 27: Wellness Tv Adjustments

    ACTIVE WTV: Machine configuration 1.6.2. ELLNESS ADJUSTMENTS The keys in the figure at left can perform certain adjustments on the Wellness TV. In particular, it is possible to: 1. Increase or reduce the brightness of the LCD. 2. Increase or reduce the contrast of the LCD. 3.

  • Page 28: Radio Menu Configuration For 700I E Models

    ACTIVE WTV: Machine configuration 1.7. RADIO MENU CONFIGURATION FOR 700I E MODELS 1.7.1. UNING RADIO CHANNELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below.

  • Page 29: Automatic Radio Channel Tuning Procedure

    ACTIVE WTV: Machine configuration To tune and memorise a channel, proceed as follow: 1.7.1.1. Automatic radio channel tuning procedure 1. Press the AUTOMATIC SEARCH button to start automatic scanning of the FM radio band (88 – 108 MHz). During this stage, the channels found will be collected in a temporary listing and visualized in the first column on the left side of the one with the channel numbers.

  • Page 30: Procedure For Manually Entering Radio Channel Frequencies

    ACTIVE WTV: Machine configuration 1.7.1.2. Procedure for manually entering radio channel frequencies 1. Digit the frequency using the keypad. 2. Press ENTER to confirm or DELETE to cancel. 3. Press the number that you want to associate the frequency. If a channel has already been memorised under that number, the old channel will be overwritten with the new one.

  • Page 31: Transferring The Tuning Data

    ACTIVE WTV: Machine configuration 1.8. TRANSFERRING THE TUNING DATA The TV and radio channel tuning data can be transferred from one machine to the other in 2 ways, using a TGS key or connecting two machines using a CSafe connection. NOTE: it is possible to use the above function only if the configuration has been permanently saved in EEPROM.

  • Page 32: Touch Screen Calibration

    ACTIVE WTV: Machine configuration 1.9. TOUCH SCREEN CALIBRATION The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below.
  • Page 33 ACTIVE WTV: Machine configuration Tap the centre of the + which appears on the screen, using an object that is pointed but not sharp. The procedure must be repeated three times, with the + appearing in three different positions. At the end, the message “Calibration successful” will appear if the procedure was correctly carried out, or “Calibration incomplete”...

  • Page 34: Troubleshooting Service Menu For 700 And 900 Models

    ACTIVE WTV: Machine configuration 1.10. TROUBLESHOOTING SERVICE MENU FOR 700 AND 900 MODELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below.

  • Page 35: I2C Device Test

    ACTIVE WTV: Machine configuration 1.10.1. I2C D EVICE The I2C Device test checks the communication following the 32K and 256K memories. The test can have two outcomes: • “Test Successful”: Signifies that data packets were successfully transmitted and received toward the display board. •...

  • Page 36: Updown Test

    ACTIVE WTV: Machine configuration 1.10.5. U The UpDown test checks whether the number of pulses output by the encoder corresponds to the values of the UpDown table stored in the low kit. During the test, the machine incline is moved from 0 to 15% (18% on 900 model) and then back to 3%.
  • Page 38 TECHNOGYM S.p.A. Via G. Perticari, 20 47035 Gambettola (FC) ITALIA Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: service@technogym.com...
