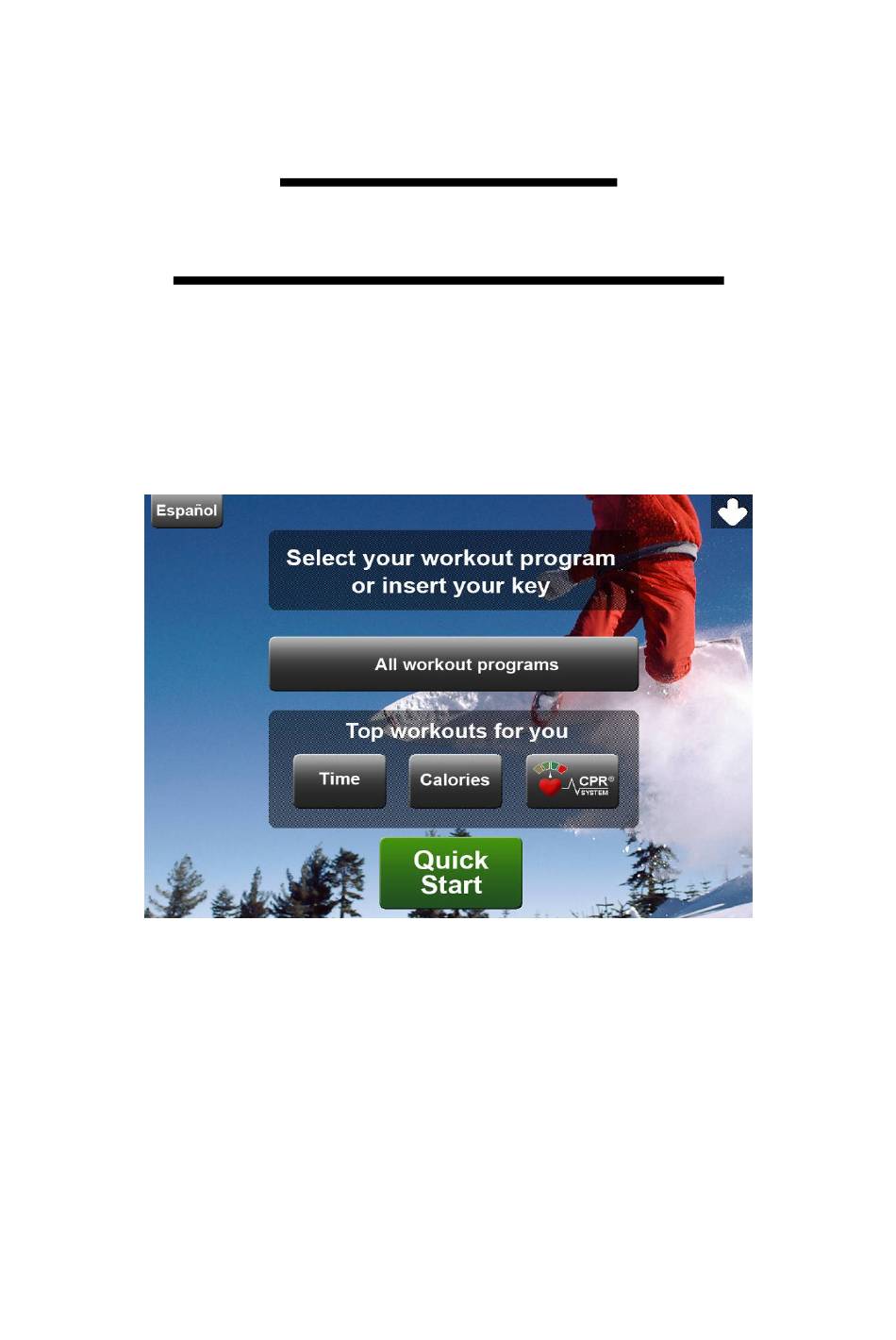

- Page 1 ACTIVE Wellness TV 12” Display Machine configuration...
-
Page 3: Table Of Contents
Contents 1. MACHINE CONFIGURATION....................1 1.1. User menu configuration............................ 1 1.1.1. SN ................................2 1.1.2. Language..............................2 1.1.3. Measure..............................2 1.1.4. Priority ..............................2 1.1.5. Maximum excercise time ........................... 3 1.1.6. Enable TGS ............................... 3 1.1.7. Keys ................................3 1.1.8. Pause time ..............................3 1.1.9. - Page 4 Page intentionally left blank...
-
Page 5: Machine Configuration
To exit the configuration press HOME key. Pressing “HOME” in any page, all changes made up to that moment are saved; you cannot exit without saving. In case of errors the initial Technogym settings can be restored using the “DEFAULT CONFIG.” parameter. -
Page 6: Language
ACTIVE WTV: Machine configuration 1.1.1. In the top right hand corner of the windows it is displayed the SN of the machine, loaded at the end of the production line. 1.1.2. ANGUAGE After selecting a language from the list of those available, all messages subsequently displayed by the machine will be in the chosen language. -
Page 7: Maximum Excercise Time
ACTIVE WTV: Machine configuration 1.1.5. AXIMUM EXCERCISE TIME It is possible to set a maximum duration for the exercise in minutes, with a value ranging from 1 to 9999. To change the setting, press the MODIFY key and insert the value using the numeric keyboard. -
Page 8: Top Exercise Programs For You Shortcut
ACTIVE WTV: Machine configuration 1.1.9. OP EXERCISE PROGRAMS FOR YOU SHORTCUT It is possible to choose 2 extra training programs, from the list of those available, which will be displayed in the main page with the fixed ones “TIME” and “CALORIES”. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen. -
Page 9: Language
ACTIVE WTV: Machine configuration TANDBY TV ON <default> TV OFF Press HOME to confirm and save, FORWARD or BACK to scroll the pages. 1.1.12. L ANGUAGE The machine can be configured to allow selection of the language at each session. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen. -
Page 10: Screen Saver Minutes
ACTIVE WTV: Machine configuration 1.1.16. S CREEN SAVER MINUTES It is possible to configure the amount of time, in minutes, the machine will wait before activating the screen saver, with values ranging from 10 to 360. To change the setting, press the MODIFY key and insert the value using the numeric keyboard. Press ENTER key to confirm or BACK key to back forward. -
Page 11: Standby Channel
ACTIVE WTV: Machine configuration 1.1.19. S TANDBY CHANNEL It is possible to set the channel which is displayed on the TV, when the TV is in standby. To change the setting, press the MODIFY key and insert the value using the numeric keyboard. Press ENTER key to confirm or BACK key to back forward. -
Page 12: Service Menu Configuration
To exit the configuration press HOME key. Pressing “HOME” in any page, all changes made up to that moment are saved; you cannot exit without saving. In case of errors the initial Technogym settings can be restored using the “STANDARD SETTINGS.” parameter. -
Page 13: Low Kit Parameter
ACTIVE WTV: Machine configuration 1.2.1. OW KIT PARAMETER This function provides access to parameters used for modifying certain settings of the lower assembly. To access this menu, when the display shows: In addition to the 13 configuration parameters, this function also includes the 3 sub-functions described below: 1.2.1.1. -
Page 14: Operating Data
ACTIVE WTV: Machine configuration 1.2.2. PERATING DATA This function makes it possible to access the machine usage data stored in the low kit. In addition to the machine usage data, this function also includes the 2 sub-functions described below: 1.2.2.1. Read from low kit To read the parameter values from the low kit memory and view them on the display, press READ FROM LOW KIT key. -
Page 15: Errors Log
ACTIVE WTV: Machine configuration 1.2.3. RRORS LOG This function accesses the machine’s error history log. In addition to the error history log, this function also includes the 3 sub-functions described below: 1.2.3.1. Read from low kit To read the parameter values from the low kit memory and view them on the display, press READ FROM LOW KIT key. -
Page 16: Tv Standard
ACTIVE WTV: Machine configuration 1.2.4. TV S TANDARD This function allows to display/configure the TV Standard on the machine. To change the selection, select the desired option among the ones in the list, directly touching on the Touch Screen. NTSC M NTSC44 M PAL B/G PAL I... -
Page 17: Lub. Dfloors (Only On Step)
ACTIVE WTV: Machine configuration 1.2.6. LUB. DF LOORS ONLY ON This parameter defines the number of floors climbed, to be multiplied by ten, before the chains need to be lubricated again. To change the setting, press the CHANGE key and insert the value using the numeric keyboard. Press ENTER key to confirm or BACK key to back forward. -
Page 18: Tv Menu Configuration For 700I E Models
ACTIVE WTV: Machine configuration 1.3. TV MENU CONFIGURATION FOR 700I E MODELS 1.3.1. UNING CHANNELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below. - Page 19 ACTIVE WTV: Machine configuration To tune and memorise a channel, proceed as follow: Select the correct television standard for the country of installation, choosing between all the available options, using the + and – keys in the proper menu. Press the AUTOMATIC SEARCH button to start automatic scanning of the video bands.
-
Page 20: Wellness Tv Adjustments
ACTIVE WTV: Machine configuration 1.3.2. ELLNESS ADJUSTMENTS The keys in the figure at left can perform certain adjustments on the Wellness TV. In particular, it is possible to: 1. Increase or reduce the brightness of the LCD. 2. Increase or reduce the contrast of the LCD. 3. -
Page 21: Radio Menu Configuration For 700I E Models
ACTIVE WTV: Machine configuration 1.4. RADIO MENU CONFIGURATION FOR 700I E MODELS 1.4.1. UNING RADIO CHANNELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below. -
Page 22: Automatic Radio Channel Tuning Procedure
ACTIVE WTV: Machine configuration To tune and memorise a channel, proceed as follow: 1.4.1.1. Automatic radio channel tuning procedure 1. Press the AUTOMATIC SEARCH button to start automatic scanning of the FM radio band (88 – 108 MHz). During this stage, the channels found will be collected in a temporary listing and visualized in the first column on the left side of the one with the channel numbers. -
Page 23: Procedure For Manually Entering Radio Channel Frequencies
ACTIVE WTV: Machine configuration 1.4.1.2. Procedure for manually entering radio channel frequencies 1. Digit the frequency using the keypad. 2. Press ENTER to confirm or DELETE to cancel. 3. Press the number that you want to associate the frequency. If a channel has already been memorised under that number, the old channel will be overwritten with the new one. -
Page 24: Transferring The Tuning Data
ACTIVE WTV: Machine configuration 1.5. TRANSFERRING THE TUNING DATA The TV and radio channel tuning data can be transferred from one machine to the other in 2 ways, using a TGS key or connecting two machines using a CSafe connection. NOTE: it is possible to use the above function only if the configuration has been permanently saved in EEPROM. -
Page 25: Touch Screen Calibration
ACTIVE WTV: Machine configuration 1.6. TOUCH SCREEN CALIBRATION The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below. - Page 26 ACTIVE WTV: Machine configuration Tap the centre of the + which appears on the screen, using an object that is pointed but not sharp. The procedure must be repeated three times, with the + appearing in three different positions. At the end, the message “Calibration successful” will appear if the procedure was correctly carried out, or “Calibration incomplete”...
-
Page 27: Troubleshooting Service Menu For 700 And 900 Models
ACTIVE WTV: Machine configuration 1.7. TROUBLESHOOTING SERVICE MENU FOR 700 AND 900 MODELS The machine configuration procedure is invoked, when the machine is in standby mode, by pressing the top right hand, the bottom left hand and the bottom right hand corner in sequence, as shown in the picture below. -
Page 28: I2C Device Test
ACTIVE WTV: Machine configuration 1.7.1. I2C D EVICE The I2C Device test checks the communication following the 32K and 256K memories. The test can have two outcomes: • “Test Successful”: Signifies that data packets were successfully transmitted and received toward the display board. •... - Page 30 TECHNOGYM S.p.A. Via G. Perticari, 20 47035 Gambettola (FC) ITALIA Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: service@technogym.com...
