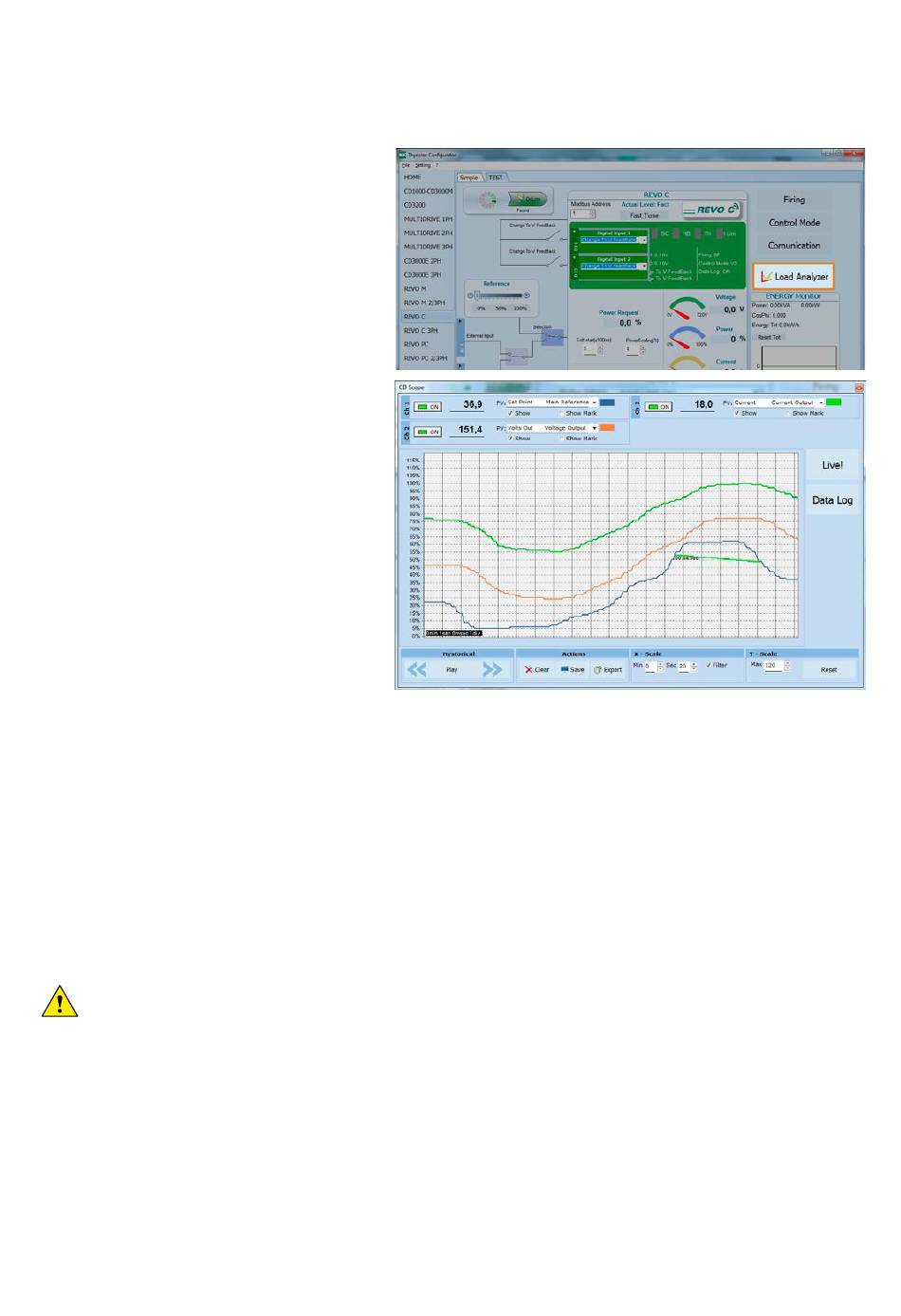

10.6.4. Load Analyzer
Load Analyzer is used for monitoring values graphically represent
Click on Load Analyzer button on the test
page will open Load Analyzer window.
Is possible see 3 channels (Ch 1, Ch 2 and Ch 3).
For each channel confi gure a pen on the graph:
On/Off button: click to start trending data
reading
PV: choose the parameter to trend
Show: set this option to display or hide the
trend
Show Mark: set this option to display data
markers along the trend in the graph area
Live!: click to view a see the current wave
form on a graph.
Data Log: click to open the Data Log
window.
The History options to control the movement
of the chart:
left-click: move the chart left to view
Scroll
more recent data
Stop/Play-click: toggle the live view or
Hystorical view of graphic signal
Scroll right-click: move the chart right to
view older data
The Actions to:
Clear: to clear the data from the graph
Save: to save a JPEG image of the Load Analyzer window with the current trends
Export: to open a window that includes the trend graph and table with the currently displayed data that can
be saved as a JPEG or exported to a CSV fi le.
Use the X – Scale settings to adjust the horizontal (time) axis:
Min: set the minutes of data displayed
Sec: set the seconds of data displayed
Filter: set this option to fi lter the data
Use the Y – Scale settings to adjust the vertical (percent of full scale) axis
Max: set the maximum value for the vertical axis
Reset: click to reset the vertical axis scaling
NOTE! Use the increment (up arrow) and decrement (down arrow) buttons to adjust the x and y scales.
Numeric entry does not allow the full range of values to be set.
