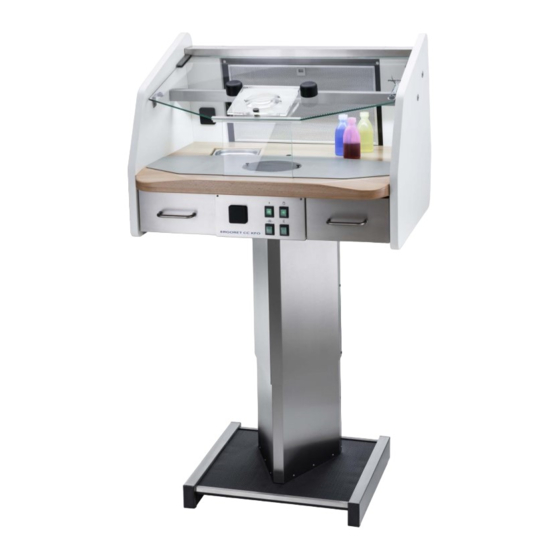

- Page 1 Operating Instructions ERGORET CC KFO (photo shows white unit with Vario-lifting table) REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
- Page 2 Dear Customer! The ERGORET CC KFO has been developed for working in orthodontics practices. A large sieve grid and the integrated extraction system in the rear of the device are used to purposely remove toxic plastic fumes or polymer fumes. The work surface made of high quality wood is designed ergonomically.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE COMPONENTS ......................6 ECHNICAL SAFETY NOTES ......................7 .................... 7 ENERAL AFETY OTES ..................... 8 PECIFIC AFETY OTES INSTALLATION ......................8 ......................8 NSTALLATION ................ -
Page 4: Technical Description
Technical Description Basic Equipment • ERGORET CC KFO benchtop unit, magnifying glass, 4 diopters, internal suction for gases and fumes • ERGORET CC KFO with Vario-lifting table, magnifying glass, 4 diopters, internal suction for gases and fumes Special Accessories •... -
Page 5: Device Components
Device components Protective screen Magnifier with holder Glass cover Lamp Suction socket Socket for Vario-lifting table Socket with flap Socket with flap Filter cover 10 Integrated suction, 3 step variable (for gases and fumes) 11 Opening for tools and equipment 12 Main power switch 13 Lamp switch 14 Internal suction switch... -
Page 6: Technical Data
16 17 Fig.: Device views Technical Data Line voltage 230 V/50–60 Hz Current consumption 120 W Height/width/depth 670/910/860 mm (upper part) Variable working height 880-1100 mm with Vario-lifting table Weight 60 kg (benchtop) + 30 kg (Vario-lifting table) Magnifiying glass 4 diopters Compressed air max. -
Page 7: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 8: Specific Safety Notes
Specific Safety Notes Note: • Disposal of debris from suction: If you should need to dispose of this product please observe local regulations governing disposal. Replace the filter as soon as finest dust or vapor arise during operation (not for flammable dust without MAK/TRK-value) Empty the filter and the tray as soon as grinding chips and dust arise. -
Page 9: Operation
Operation Operating Sequence 1. Turn the main power switch (12) on. 2. Turn on the external suction (21) with switch (15). 3. Turn on upper lamp (4) with switch (13). 4. Turn on the suction (10) with switch (14). With the adjustment knob on the back of the device, you can choose between three extraction levels. -
Page 10: How To Change Filters Of The Integrated Suction
The device should be regularly cleaned with a moist cloth. Note for the Vario-lifting Table Clean and protect your device regularly with the REITEL stainless steel care spray (order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of equipment and to prevent corrosion. -
Page 11: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 12 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 13 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 14: Rules For Disposal
According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Please contact your local dealer for additional information. Spare Parts List Ref. Ergoret CC KFO Qty. Unit without lifting table, Spare parts list E6284700... -
Page 15: Ec Conformity Declaration
EC Conformity Declaration... - Page 16 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
