Summary of Contents for REITEL SONIRET

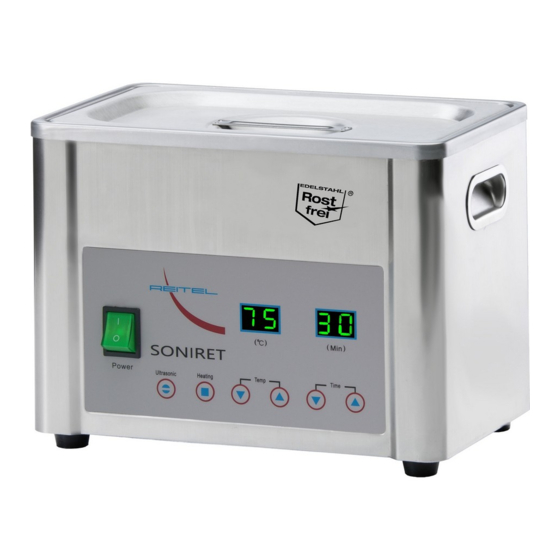

- Page 1 Operating Instructions SONIRET REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
- Page 2 Dear Customer! The ultrasonic unit SONIRET offers a rapid and highly efficient method of precise cleaning of different instruments and objects. Both time and temperature can be set on the control panel. Any other use or usage beyond this scope is considered unintended use. The manufacturer shall not be responsible for any damages that may result thereby.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ......................4 ASIC QUPMENT ....................4 PECIAL CCESSORIES ....................4 PERATING ELEMENTS ......................5 ECHNICAL SAFETY NOTES ......................6 .................... 6 ENERAL AFETY OTES ................. 7 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................8 OPERATION ......................... 8 TROUBLESHOOTING .................... -
Page 4: Technical Description
Technical Description Basic Equpment • Ultrasonic cleaning unit SONIRET • Special Accessories • Order-No.: 20400000 Insert tray, stainless steel • Order-No.: 20401000 Insert tray, plastic • Order-No.: 20402000 Glass beaker, low form with spout and ring • Order-No.: 20403000 Stainless steel positioning cover for beakers and round insert baskets •... -
Page 5: Technical Data
Technical Data Line voltage 230 V/50-60 Hz Current consumption 200 W Tank dimensions (height/width/depth) 100/240/140 mm Device dimensions (height/width/depth) 210/280/190 mm Weight 4,5 kg Frequency 40 KHz ≤ 70 dB(A) Sound level Housing Stainless steel Order-No.: 10200000 Made in Germany (Subject to modifications) -
Page 6: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 7: Specific Safety Instructions
Specific Safety Instructions • The SONIRET Ultrasonic cleaning unit is exclusively destined for cleaning items and must not be operated without liquid in the bath. • Do not pour hot water into the bath. The heating shall only be used for heating cleaning fluid. -
Page 8: Installation
Installation The equipment delivered is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to chapter 2. Operation Note: • Do not permanently operate the unit at max. temperature. •... -
Page 9: Troubleshooting
Regularly check the bottom plate of the cleaning tank for leaks. Note Clean and protect your device regularly with the REITEL stainless steel care spray (order-no.: 90405000), to remove lime, plaster and dust as well as other contaminants from the surface of equipment and to prevent corrosion. The spray creates a lasting,... -
Page 10: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorised distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 11 − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 12 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 13: Rules For Disposal
Rules for Disposal According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Please contact your local dealer for additional information Spare parts list Best.-Nr.: Menge Ref.: Qty. Unit E6296810 Frontfolie selbstklebend / Self adhesive front foil St./pc. -
Page 14: Ec-Conformity Declaration
EC-Conformity Declaration... - Page 16 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
