- Page 1 Operating Instructions POLIRET TWIN Fig.: with optional speed control REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

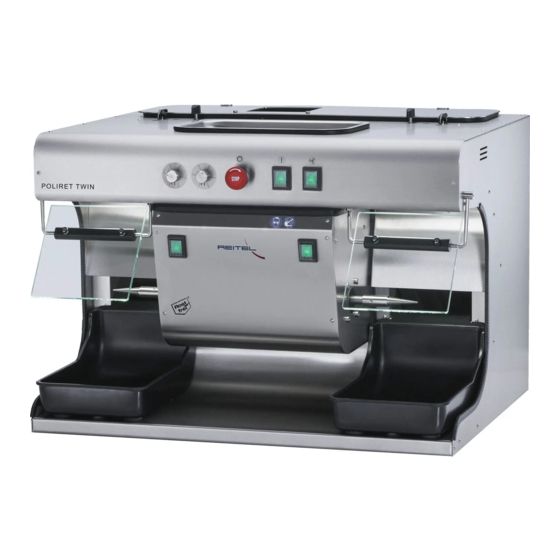

- Page 2 Dear Customer! The POLIRET TWIN is a powerful stainless steel polishing unit with two spindles and two maintenance-free motors. Separate stainless steel spindle speed control. The comfortable housing width enables working on both sides. Variable speed control 270 - 4.500 rpm – thus speed is perfectly adapted to your requirements.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 EVICE OMPONENTS ......................7 ECHNICAL SAFETY NOTES ......................8 .................... 8 ENERAL AFETY OTES ................. 9 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................10 ......................10 NSTALLATION ......................10 SSEMBLY OPERATION ........................10 ................10 HRONOLOGICAL RUN OF OPERATION... -
Page 4: Technical Description
Technical Description Basic Equipment • POLIRET TWIN polishing unit • Right and left polishing spindle • 2 filter bags Special Accessories • Order-No. 24800000 Vario–lifting table • Order-No. 22603000 Workholding fixture for polishing and grinding tools ´ incl. drill chuck •... -
Page 5: Device Components
Device Components Left locking screw Left ventilation flap open/shut Speed control left polishing motor Speed control right polishing motor Left safety panel Left polishing spindle Switch left polishing motor Switch right polishing motor Right locking screw 10 Right ventilation flap open/shut 11 Emergency stop button 12 Suction switch 13 Power switch... - Page 6 Device view Lateral view Air sheet Interior of the unit...
-
Page 7: Technical Data
Technical Data Line voltage 230 V/50–60 Hz Power consumption motor 2x370 W Power consumption suction 400 W Height/width/depth 500+100/730/560 mm Weight 60 kg 270 – 4.500 rpm Variable speed Suction 800 m³/h ≤ 70 dB(A) Sound level Housing stainless steel Order-No.: 12703000 Made in Germany (Subject to modifications) -
Page 8: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 9: Specific Safety Instructions
Specific Safety Instructions Attention: • Wait for at least 2 min. before unplugging the mains plug for cutting off the device from the domestic supply line in order to unload the condensers. • The tool must be securely fastened to the spindle. Danger of injury! •... -
Page 10: Installation
Installation The equipment is delivered ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to chapter 2. Installation For extract air and filter change save a minimum space of 20 cm above the device. Connect to the power supply. -
Page 11: Filter Replacement
4. After approx. 8 sec. the power switch can be turned on and the two polishing motors can be activated. Filter Replacement 1. Unscrew the fixing screws (1) and (9) on top of the device and remove the cover (16). 2. -
Page 12: Troubleshooting
Troubleshooting Unit does not start. a. Emergency stop activated. Release it by turning it to the right (see chapter 4.2). b. Motor switch was turned on when starting main switch → turn off motor- switch and start again c. wait approx. 2 sec. between main switch and motor switch to turn on. -
Page 13: Maintenance
Maintenance • Regularly check the state of the device. Pay attention to visible damage of the housing or power cords. • Regularly clean dirty tools or polishing troughs (21). • Regularly replace blunt or defective tools. • Regularly replace or wash the filter bag (22) (see chapter 4.2 filter replacement). -
Page 14: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 15 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 16 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 17: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Pls. contact your local dealer for additional information. -
Page 18: Spare Parts List
E61453-E Polierspindel POLIRET / E aktuell, zylindrisch, bitte Gerätenummer Stck angeben), li oder re piece E6145300 Polierspindel POLIRET TWIN, zylindrisch Stck Polishing spindle POLIRET TWIN, cylindric, li oder re piece E6152700 Prallschutz ( 2 Stück/Satz ) Satz Baffle absorber 2 pcs./pack E6064800 Schalter mit Lampe grün... -
Page 19: Ec Conformity Declaration
EC Conformity Declaration... - Page 20 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
