- Page 1 Operating Instructions BIOSTEAM CENTER REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...

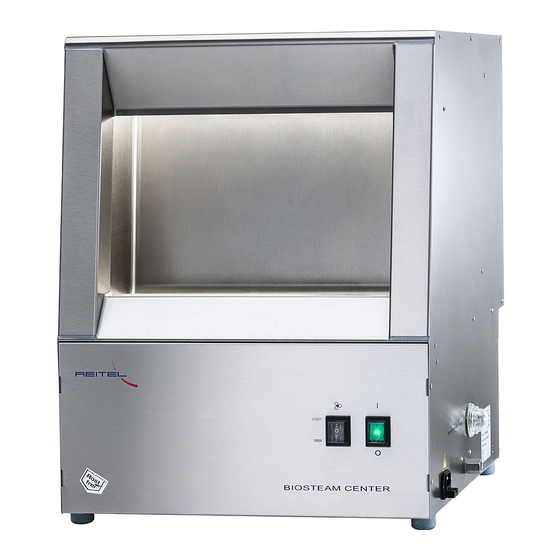

- Page 2 Dear Customer! The BIOSTEAM CENTER is perfectly suited for steam cleaning workpieces. It can be activated either manually or with the foot pedal included in delivery. The wide opening and integrated illumination ensure comfortable working conditions. Steam is absorbed at the back of the steam center and condenses in the special filter, offering a clear view for the user.
-
Page 3: Table Of Contents
CONTENTS TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 PERATING LEMENTS ......................8 ECHNICAL SAFETY NOTES ......................9 .................... 9 ENERAL AFETY OTES ................10 PECIFIC AFETY NSTRUCTIONS EQUIPMENT ........................11 NOTES FOR THE USER ....................11 ......................11 NSTALLATION ........................11... -
Page 4: Technical Description
Technical Description Basic Equipment • Steam Center with suction, drain hose, fleece filter (fitted), steam check valve (ball valve), foot pedal, power connection and working lamp Special Accessories • Order-No.: 20109 Activated carbon filter... -
Page 5: Operating Elements
Operating Elements Housing Power switch Selector switch Lamp (inside) Drip tray (with fleece inlay) and access to filter cassette (14) Foot pedal connection (left side of the housing) Water level control Outlet (optionally left or right) Device fuse (2 pieces 3,15 A in electrical outlet under cap) 10 Electrical connection 11 Footswitch 12 Exhaust fan cover with exhaust air filter... - Page 6 Lateral view Footswitch Device backside Exhaust fan...
- Page 7 Filter cassette for condenser Fleece inlay...
-
Page 8: Technical Data
Technical Data Line voltage 230 V/50–60 Hz Current consumption 200 W Height/width/depth 600/540/510 mm Weight 35 kg Suction power 1.860 m³/h Sound level 77 dB(A) Housing Stainless steel Order-No.: 10106 Made in Germany (Subject to modifications) -
Page 9: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 10: Specific Safety Instructions
Specific Safety Instructions Note: • Ensure a minimum distance of 25 cm between back of the device and the wall. • Keep housing dry and clean. • Always respect the instructions for your steam cleaner. • Always respect manufacturer’s instructions when using germ-restraining cleaning additives. -
Page 11: Equipment
Equipment The equipment delivered is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to chapter 2. Notes for the User Installation Make electrical connections. Install the drain hose. (Install 30 mm hose to the end of the outlet (8) and position the end of the hose under water in a receptacle or install hose with closed ball valve that is only opened for draining off water.) Plug the cable of the foot pedal (11) into the outlet (6) and position it at an accessible... -
Page 12: Troubleshooting
Troubleshooting Device cannot be switched on. a. Check fuse of the building. b. Check device’s fuse (9). Fan doesn’t work. Check foot pedal. Turn device on by activating selector switch MAN. Lamp (4) doesn‘t shine. Defective lamp replace it. Insufficient suction power. -
Page 13: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 14 REITEL Feinwerktechnik GmH; The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 15 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 16: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – Regulations for proper disposal. Pls. contact your local dealer for addtional information. -
Page 17: Spare Parts List
Spare Parts List Z.-Nr.: Best.-Nr.: Menge Dr.-No.: Ref.: Qty. Unit E76019 Absauggebläse / Suction fan St./pc. Aktivkohlefilter (Nachrüstung ab Geräte No. 281 20109 möglich) / Activated carbon filter St./pc. Nachrüstsatz LED-Leuchte, inkl. Einbauanleitung, Adapterplatte und Blende / Update mounting set to E73362 LED light Satz/set... -
Page 18: Ec-Conformity Declaration
EC-Conformity Declaration... - Page 20 We manufacture in compliance with Quality Management ISO 9001:2008 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...
