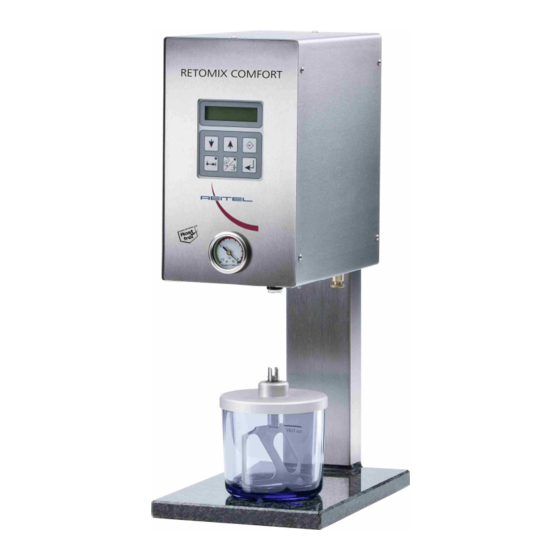

  • Page 2 Dear Customer! The RETOMIX COMFORT vacuum mixer offers a high degree of user-friendliness with programmable timing system that saves you having to check the mixing procedure each time. The vacuum mixer employs a vacuum that yields homogenous and bubble-free compounds. Pre- and main mixing time can be programmed individually with adjusted speed according to applied material.
  • Page 3: Table Of Contents

    CONTENTS EQUIPMENT ......................... 4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES SAFETY INSTRUCTIONS ..................... 5 ................. 5 ENERAL AFETY NSTRUCTIONS ................. 6 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................7 ......................7 NSTALLATION ......................7 ONTROL PANEL NOTES FOR THE USER ....................8 ......................
  • Page 4: Equipment

    Equipment Basic Equipment • RETOMIX COMFORT Vacuum mixer with wall holder • 1 Mixing bowl 400 ml • Cable Special Accessories • Order-No. 23701 Table stand • Order-No. 21302.1 Mixing bowl 75 ml • Order-No. 21302 Mixing bowl 150 ml •...
  • Page 5: Safety Instructions

    Safety Instructions General Safety Instructions • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately.
  • Page 6: Specific Safety Instructions

    Specific Safety Instructions • Don’t mix any material used for purposes other than intended or material containing solvents, dangerous to health. • The pump and other conducting components are not explosion-proof. Application with burnable substances is therefore prohibited. • Don’t use any high-viscosity material leading to a considerable decrease in mixing speed. •...
  • Page 7: Installation

    Put the connector into the outlet (6) of the unit. Put the power plug of the RETOMIX COMFORT into a socket. Now the device is ready for use. During long periods of non-use disconnect the device from mains supply.
  • Page 8: Notes For The User

    Notes for the User Programming Target Action Explanation Switch on device Turn main switch on (4) Green illuminated display shows the Software version Use any key to continue The first program no. appears on the display. Keep button pressed during 2- Open program menu Cursor jumps to the first 3 seconds...
  • Page 9: Chronological Run Of Operation

    Chronological run of operation Turn on main power switch (4). Green illuminated display shows the Software version. Press any key to remove the version number. Program selection is performed as follows: a. Select program: − Briefly press − The cursor jumps to the first program number and flashes b.
  • Page 10 Start mixing with pre-evacuation (alternative): Press as for required vacuum and then . Pay attention to gauge display (2). If the vacuum is below 0,4 bar the bowl has to be held tight. When mixing is completed an acoustic signal is perceptible. −...
  • Page 11: Mixing Bowl For Alginates (Special Accessories)

    Mixing bowl for alginates (special accessories) In order to prevent power residues from falling from the rim of the bowl into the mixed alginate, first of all water and power should be premixed manually without vacuum. Put power and water into the bowl, mixing it with reduced vacuum (Procedure see chapter 4.2.) Mixing time is dependent on used material (see manufacturer’s indications).
  • Page 12: Troubleshooting

    Troubleshooting Device doesn’t work after turning it on. a. No power at the socket (check fuse for (Display doesn’t shine after turning the the building). device on). b. Machine’s fuse (5) has blown (Unplug the machine and replace the fuse. The fuse holder is located at the device’s plug).
  • Page 13: Maintenance

    Maintenance • Please check the device regularly for damages. Pay attention to visible damages at the housing or cable. • Regularly clean gasket and sealing rim of the mixing bowl (10) and bowl holder (7). • Regularly grease the mixing bowl to keep it in good condition. •...
  • Page 14: Warranty

    Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship.
  • Page 15 REITEL Feinwerktechnik GmbH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
  • Page 16 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
  • Page 18: Rules For Disposal Of Commercial Electrical Equipment

    Rules for Disposal of Commercial Electrical Equipment According to valid laws our devices are correctly disposed of according to B2B – Regulations for proper disposal. Pls. contact your local dealer for additional information. Technical Data Line voltage 230V/50–60 Hz Current consumption 420 W Height/width/depth 290/155/285 mm...
  • Page 19: Operating Elements

    Operating Elements Control panel with display Gauge Filter Power switch Device fuse Outlet for connector Bowl holder Vacuum pump switch Vacuum reduction valve 10 Mixing bowl...
  • Page 21: Spare Parts

    Spare Parts Dr.- No.: Order-No.: Unit E70117 Bowl holder gasket piece E70112 Filter (5 pcs./pack) Pack...
  • Page 22: Wall Mounting

    Wall-Mounting Pay attention to dimensons! Display ratio is not 1:1!
