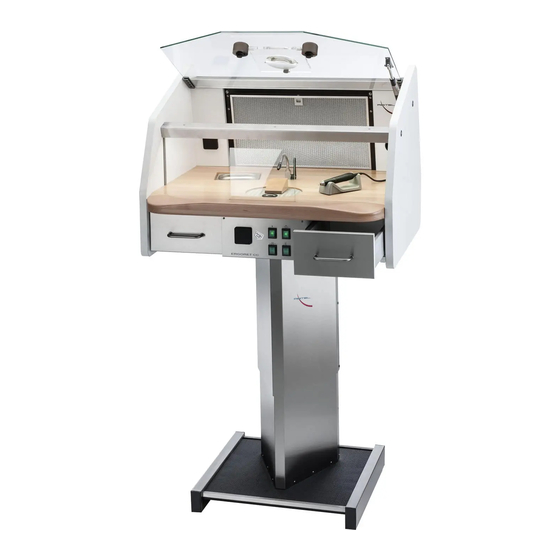

Dear Customer! Der ERGORET CC ergonomic workstation, along with the Vario lifting table, reduces lengthy procedures by offering best conditions to minimise strain and tiredness. Potentially detrimental waste, dust, gases and fumes which arise from grinding, glueing devesting, trimming and other operations can be safely extracted (photo shows white unit with Vario lifting table).
Technical Description Basic Equipment • ERGORET CC benchtop unit, magnifying glass, 4 diopters, internal suction for gases and fumes • ERGORET CC with Vario-lifting table, magnifying glass, 4 diopters, internal suction for gases and fumes...
Device components Magnifier with holder Lamp Glass cover Suction socket Socket for Vario-lifting table Lever for blast nozzle (ball valve with black lever) Socket with flap Socket with flap Filter cover 10 Integrated suction, 3 step variable (for gases and fumes) 11 Opening for tools and equipment 12 Main power switch 13 Lamp switch...
Technical Data Line voltage 230 V/50–60 Hz Current consumption 120 W Height/width/depth 670/910/860 mm (upper part) Variable working height 880-1180 mm with Vario-lifting table Weight 60 kg (benchtop)+30 kg (Vario-lifting table) Magnifiying glass 4 diopters Compressed air max. 8 bar ≤...
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately.
Specific Safety Notes Note: • Disposal of debris from suction: If you should need to dispose of this product please observe local regulations governing disposal. Replace the filter as soon as finest dust or vapor arise during operation (not for flammable dust without MAK/TRK-value) Empty the filter and the tray as soon as grinding chips and dust arise.
Installation The equipment delivered is ready for immediate use. The sealed plug can be connected directly to the mains supply 230 V / 16 A. For installation, please refer to chapter 2. Installation 1. If the Vario lifting table is included, screw the upper part of the unit onto the Vario lifting table.
Operation Operating Sequence 1. Turn the main power switch (12) on. 2. Turn on the external suction (21) with switch (15). 3. Turn on upper lamp (2) with switch (13). 4. Turn on the suction (10) with switch (14). With the adjustment knob on the back of the device, you can choose between three extraction levels.
How to change filters of the integrated suction 1. To open the filter grid put the two shutter sliders down. 2. Fold the filter grid down. 3. Press the ends of the wire bow outwards and take them off the top. 4.
The device should be regularly cleaned with a moist cloth. Note for the Vario Lifting Table Clean and protect your device regularly with the REITEL stainless steel care spray (order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of equipment and to prevent corrosion.
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship.
Page 16
REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
Page 17
Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
Rules for disposal According to valid laws our devices are properly disposed of according to B2B – regulations for proper disposal. Please contact your local dealer for additional information. Spare Parts List Best.-Nr.: Menge Ref.: Qty. Unit E6187700 Dichtung Sealing E6249110 Feilkloben Buche ohne Absaug-Löcher Stck...
