- Page 1 Operating Instructions ERGORET CLASSIC REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Tel.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

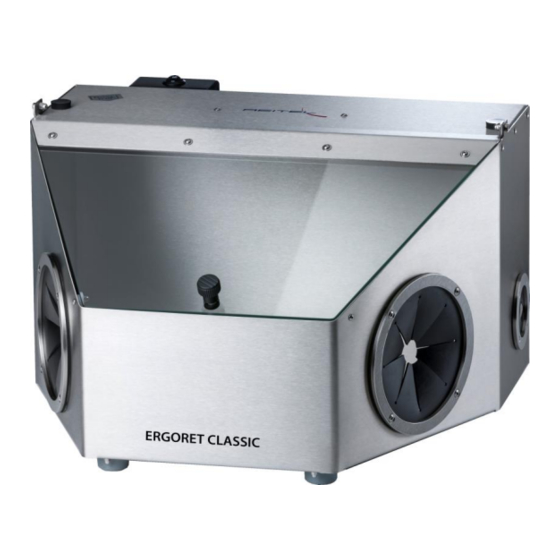

- Page 2 Dear customer! The ERGORET CLASSIC workstation keeps the water and dirt in a closed system while working with zirconia or other materials. The hood made of stainless steel and safety glass is used in the processing of gypsum, plastic, metal alloys and prevents flying grinding chips around.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC EQUIPMENT ....................5 EVICE COMPONENTS ......................7 ECHNICAL DATA SAFETY NOTES ......................7 .................... 7 ENERAL AFETY OTES ..................... 8 PECIFIC AFETY OTES INSTALLATION ......................8 ......................8 NSTALLATION ..............9 HANGING COLLAR OF HAND THROUGHPUT OPERATION ......................... -
Page 4: Technical Description
Technical description Basic equipment • Workstation ERGORET CLASSIC incl. lighting • Adapter for suction hose • External power supply... -
Page 5: Device Components
Device components Lid opener Glass lid (safety glass) Hand-throughput (collar with trim ring) Opening for handpiece (collar with trim ring) Fixing screws of the openings Trim ring Main switch Connection for external power supply Power supply 10 LED lamp (inside the housing) 11 Suction tube Fig.: Side view Fig.: LED lamp... - Page 6 Fig.: Rear view...
-
Page 7: Technical Data
Technical data Line voltage 230 V/50–60 Hz Current consumption 26 W Height / Width / Depth 260+240/460/430 mm Weight 8 kg ≤ 70 dB(A) Sound level Housing Stainless steel Order-No.: 16901001 Made in Germany (Subject to modifications) Safety Notes General Safety Notes •... -
Page 8: Specific Safety Notes
• If the machine is defective or working improperly it must be taken out of service. In case of further use of the machine the owner will be held responsible for any consequential damage. • To prevent accidents from water, fire or explosion, all power/air/water/gas sources should be turned off after working hours and during breaks, and secured against unauthorized access. -
Page 9: Changing Collar Of Hand-Throughput
(see chapter 2.2) Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment and to prevent corrosion. The spray... -
Page 10: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 11 REITEL Feinwerktechnik GmH; The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 12 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a fee may be charged for loan...
-
Page 13: Disposal Regulations
Disposal Regulations According to valid regulations our devices are properly disposed of according to B2B – Regulations for proper disposal. Please contact your local dealer for further information. Spare parts list Best.-Nr. Stck/ME Reference Qty. Unit E7219200 Dichtung Handdurchführung (Set) 2 Stck Sealing for hand insert piece... -
Page 14: Ec Conformity Declaration
EC Conformity Declaration... - Page 16 We manufacture in compliance with Quality Management ISO 9001:2015 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Tel.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
