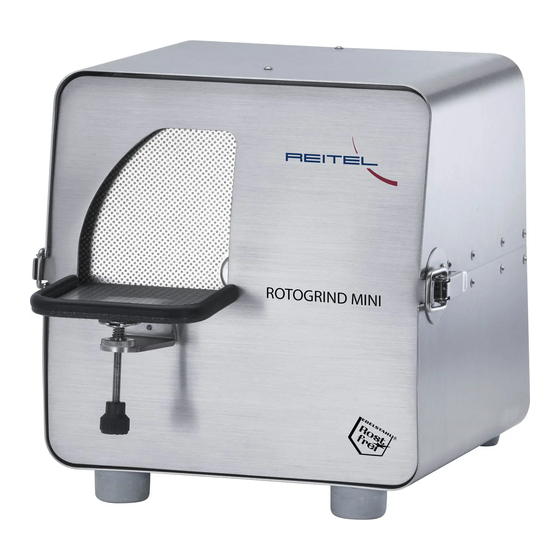

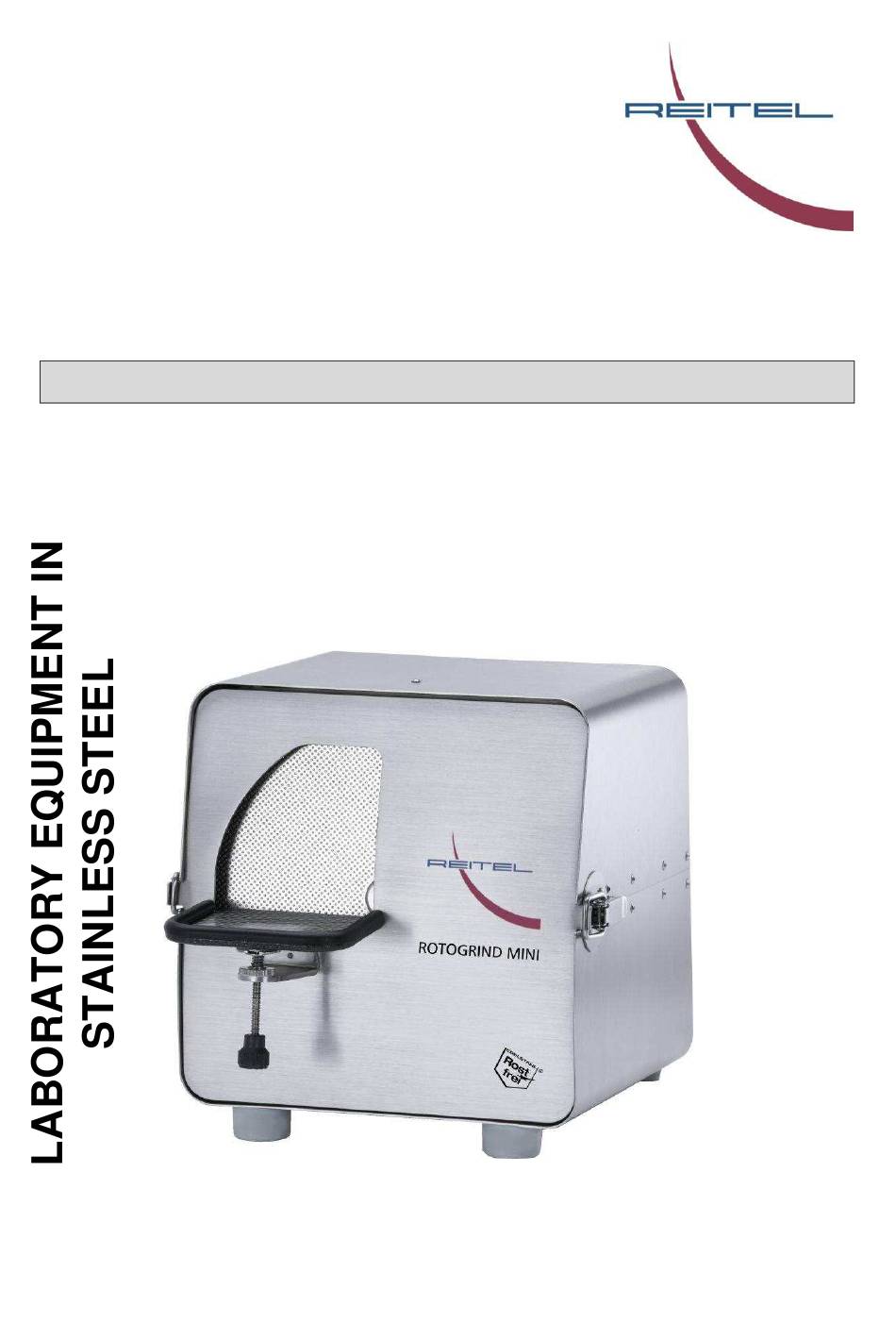

- Page 1 Operating Instructions ROTOGRIND MINI REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...
- Page 2 Dear Customer! The wet trimmer ROTOGRIND MINI is characterised by a particularly favourable price- performance ratio. The powerful motors provides a precise finish with high surface quality. The stainless steel housing is extremely robust and durable. For safety reasons the device is equipped with a safety fuse in case of power failure.
-
Page 3: Table Of Contents
CONTENTS TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL QUIPMENT ....................5 EVICE DESCRIPTION ......................7 ECHNICAL SAFETY NOTES ......................8 .................... 8 ENERAL AFETY OTES ..................... 9 PECIFIC AFETY OTES INSTALLATION ......................10 ......................10 NSTALLATION ..................10 HANGING A GRINDING DISC OPERATION ........................11 ................11 HRONOLOGICAL RUN OF OPERATION... -
Page 4: Technical Description
Technical Description Basic Equipment • Wet trimmer ROTOGRIND MINI • Allen key, size 2,5 for quick release fixing screws and size 4,0 for disc change • Inlet and outlet hose Special Equipment • Order-No.: 20301 Silicon carbide grinding disc •... -
Page 5: Device Description
Device description Grinding disc (photo shows order-no.: 23301 diamond grinding disc PW) Tray table Height fastener (with knurled nut) (4a und 4b) quick releases Front Water outlet (photo without hose) Water supply Power switch Power connector 10 Rubber feet 11 Rubber feet... - Page 6 Device view Lateral view Lateral view...
-
Page 7: Technical Data
Technical Data Line voltage 230 V/50–60 Hz Current consumption 1.300 W Height/width/depth 310/310/400 mm Weight 20 kg Speed 3.000 rpm Disc diameter 250 mm Sound level ≤ 70 dB(A) Housing Stainless steel Order-No.: 13400 Made in Germany (Subject to modifications) -
Page 8: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 9: Specific Safety Notes
Only change the grinding disc when it stands still and the whole unit is unplugged. • Only use original REITEL grinding discs – with an outer diameter of 250 mm. Using grinding discs supplied by other manufacturers will render our warranty null and void with immediate effect. -
Page 10: Installation
Installation The electric equipment is being delivered fully installed. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Installation 1. Attach supplied hose to water inlet (7) fastening it with the hose clamp included in delivery. -
Page 11: Operation
Operation Chronological run of operation 1. Turn power switch (8) on. 2. Adjust inclination angle of the tray table (2) with height fastener (3). Secure height fastener by turning the knurled nut upwards. 3. Put the model to be worked on the tray table (2) and press it against the rotating disc (1). It’s prohibited to use the trimmer with inadmissible material. -
Page 12: Troubleshooting
Regularly check the appliance for visible damage to the housing or power cord. • Clean the front and inner grinding area once a week (see chapter 4.2 cleaning). • Clean the housing regularly with a damp cloth and use REITEL stainless steel care spray. -
Page 13: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 14 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 15 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 17: Disposal Regulations
Disposal Regulations Disposal of our devices once you’ve finished with them in accordance with the local regulations. For further information please contact your distributor. -
Page 18: Spare Parts List
Spare Parts List Z.-Nr.: Best.-Nr.: Menge ME E60145 Ablaufschlauch / Drain hose E60142 Achsabdichtung Gummi / Rubber axis seal St./pc. E79109 Anlagenaufnehmer / Disc support adapter St./pc. Auflagetisch mit Kantenschutz / Table with edge E79146.2 protection St./pc. E78134 Dichtungsprofil / Seal profile E79145 Front komplett / Complete front St./pc. -
Page 19: Ec-Conformity Declaration
EC-Conformity Declaration... - Page 20 We manufacture in compliance with Quality Management ISO 9001:2008 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...
