- Page 1 Operating Instructions POLIRET MINI REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...

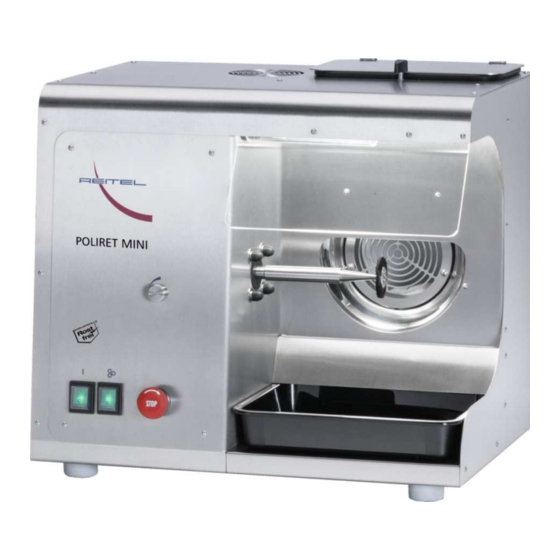

- Page 2 Dear Customer! The POLIRET MINI is a compact polishing unit with a powerful motor. It has a right mounted spindle and is suitable for grinding, polishing, cleaning and brushing metal and plastic materials. Excellent results and high efficiency are achieved by the fully adjustable speed control from 0 bis 4.500 rpm.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................4 EVICE OMPONENTS ......................5 ECHNICAL SAFETY NOTES ......................6 .................... 6 ENERAL AFETY OTES ..................... 7 PECIFIC AFETY OTES INSTALLATION ......................8 ......................8 NSTALLATION ...................... -
Page 4: Technical Description
Technical Description Basic Equipment • Polishing unit POLIRET MINI with polishing spindle, working lamp and filter bag Special Accessories • Order-No.: 24800 Vario Lifting table • Order-No.: 22603 Workholding fixture incl. drill chuck • Order-No.: 22702.1Filter bag with zipper Device Components... -
Page 5: Technical Data
Interior of the unit Technical Data Line voltage 230 V/50–60 Hz Motor power 600 W Suction power 115 W Height/width/depth 430/530/400 mm Weight 24 kg Continuous speed 0–4.500 rpm Suction 500 m³/h Sound level ≤ 70 dB(A) Housing Stainless steel Order-No.: 11000 Made in Germany (Subject to modifications) -
Page 6: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 7: Specific Safety Notes
Specific Safety Notes Note: • The tool must be securely fixed to the spindle, otherwise there is the risk of injury! • Operation at too high motor speed poses a risk of burns! • Keep the housing dry and clean. •... -
Page 8: Installation
Installation The electrical equipment is being delivered fully installed. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to Safety Notes in chapter 2. Installation Leave enough space (at least 20 cm) to accommodate exhaust. Stellen Sie die Stromversorgung her. -
Page 9: How To Change The Filter
How to change the filter 1. Remove fixing screw (8) on top of the device and remove cabinet cover. 2. Release clamping ring (11) to remove the old filter bag (10). 3. Empty the filter bag and if necessary wash it (machine wash at 60°C). 4. -
Page 10: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 11 REITEL Feinwerktechnik GmH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 12 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 13: Disposal Regulations
Disposal Regulations According to valid regulations our devices are properly disposed of according to B2B – Regulations for proper disposal. For further information please contact your local dealer. -
Page 14: Spare Parts List
Spare Parts List Z.-Nr.: Best.-Nr.: Dr.-No.: Ref.: Qty. Unit E63367 Ablageschale Kunststoff schwarz / Black plastic tray St./pc. E62467 Arbeitsleuchte komplett / Complete working lamp St./pc. Dichtung für Polierspindel / Sealing for polishing E61349.1 spindle St./pc. Drehknopf für Motordrehzahl / Rotary button for motor E70122 speed St./pc. -
Page 15: Ec-Conformity Declaration
EC-Conformity Declaration... - Page 16 We manufacture in compliance with Quality Management ISO 9001:2008 incorporating established process standards. REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...
